Evaporative Emission Control Canister: Service and Repair
CANISTERA: REMOVAL AND INSTALLATION
1) Lift-up the vehicle.

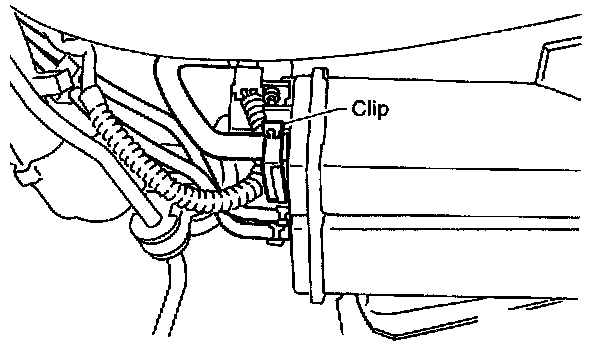

2) Remove clip.
3) Remove clip, and disconnect evaporation hoses from canister.

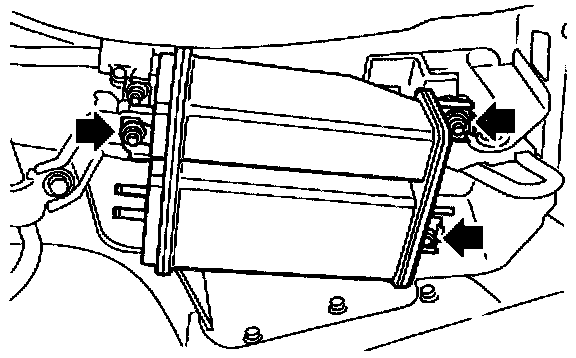

4) Remove canister from body.
5) Installation is in the reverse order of removal.
Tightening torque: 23 ± 7 N.m (2.3 ± 0.7 kg-m, 16.6 ± 5.1 ft-lb)
