No Trouble Code - on Select Monitor Display, Warning Light on.

DIAGNOSIS:
- ABS warning light circuit is shorted.

TROUBLE SYMPTOM:
- ABS warning light remains on.
- NO TROUBLE CODE displayed on the select monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.

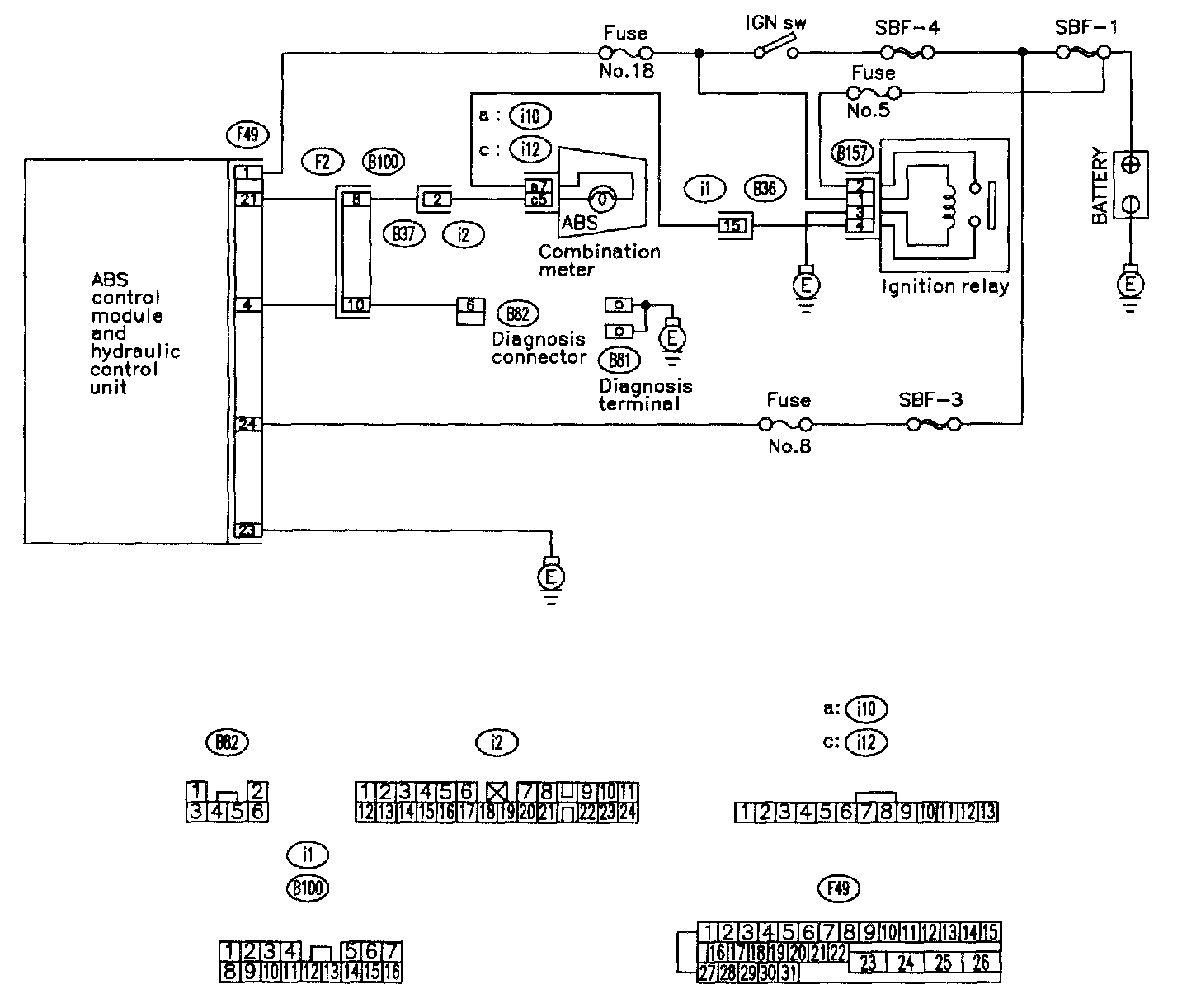

WIRING DIAGRAM

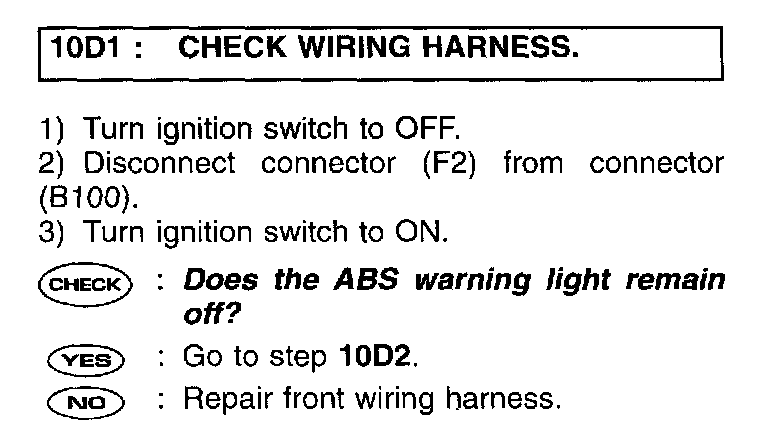

10D1:

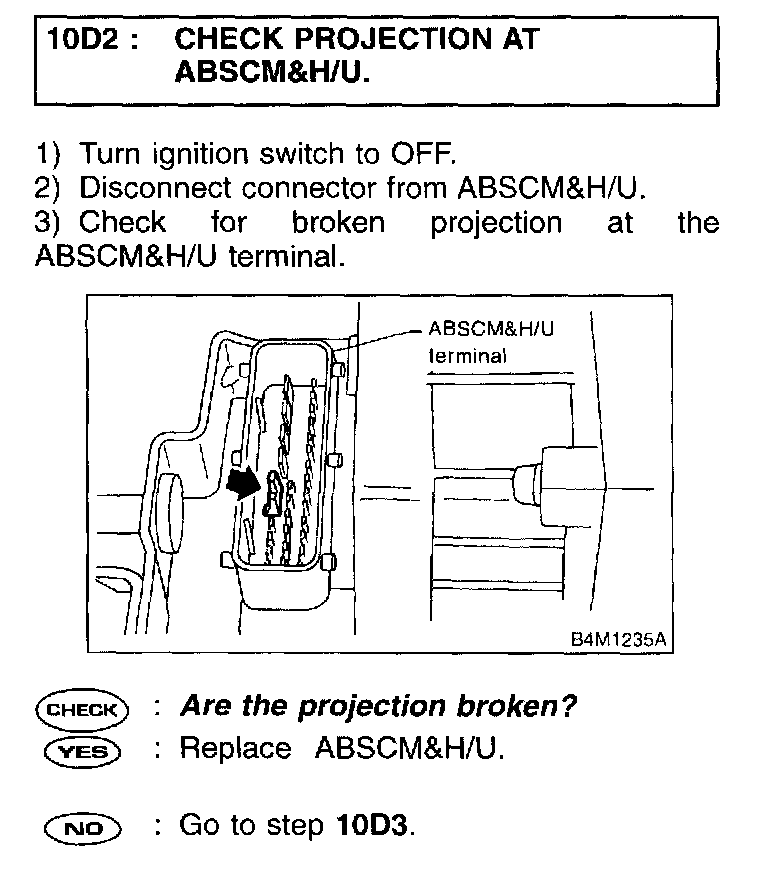

10D2:

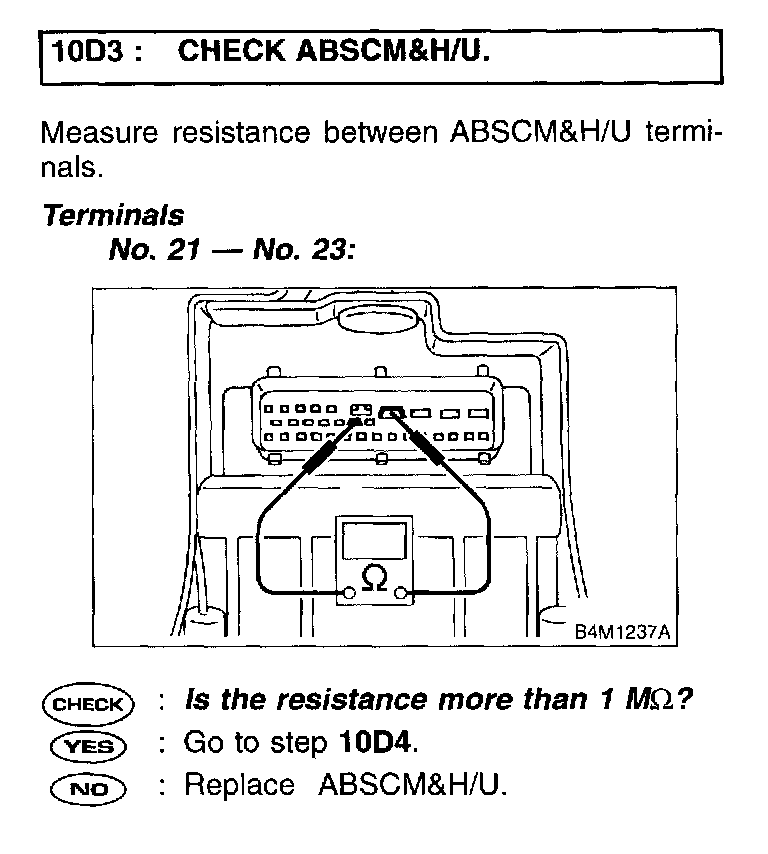

10D3:




10D4:

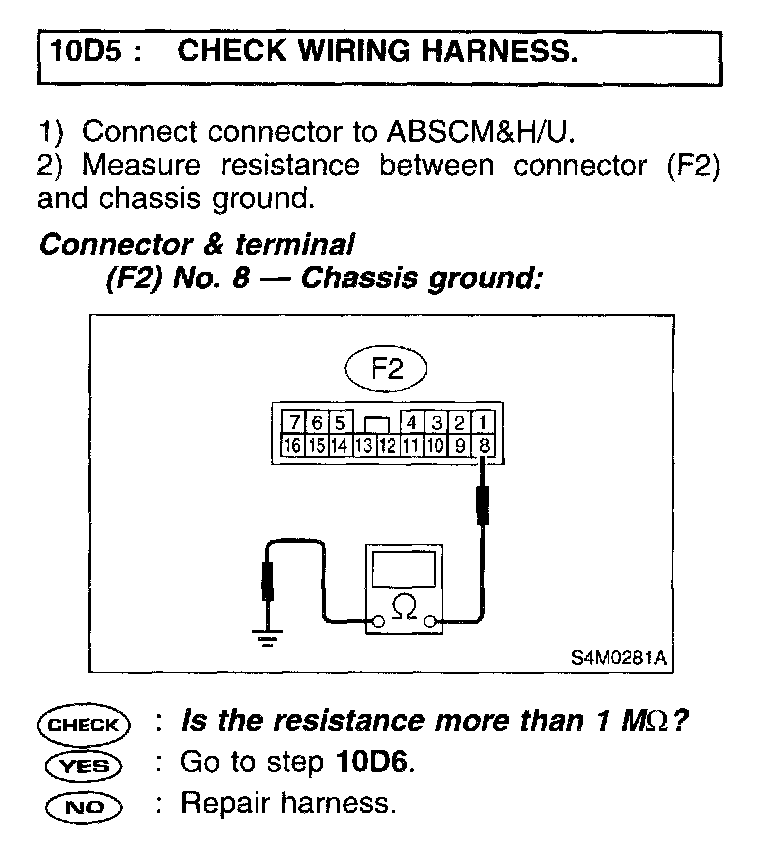

10D5:

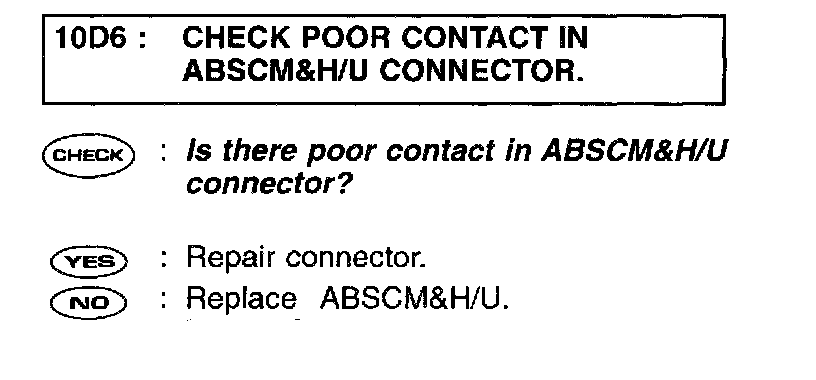

10D6:

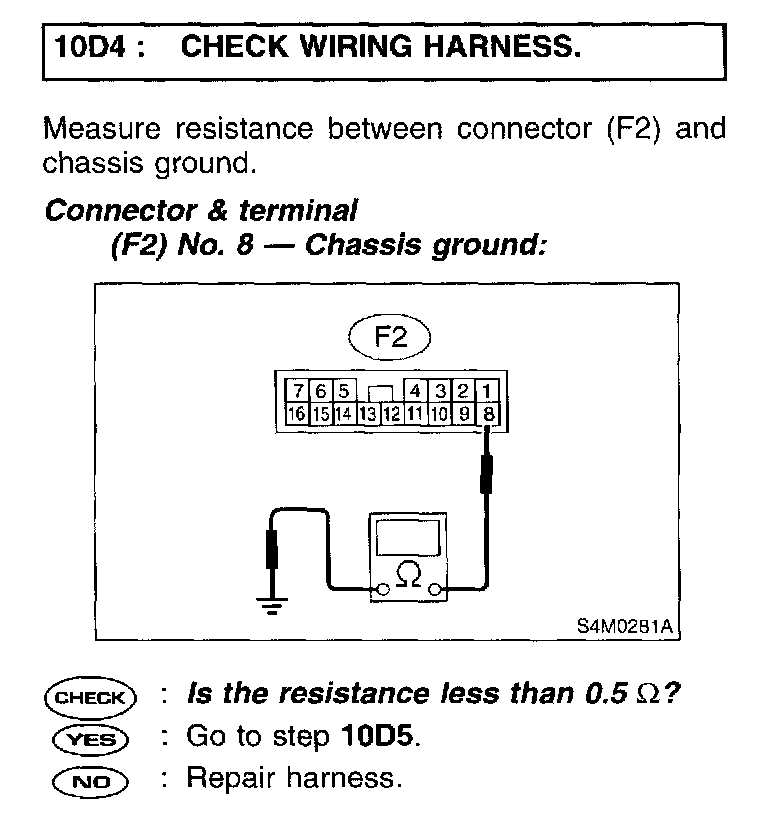

INSPECTION PROCEDURES
