Condenser Fan: Service and Repair
Condenser Fan1. Disconnect battery negative terminal.

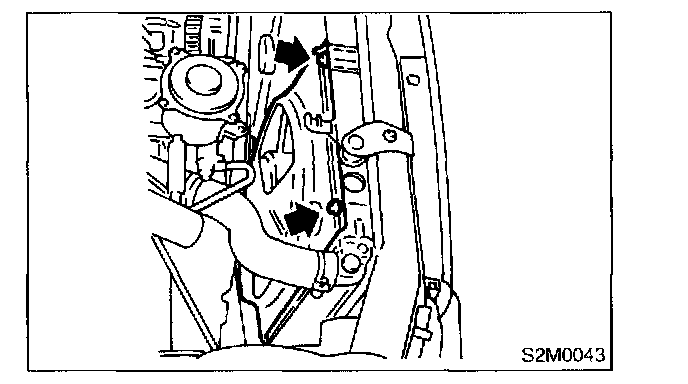

2. Disconnect harness connector from fan motor.
3. Remove condenser fan bolt from radiator.
4. Pull condenser fan assembly.
5. Install the condenser fan assembly in the reverse order of removal.
