Warning and Indicator Light

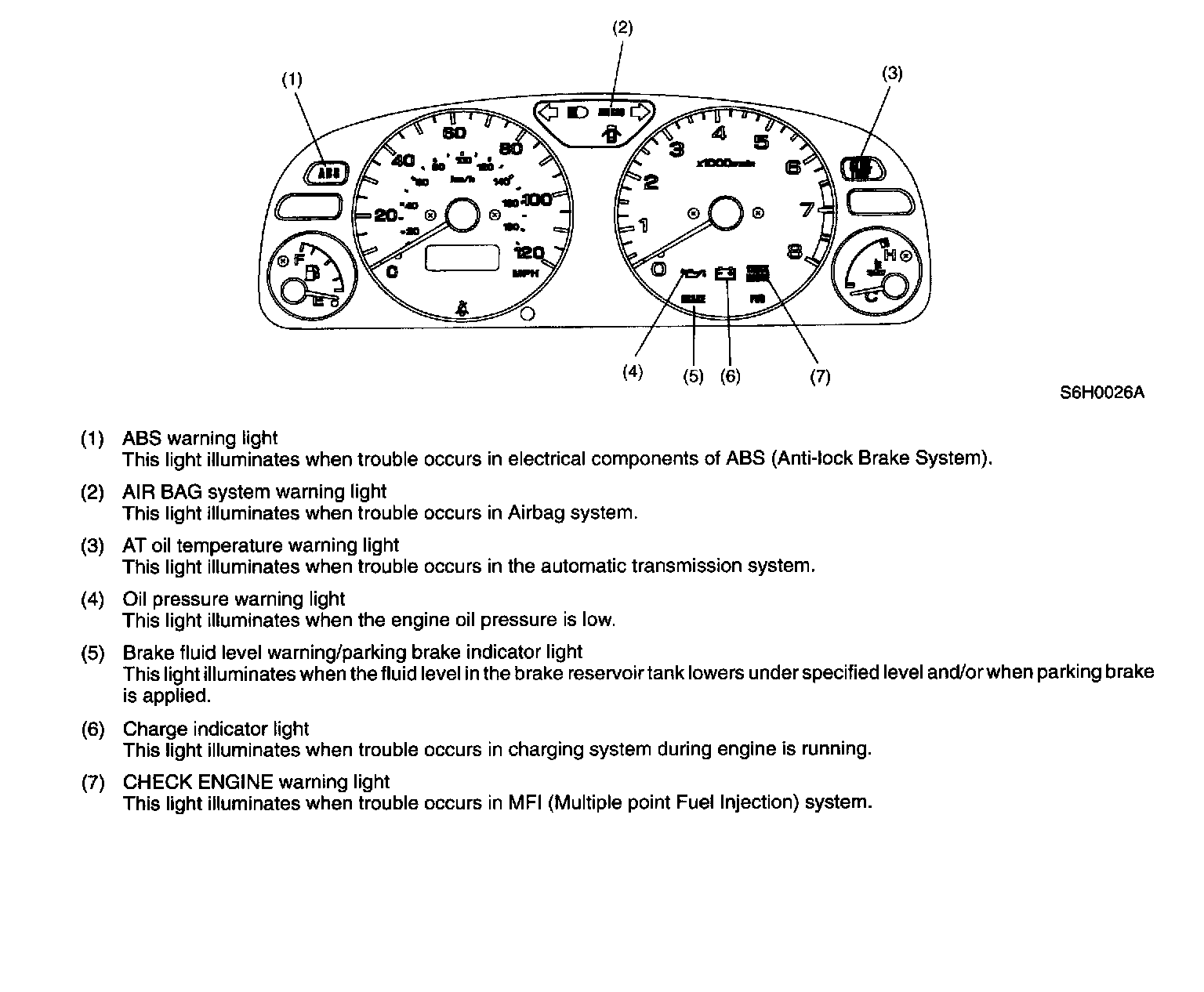

Component Location:

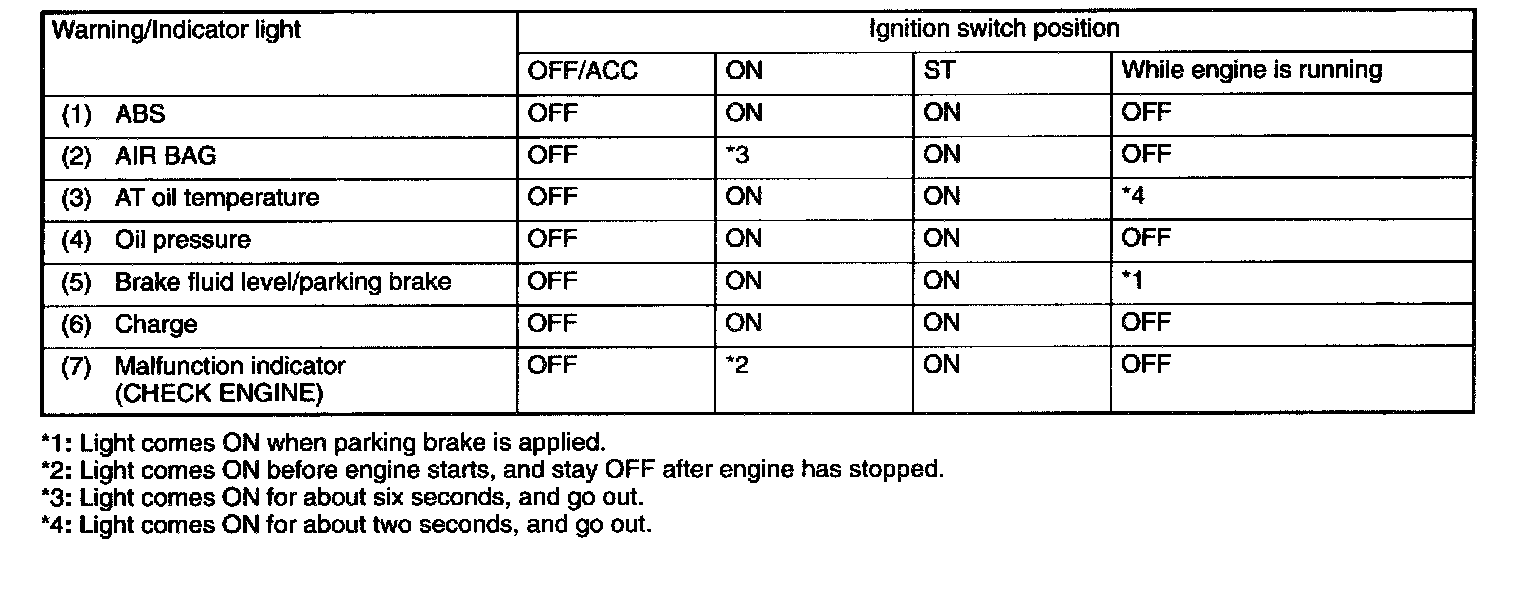

According to ignition switch position, the warning and indicator lights will come on and/or go off under normal conditions as shown:
