Removal and Installation

1. Disconnect battery ground cable.

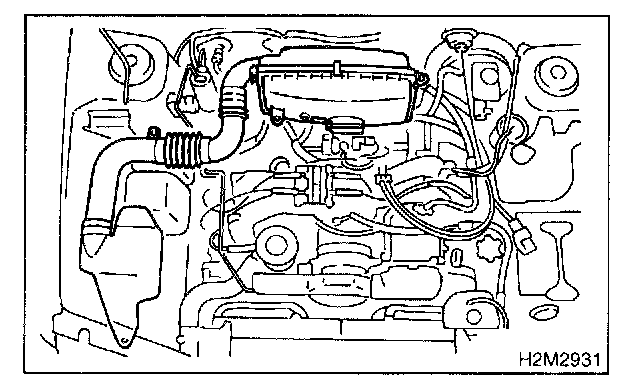

2. Remove air cleaner case and air intake duct.

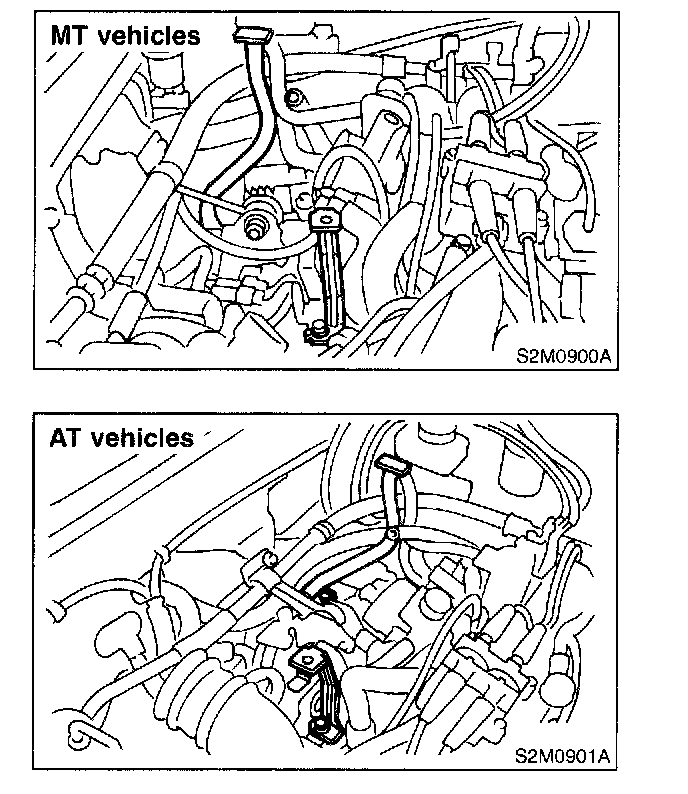

MT / AT Vehicles:

3. Remove air intake chamber stay.




4. Disconnect connector and terminal from starter.




5. Remove starter from transmission.




6. Installation is in the reverse order of removal.

Tightening torque:
50 ± 4 N.m (5.1 ± 0.4 kg.m, 37 ± 2.9 ft.lb)
