Shift Interlock: Testing and Inspection

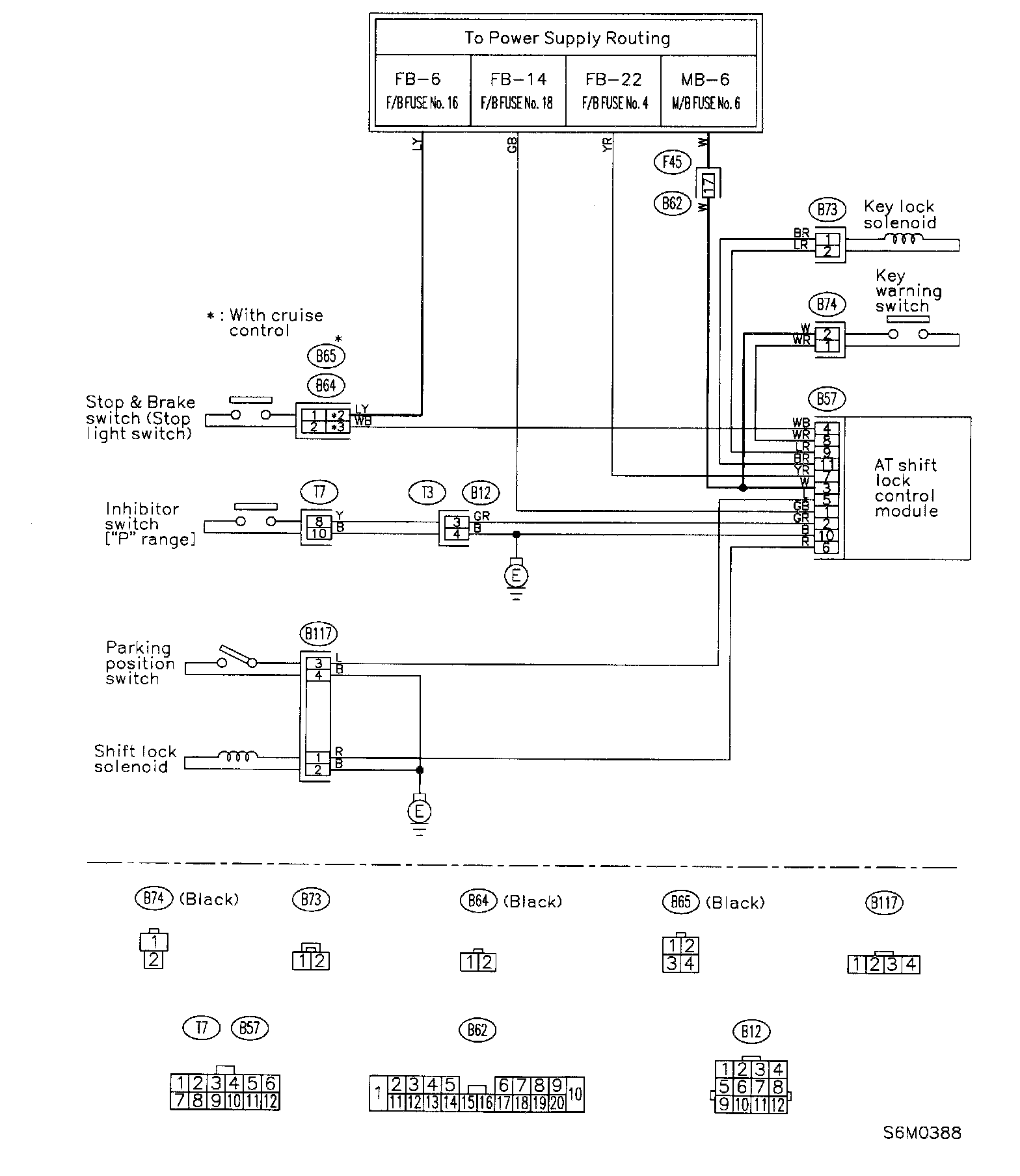

Wiring Diagram:

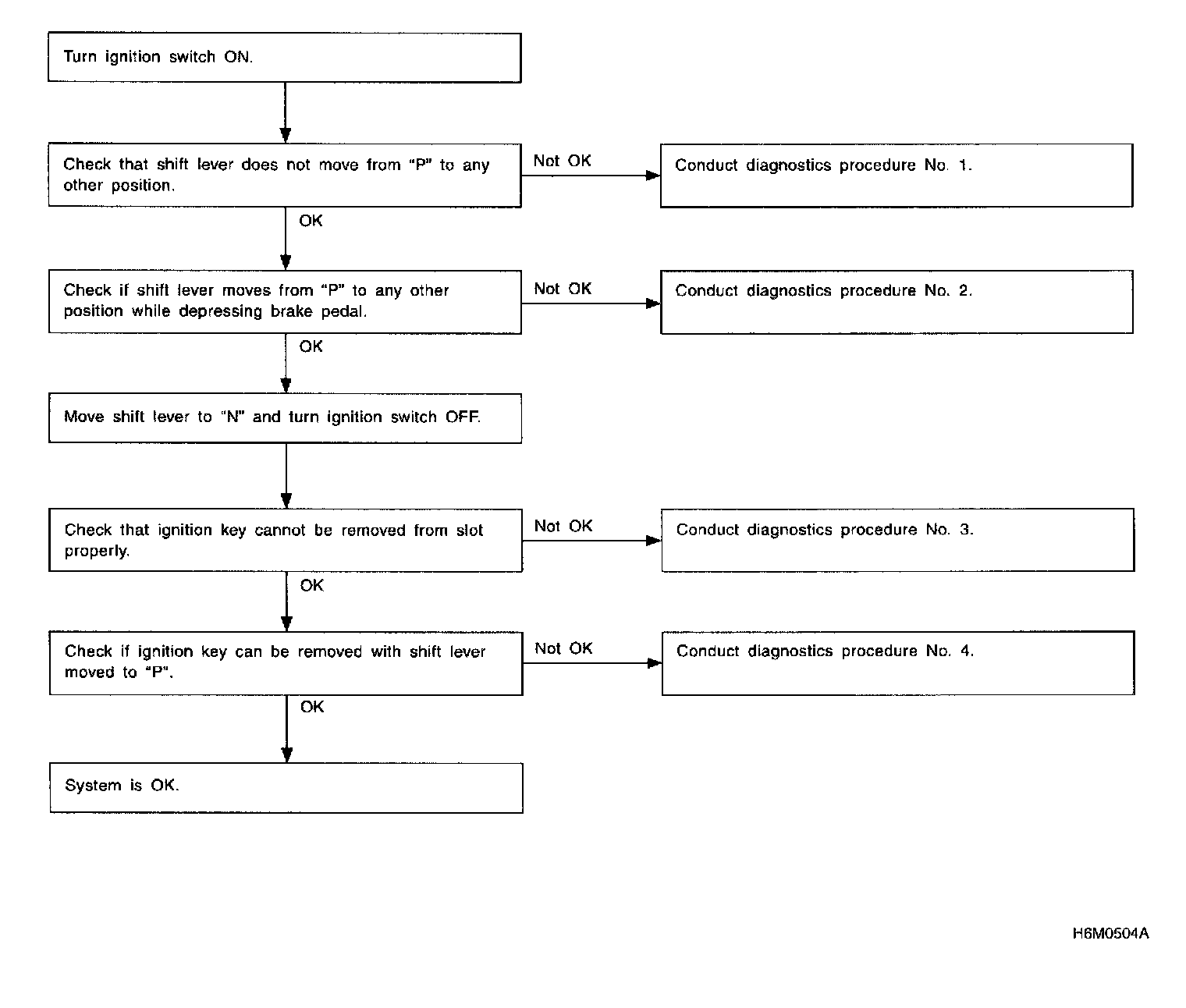

Basic Diagnostics Chart:

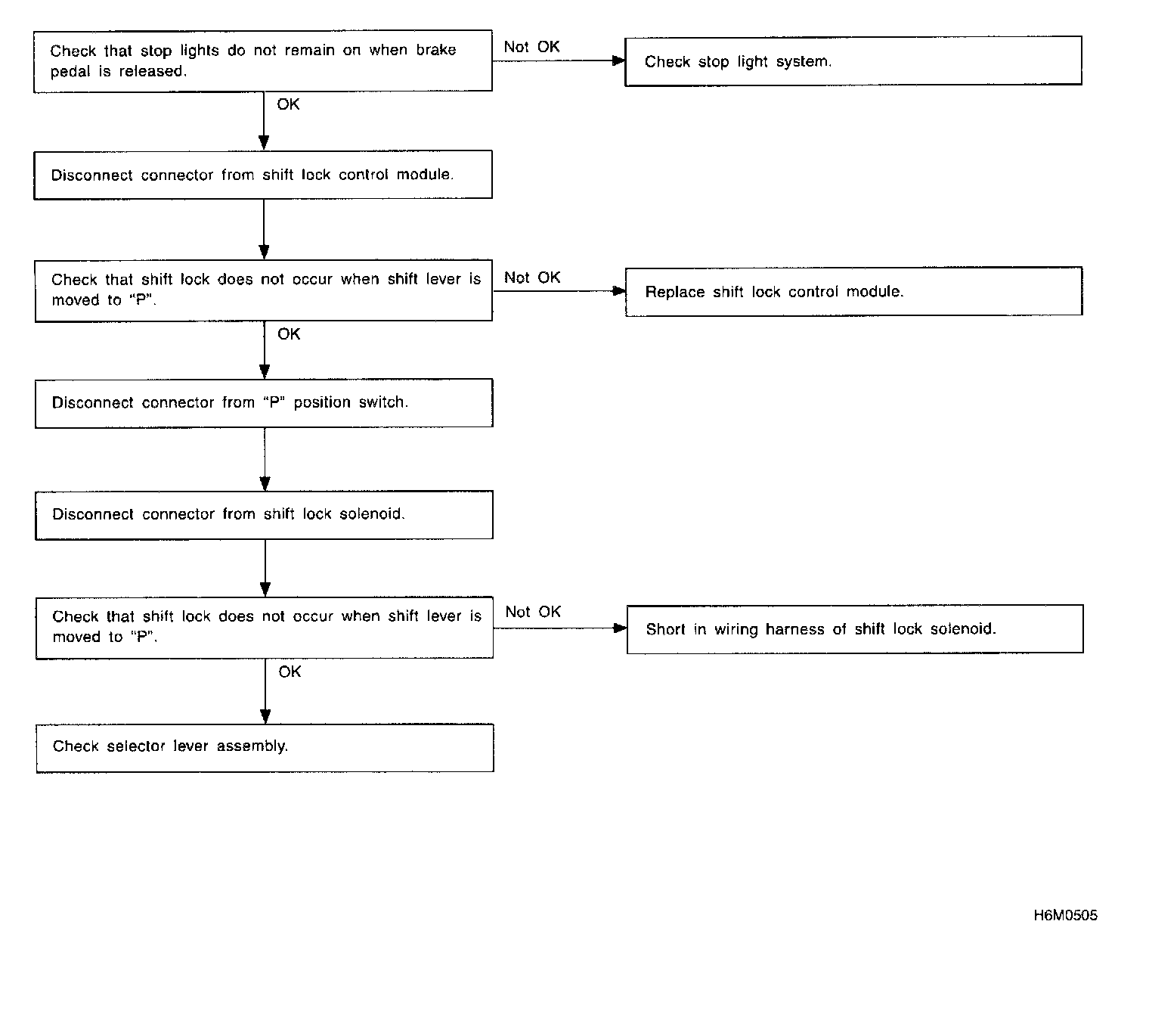

Diagnostic Procedure No.1:

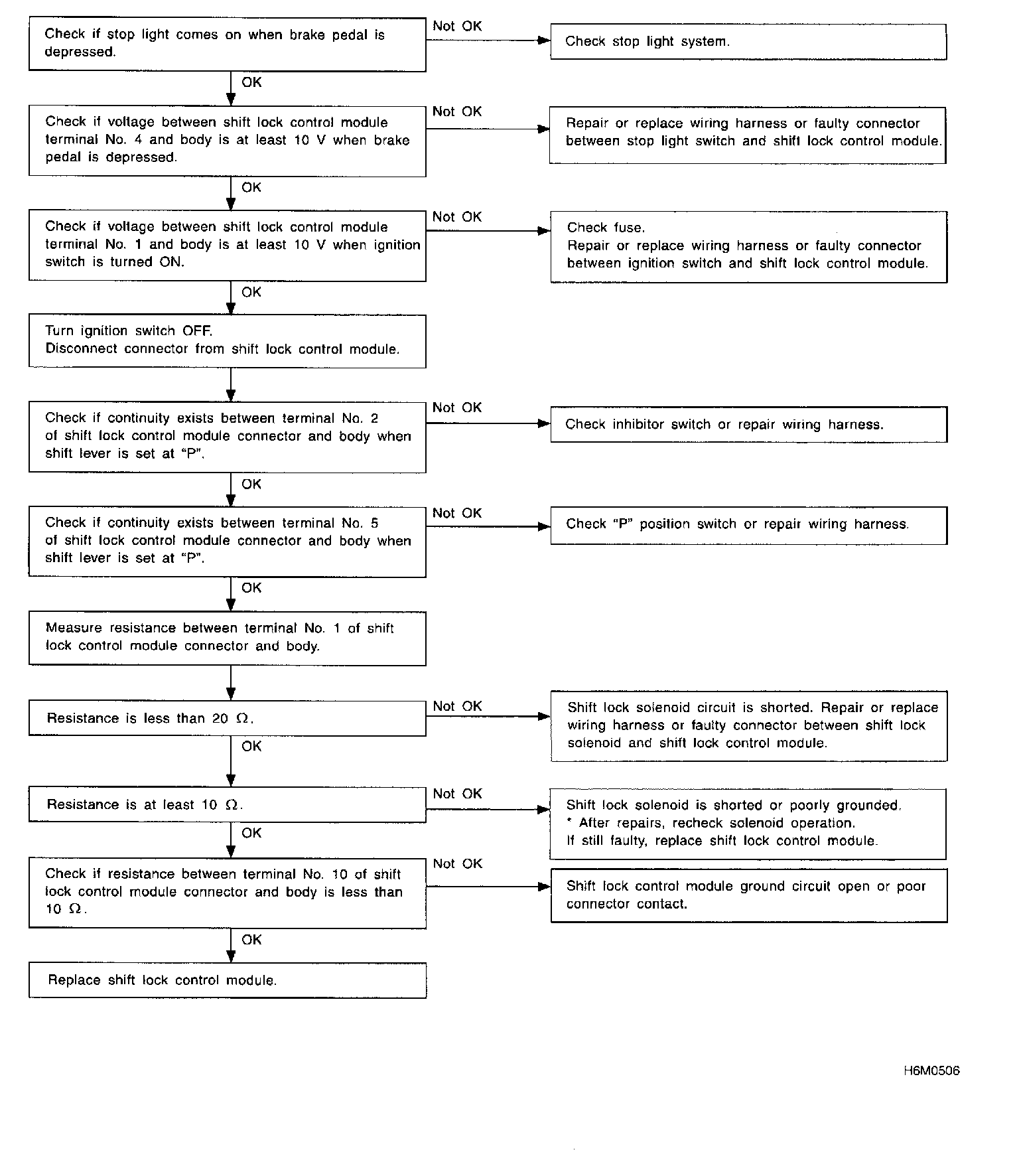

Diagnostic Procedure No.2 (shift Lock Does Not Release.):

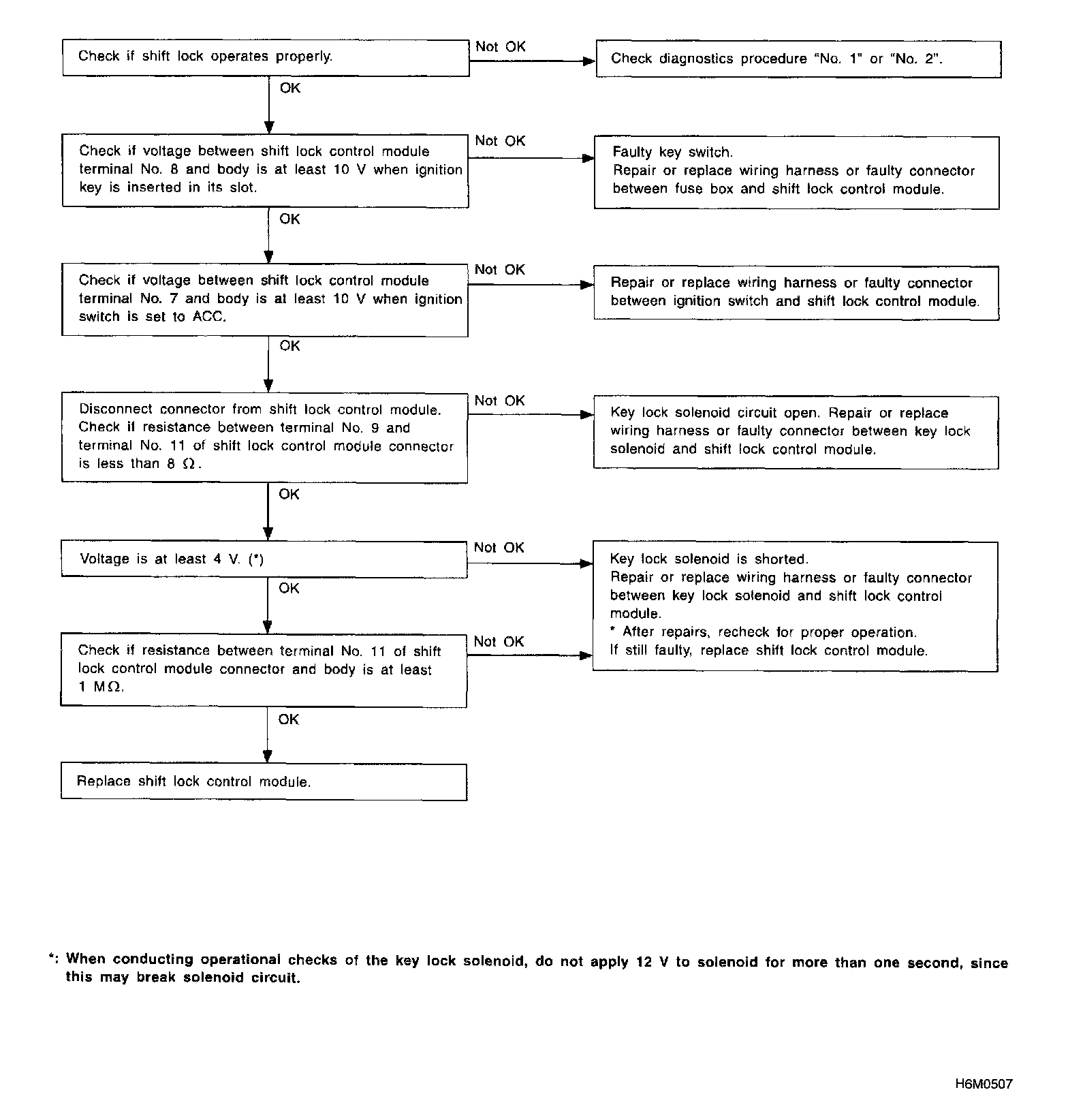

Diagnostic Procedure No.3 (Key Interlock Does Not Operate):

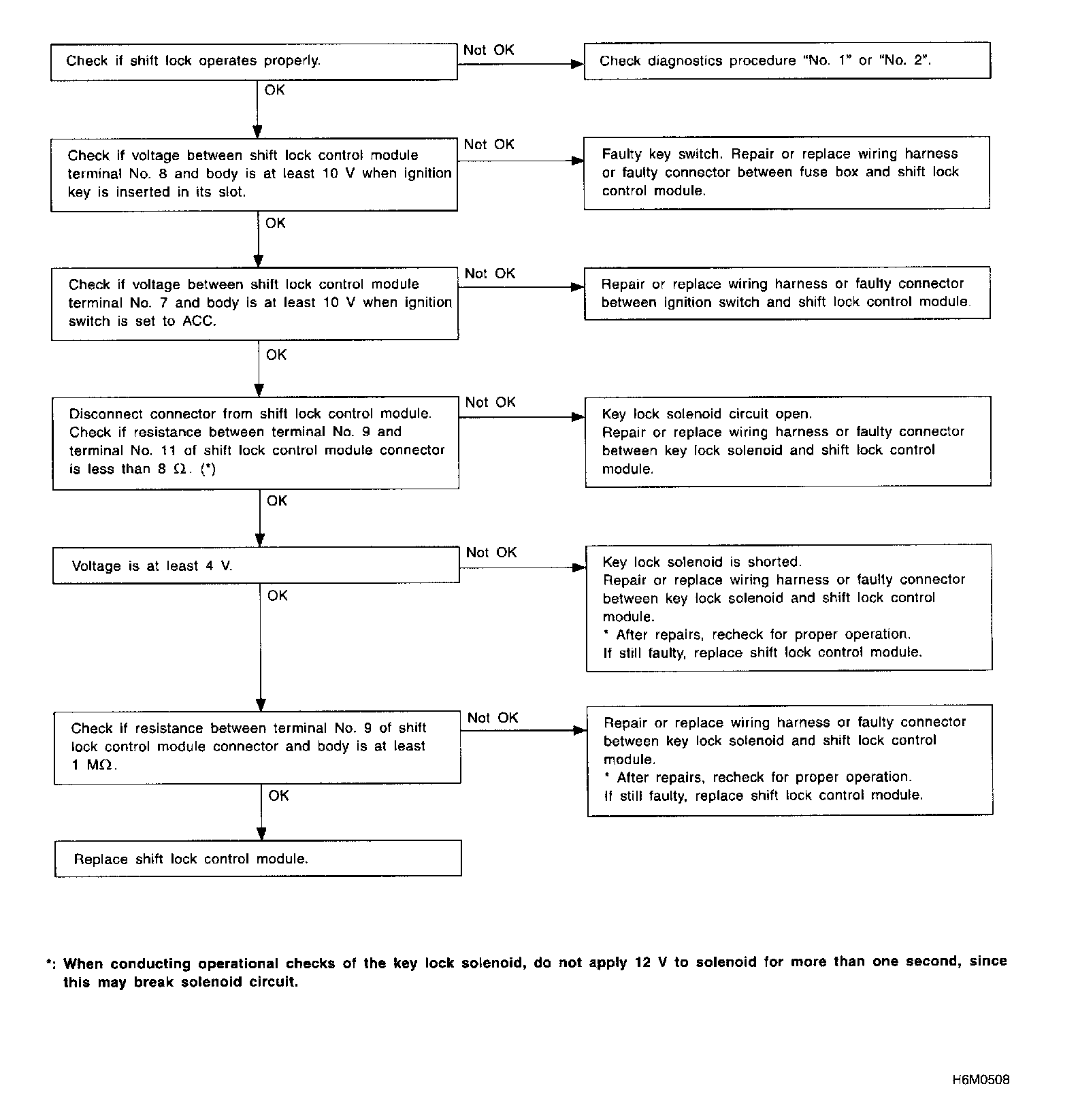

Diagnostic Procedure No.4 (Key Interlock Does Not Release.):
