Camber

1. Loosen two self-locking nuts located at lower front portion of strut.

CAUTION:
- When adjusting bolt needs to be loosened or tightened, hold its head with a wrench and turn self-locking nut.
- Discard loosened self-locking nut and replace with a new one.

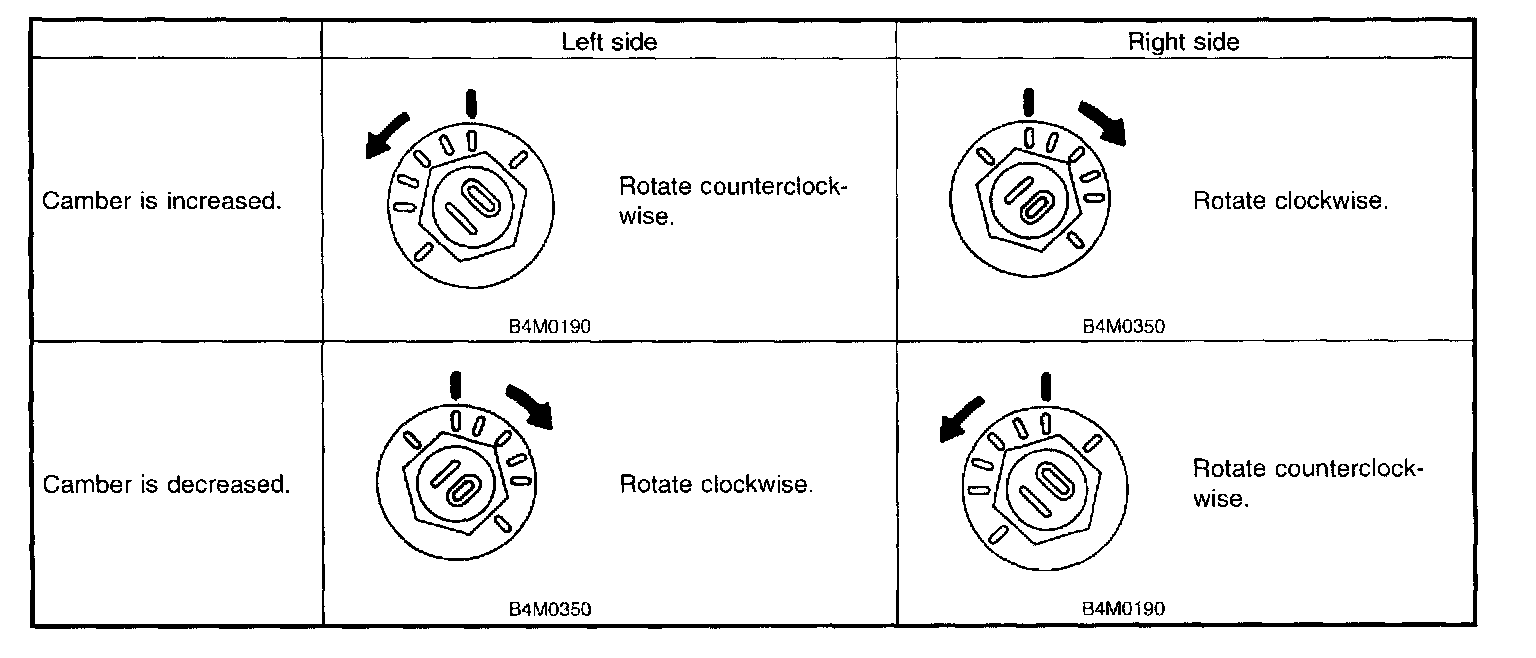

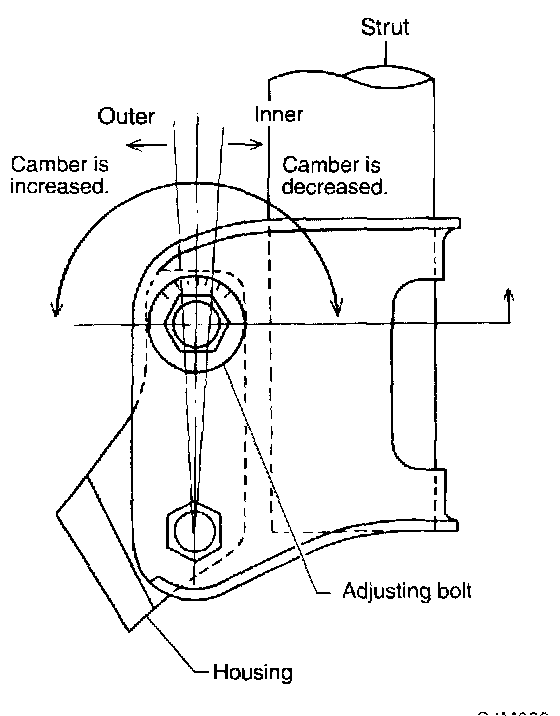

2. Turn camber adjusting bolt so that camber is set at the specification.

NOTE: Moving the adjusting bolt by one scale graduation changes camber by approximately 0°10'.

3. Tighten the two self-locking nuts.

Tightening torque: 152 ± 20 Nm (15.5 ± 2.0 kg-m, 112 ± 14 ft. lbs.)
