AT Oil Temp Warning Light

A: AT OIL TEMP WARNING LIGHT DOES NOT COME ON OR GO OFF
DIAGNOSIS: The AT OIL TEMP warning light circuit is open or shorted.

TROUBLE SYMPTOM:
^ When ignition switch is turned to ON (engine OFF), AT OIL TEMP warning light does not illuminate.
^ When on-board diagnostics is performed, AT OIL TEMP warning light remains illuminated.

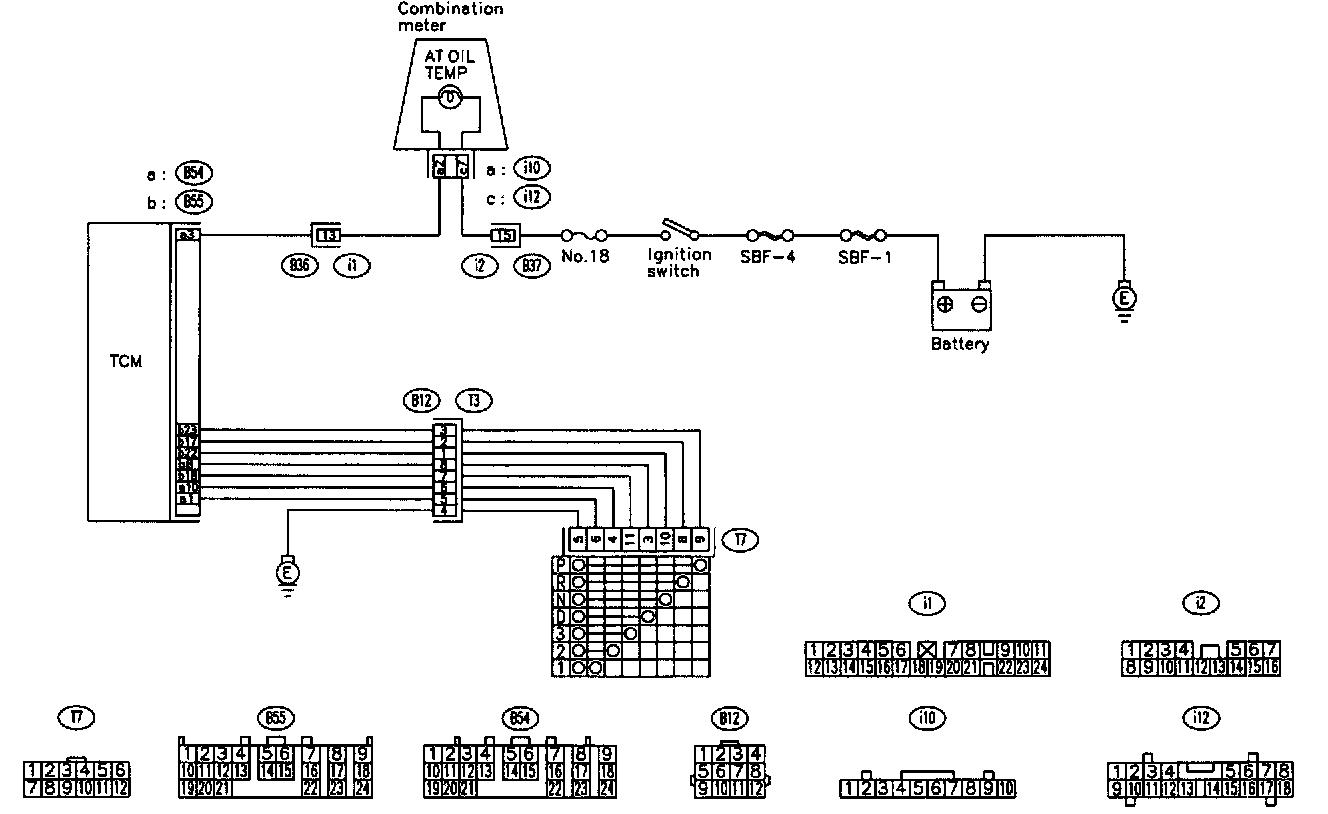

WIRING DIAGRAM:

PROCEDURE:

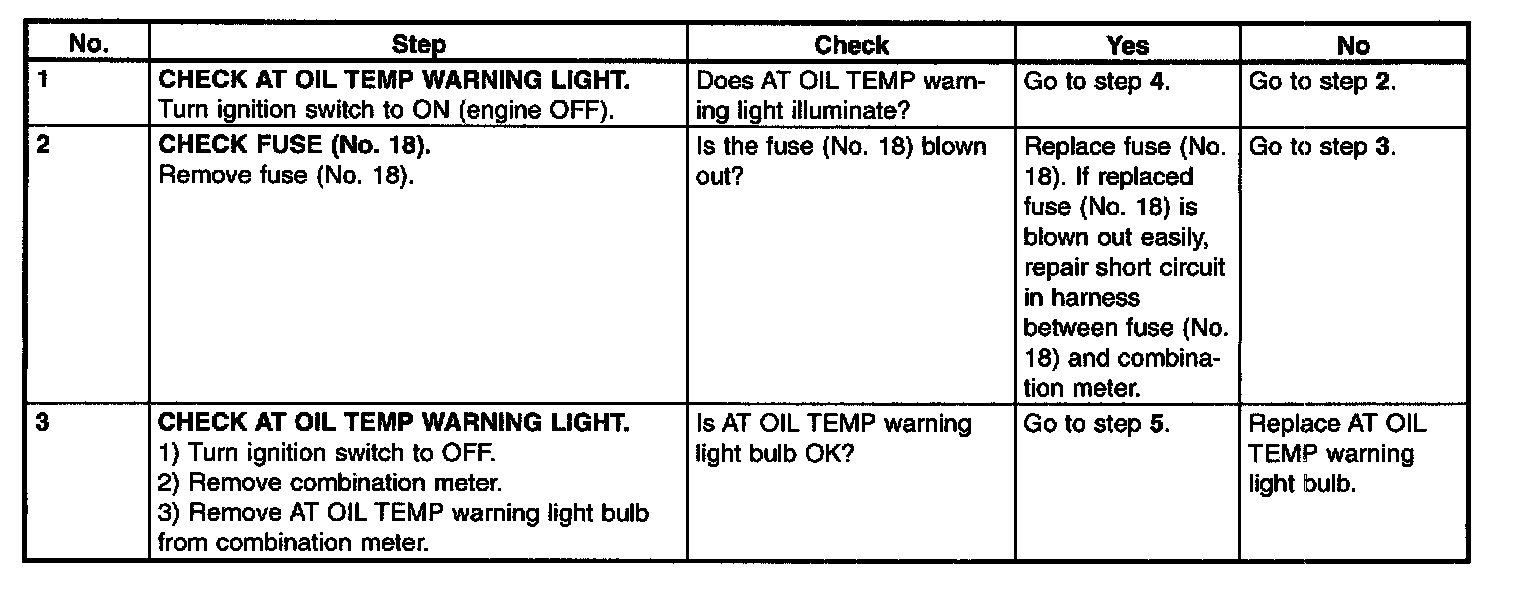

No.1 - 3

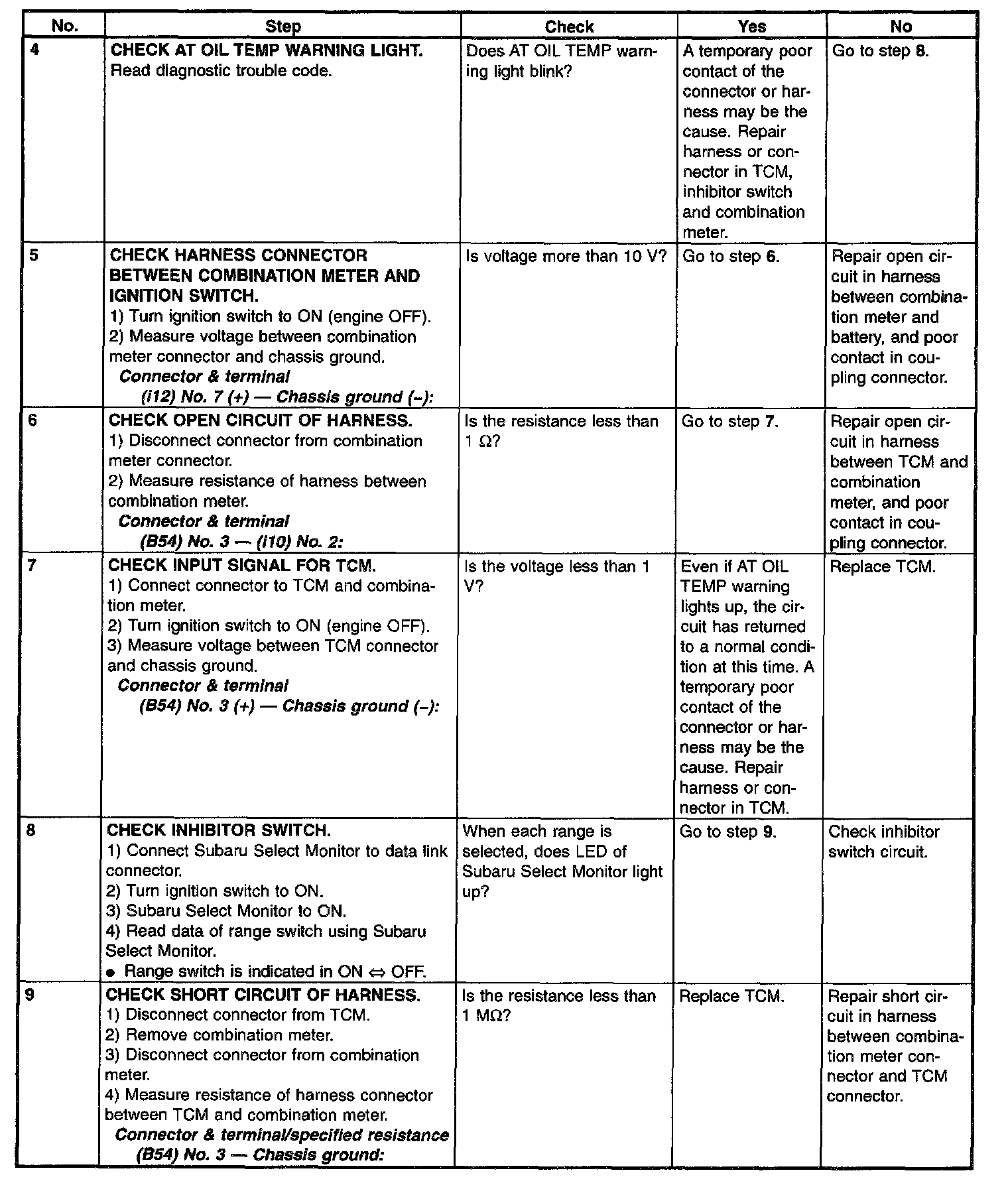

No.4 - 9
