Blower Motor: Service and Repair

Blower Motor Assembly

REMOVAL

1. Disconnect GND cable from battery.

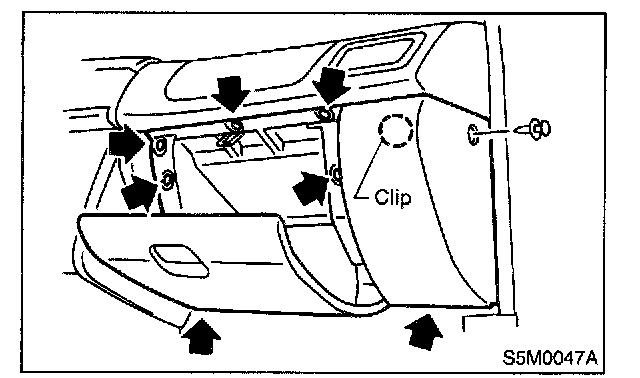

2. Remove glove box.
3. Disconnect blower motor harness connector.

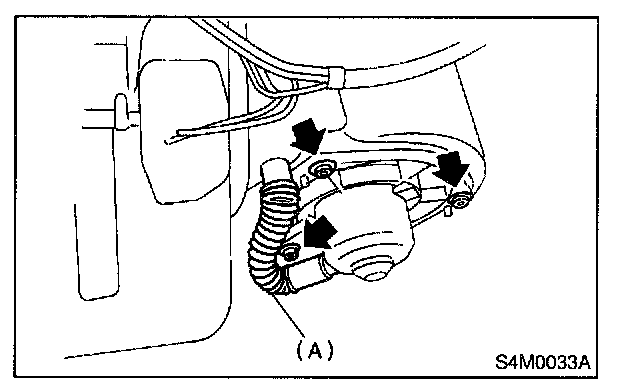

4. Disconnect aspirator pipe (A).




5. Remove blower motor mounting screw.
6. Remove blower motor assembly.

INSTALLATION
Install in the reverse order of removal.
