Grille: Service and Repair

FRONT GRILLE

REMOVAL

1. Open hood.

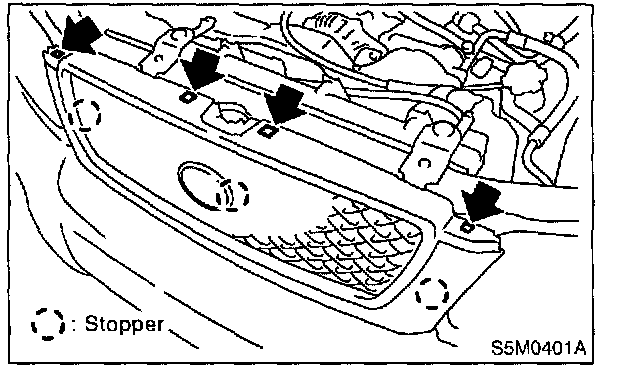

2. Remove the four upper clips from the body panel. Push the part shown in the figure by using a screwdriver while lightly pulling the front grille.






INSTALLATION

1. Attach all clips to front grille.
2. Align them with clip holes in body and push them into place.
