Blower Motor Resistor: Service and Repair

Heater Blower Resistor / REMOVAL
1. Remove glove box.

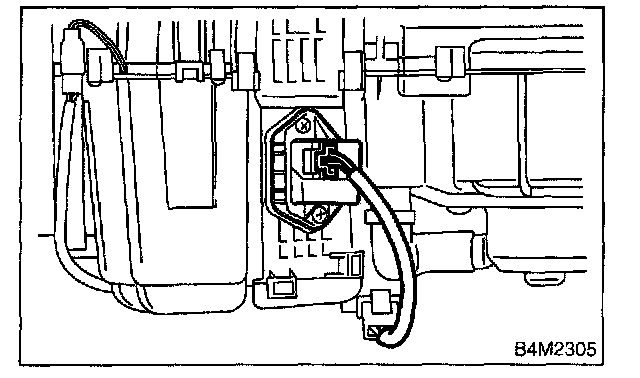

2. Disconnect power transistor connector.

3. Loosen 2 screws to remove power transistor.

INSTALLATION
Install in the reverse order of removal.
