Blower Motor Resistor: Testing and Inspection

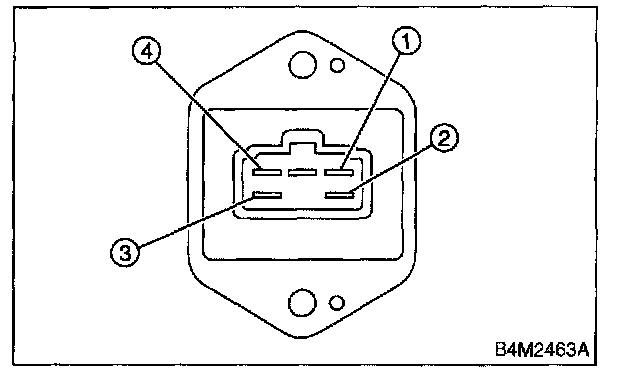

BLOWER MOTOR RESISTOR / INSPECTION

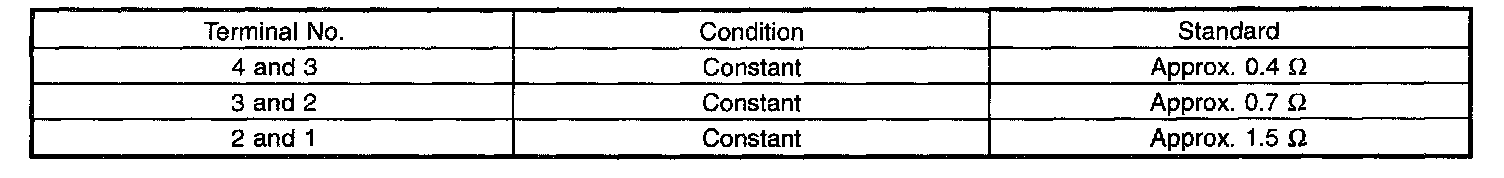

Measure switch resistance.

If NG, replace the blower resistor.
