Air Injection Vacuum Control Solenoid Valve

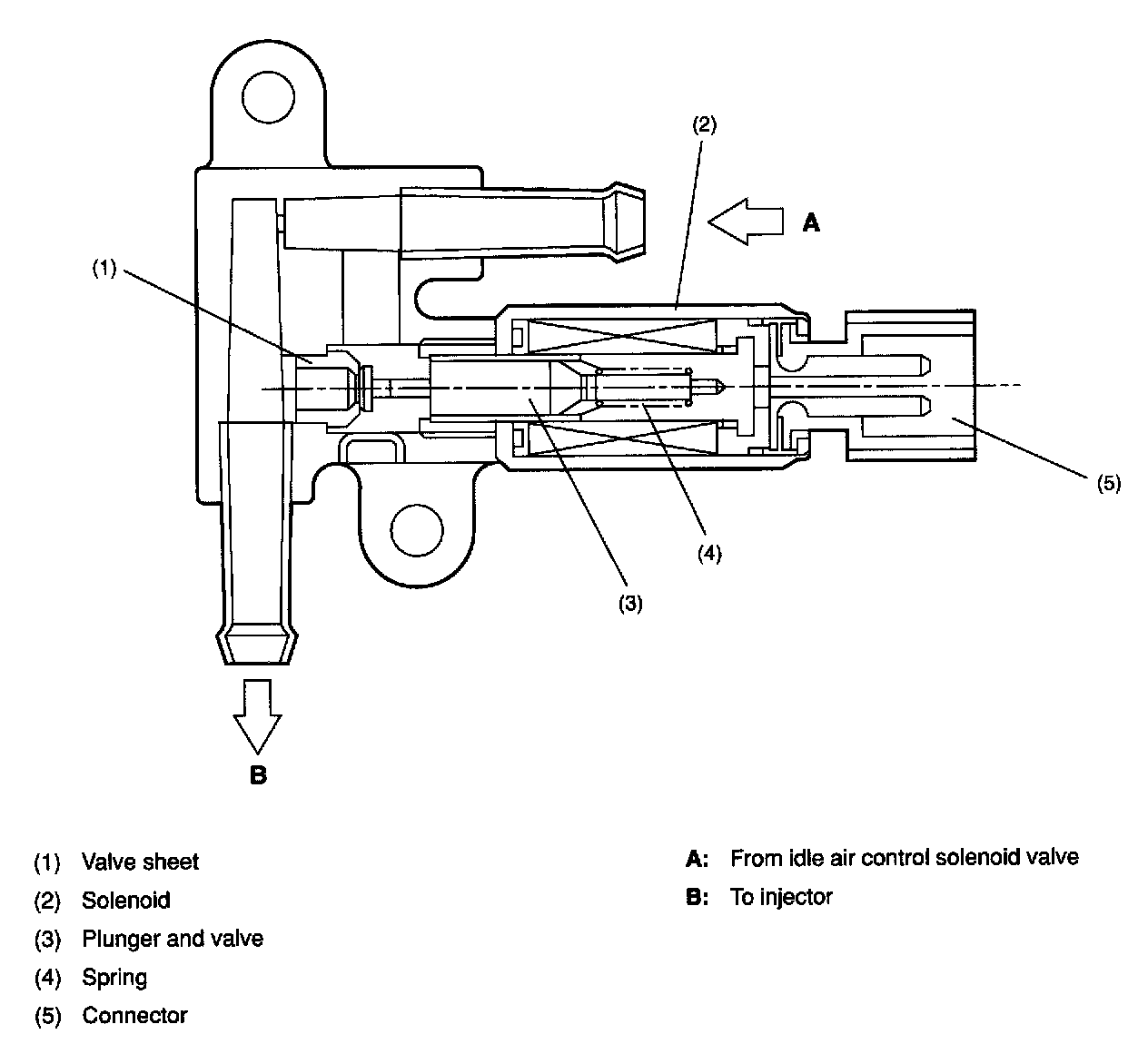

Air Assist Injector Solenoid Valve:

Air Assist Injector Solenoid Valve / REMOVAL

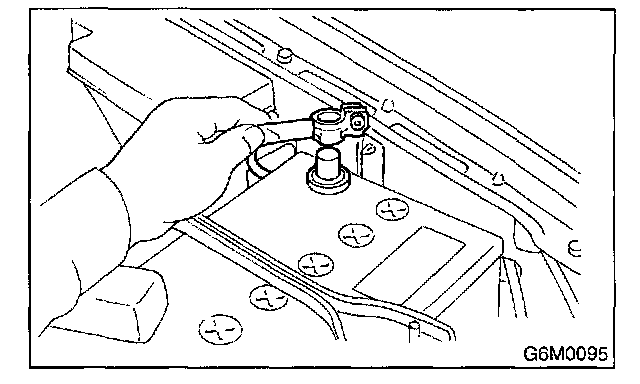

1. Disconnect battery ground cable.

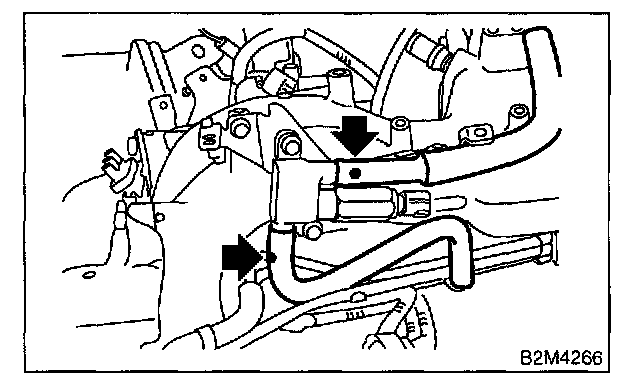

2. Disconnect connector from air assist injector solenoid valve and disconnect air by-pass hoses.

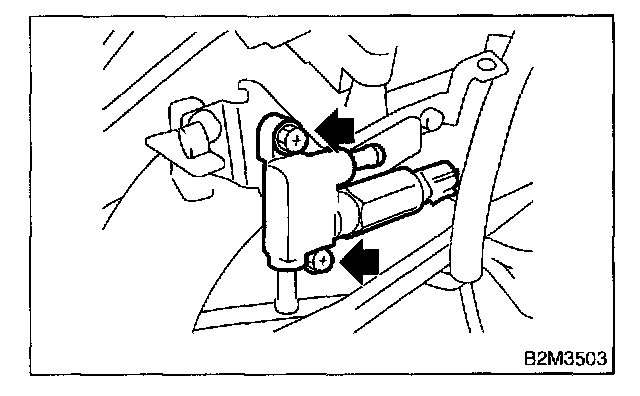

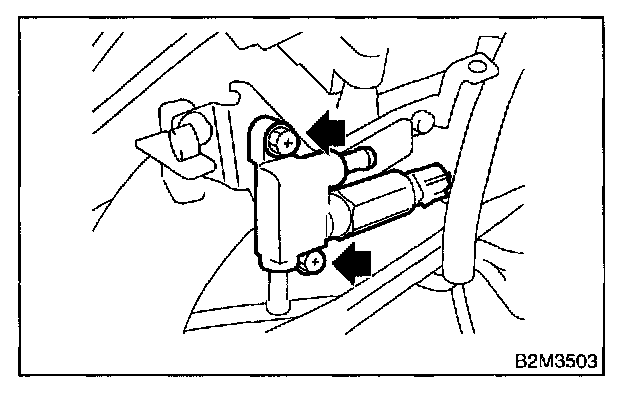

3. Remove air assist injector solenoid valve from intake manifold.


INSTALLATION
Install in the reverse order of removal.






Tightening Torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
