Dropping Resistor: Service and Repair

A: REMOVAL

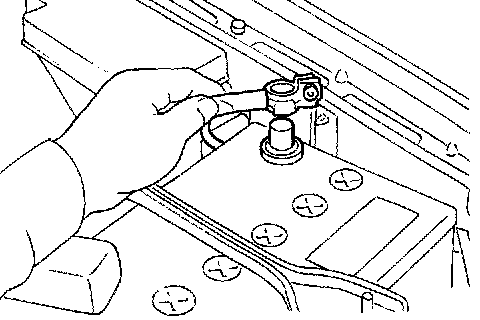

1. Disconnect battery ground cable.
2. Remove air intake duct.
3. Disconnect connector from dropping resistor.

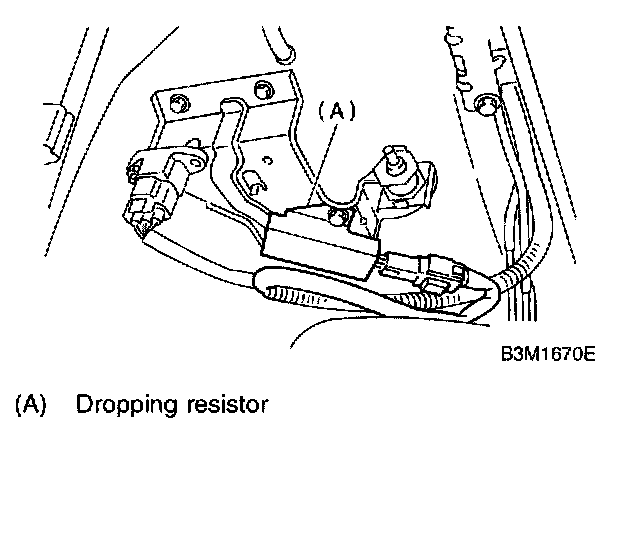

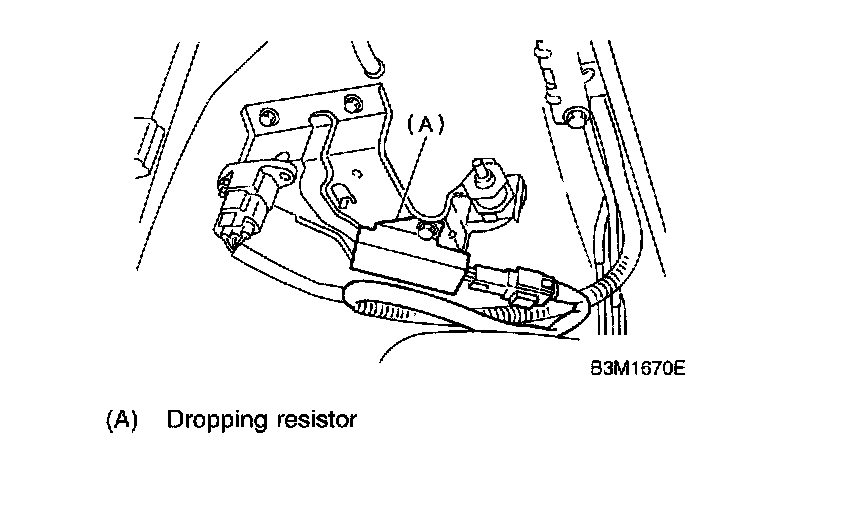

4. Remove dropping resistor.

B: INSTALLATION





1. Install in the reverse order of removal.
Tightening torque: 6.4 Nm (0.65 kgf-m, 4. 7 ft. lbs.)
