Shift Interlock: Testing and Inspection

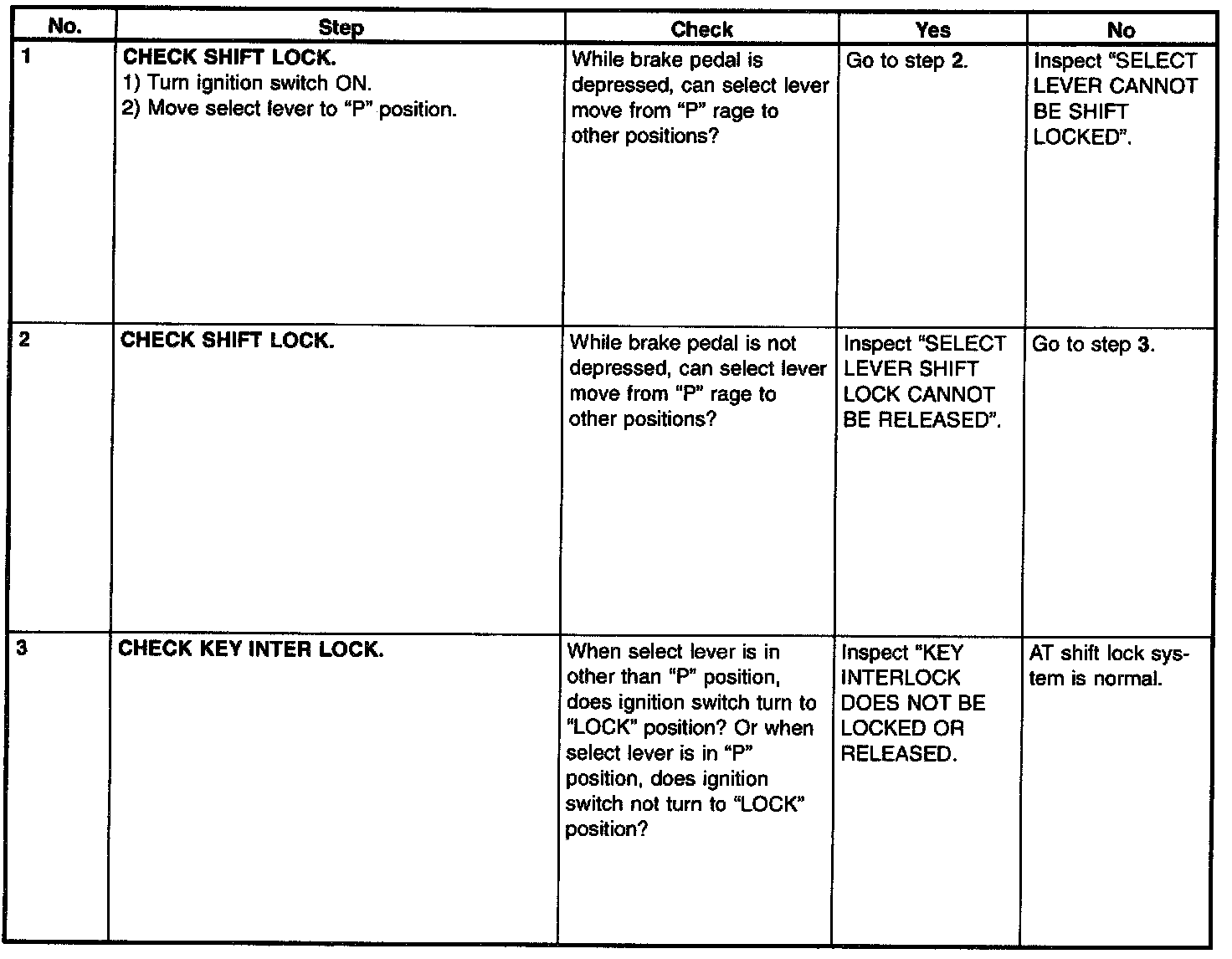

C: INSPECTION

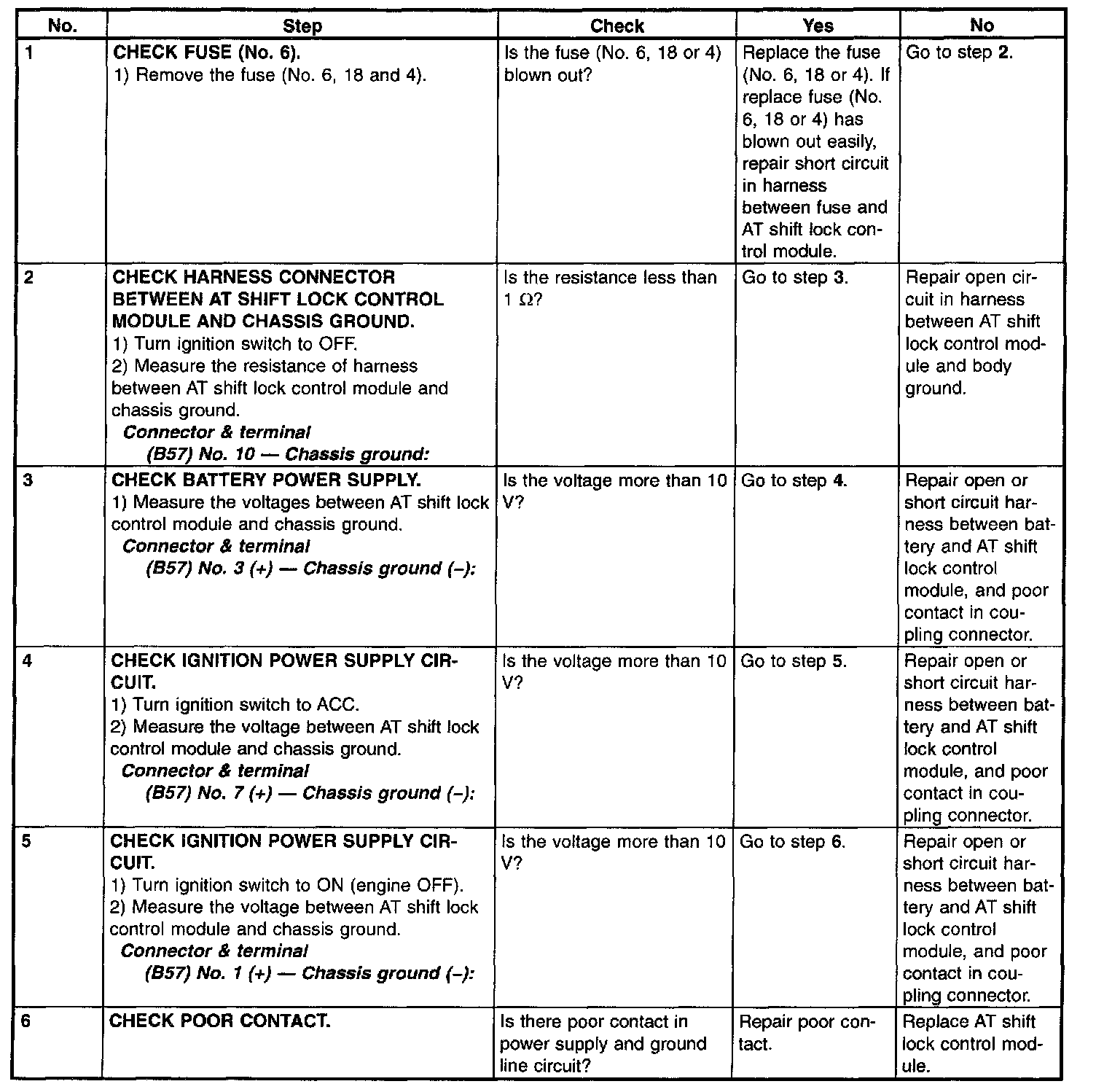

1. AT SHIM LOCK CONTROL MODULE POWER SUPPLY AND GROUND LINE
WIRING DIAGRAM

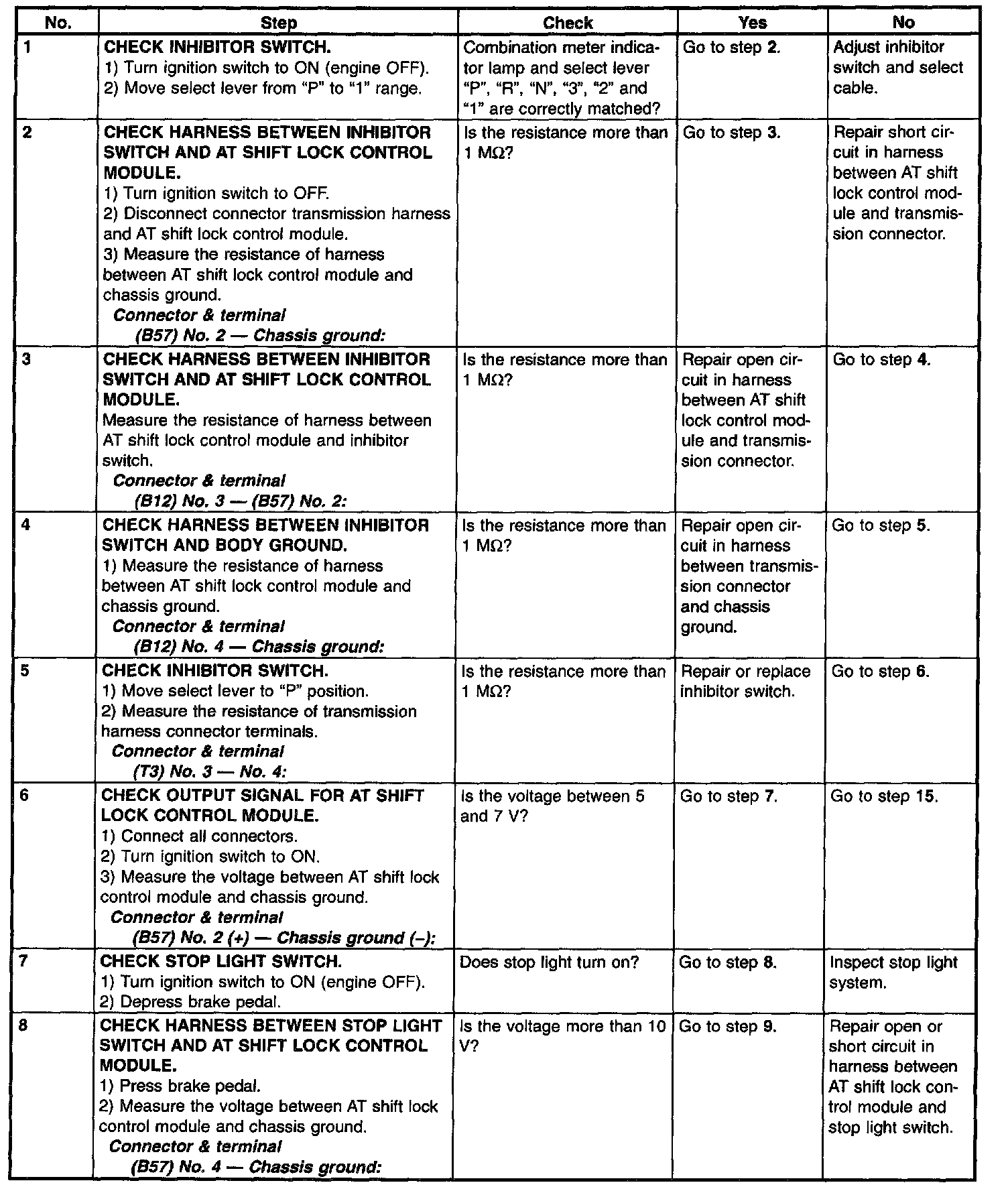

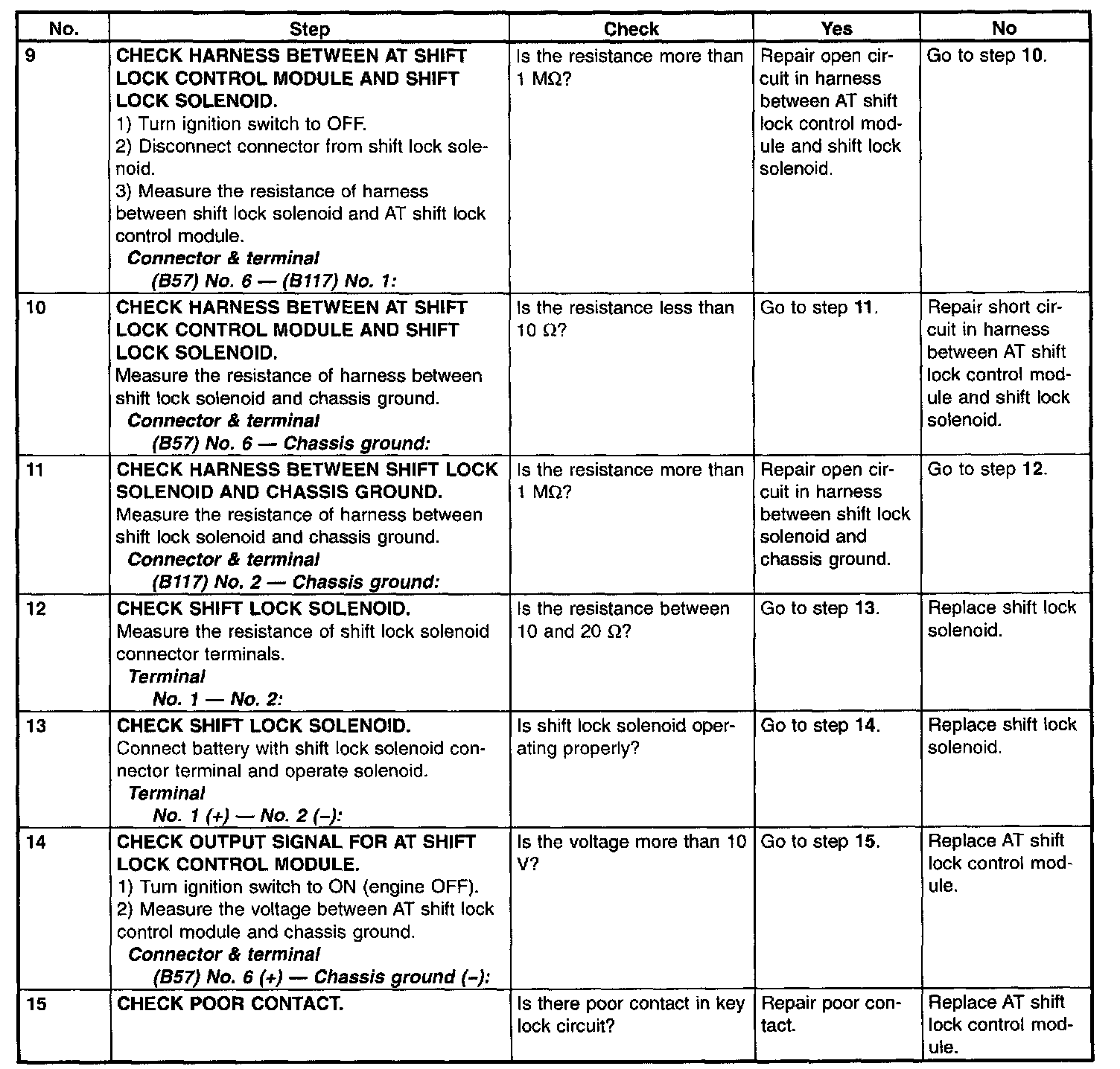

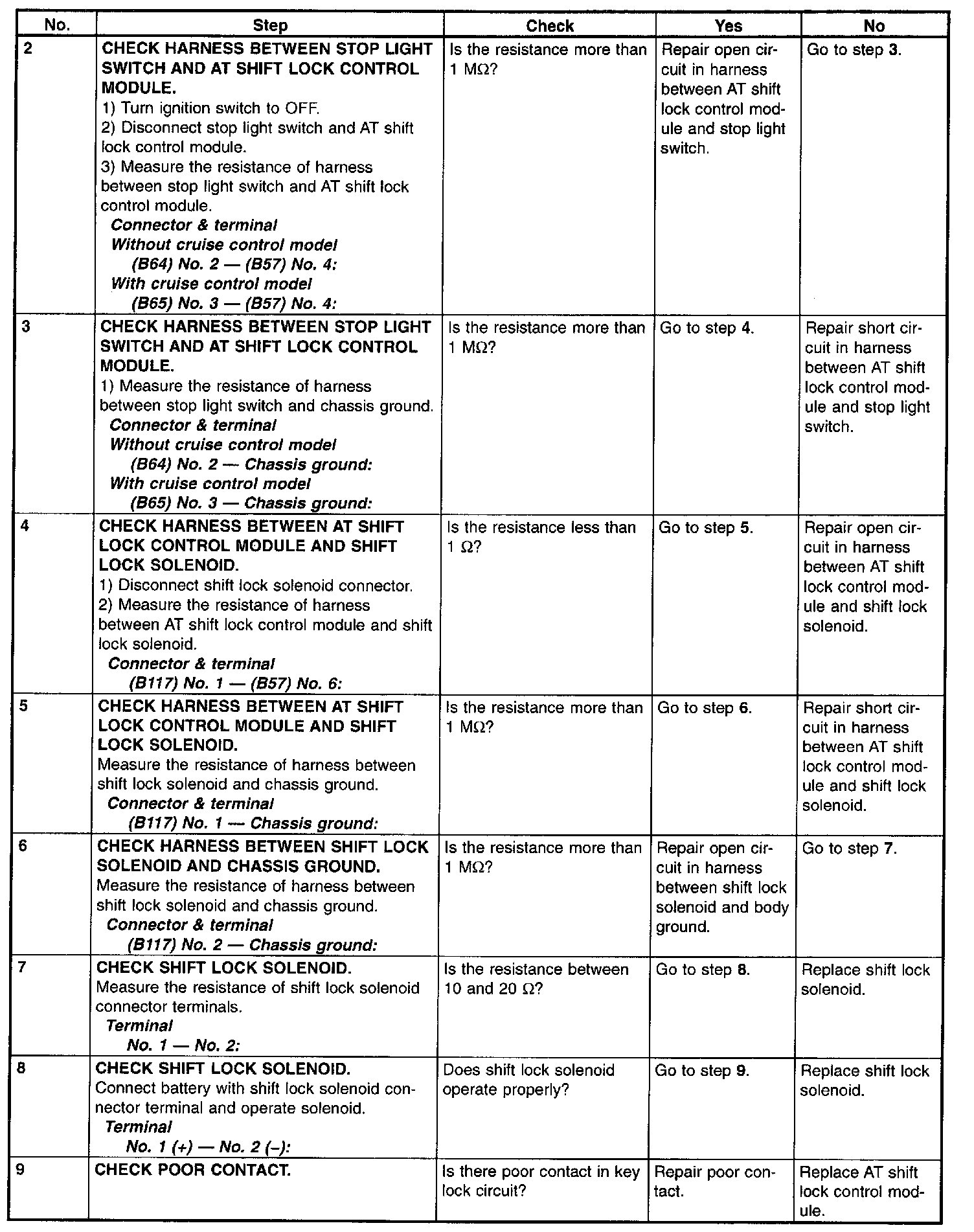

2. SELECT LEVER CANNOT BE SHIFT LOCKED

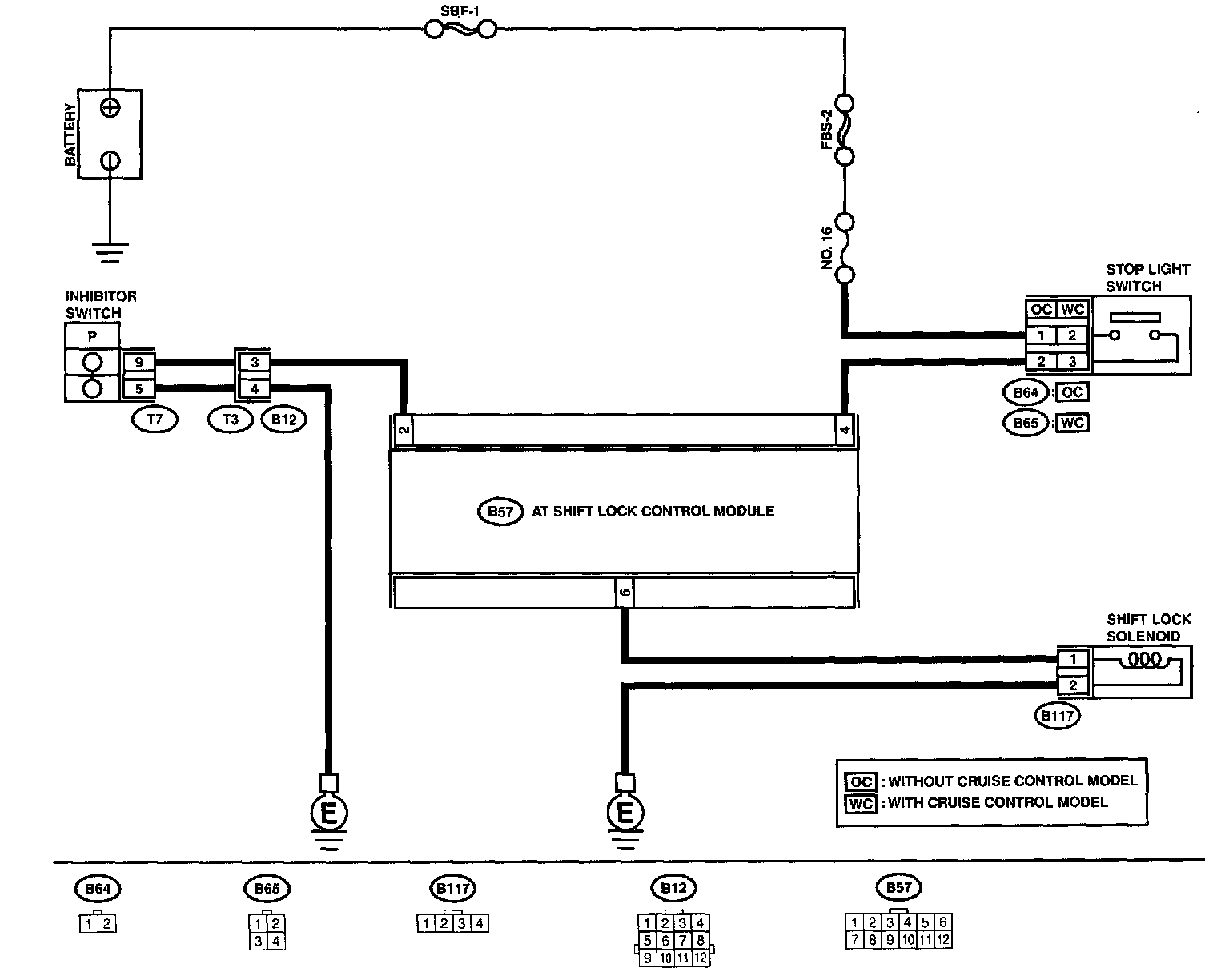

WIRING DIAGRAM

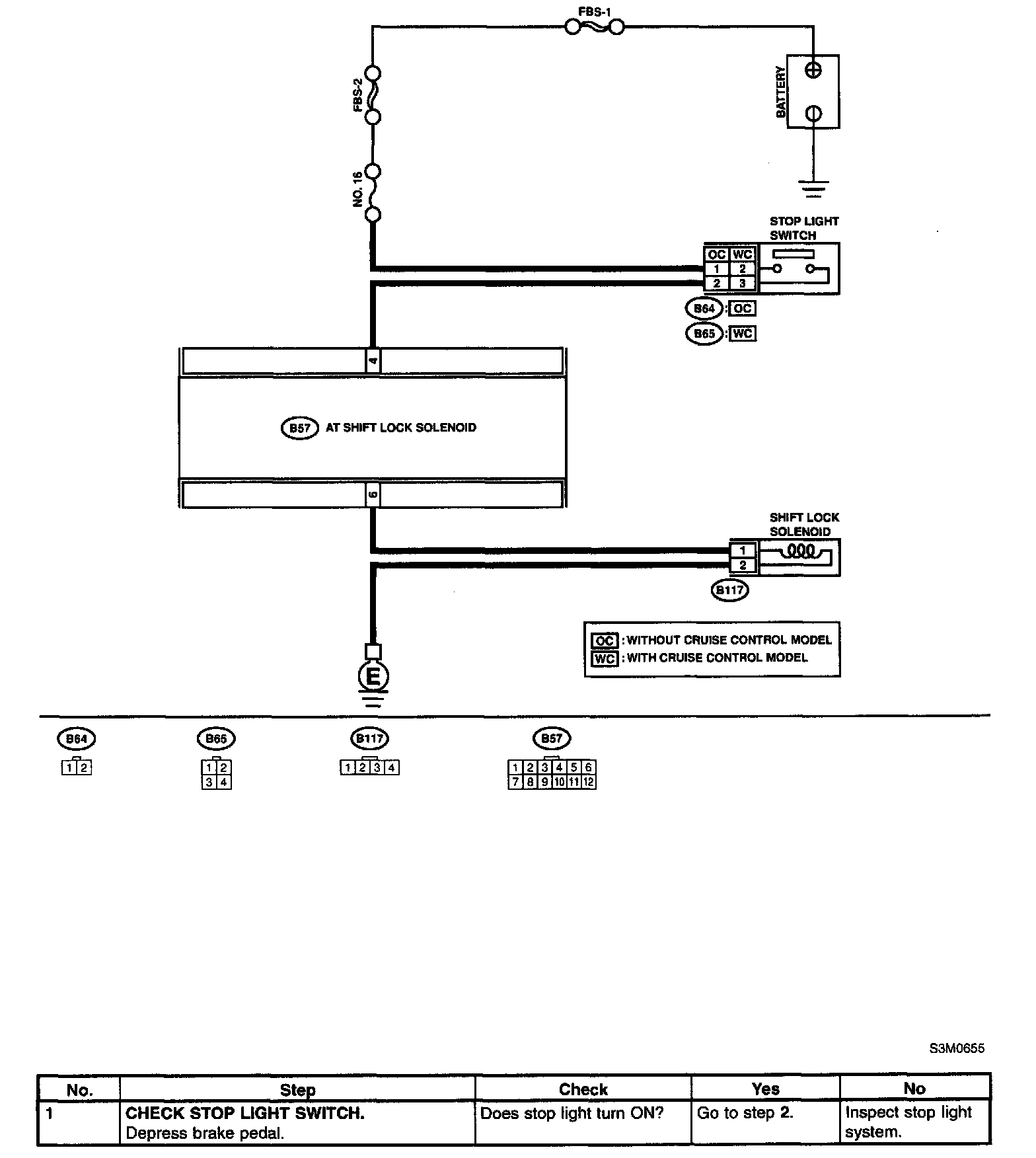

3. SELECT LEVER SHIFT LOCK CANNOT BE RELEASED
WIRING DIAGRAM

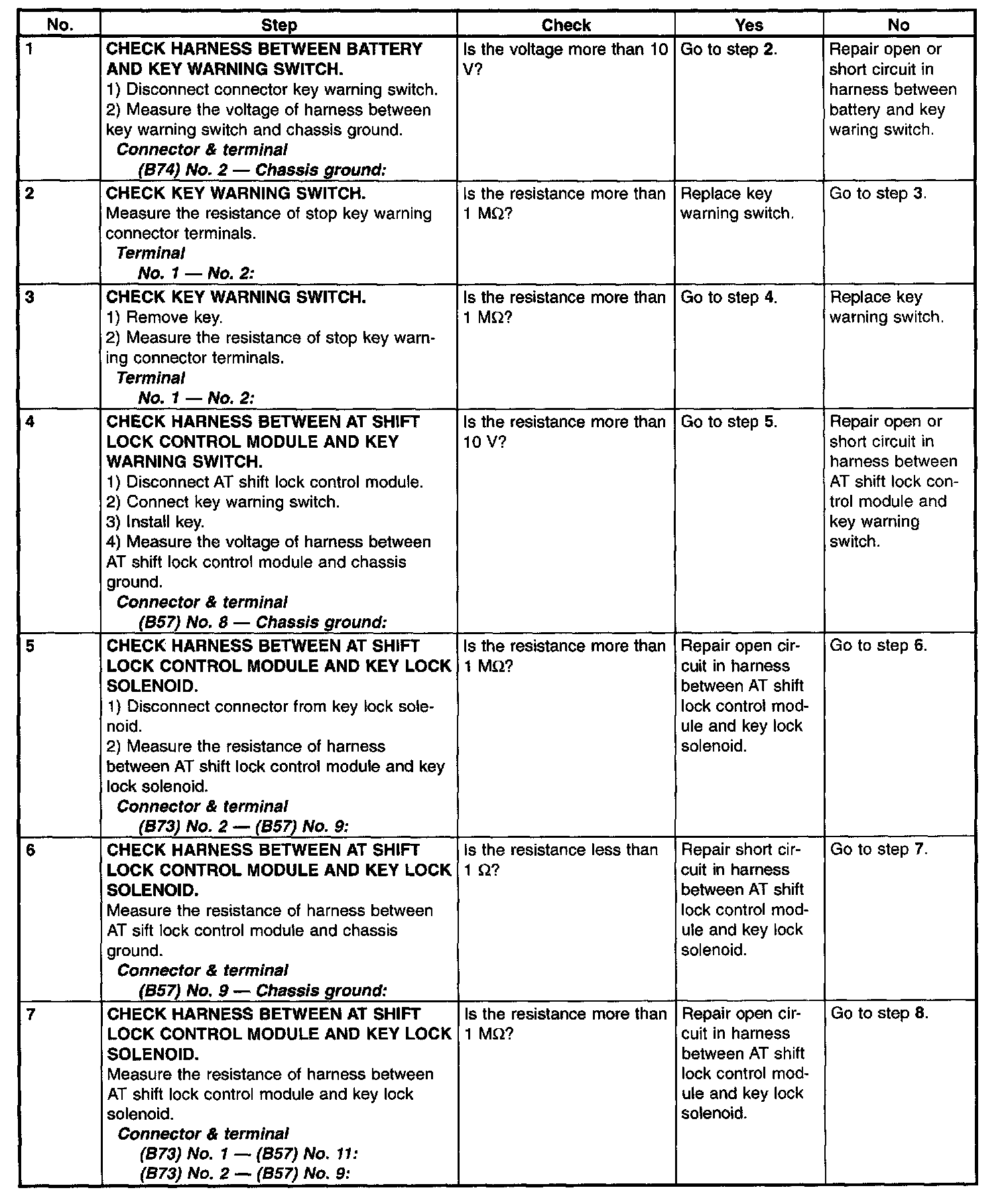

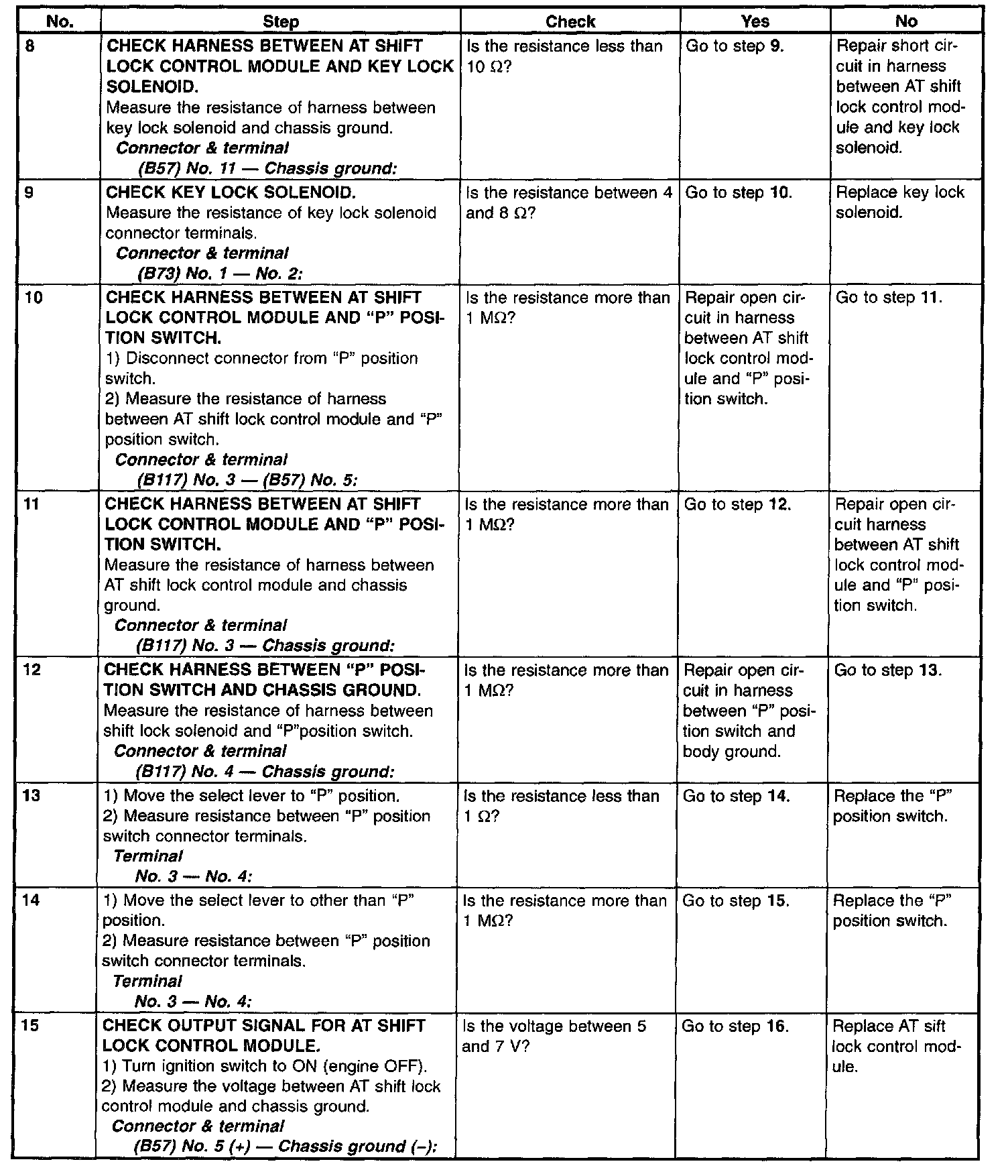

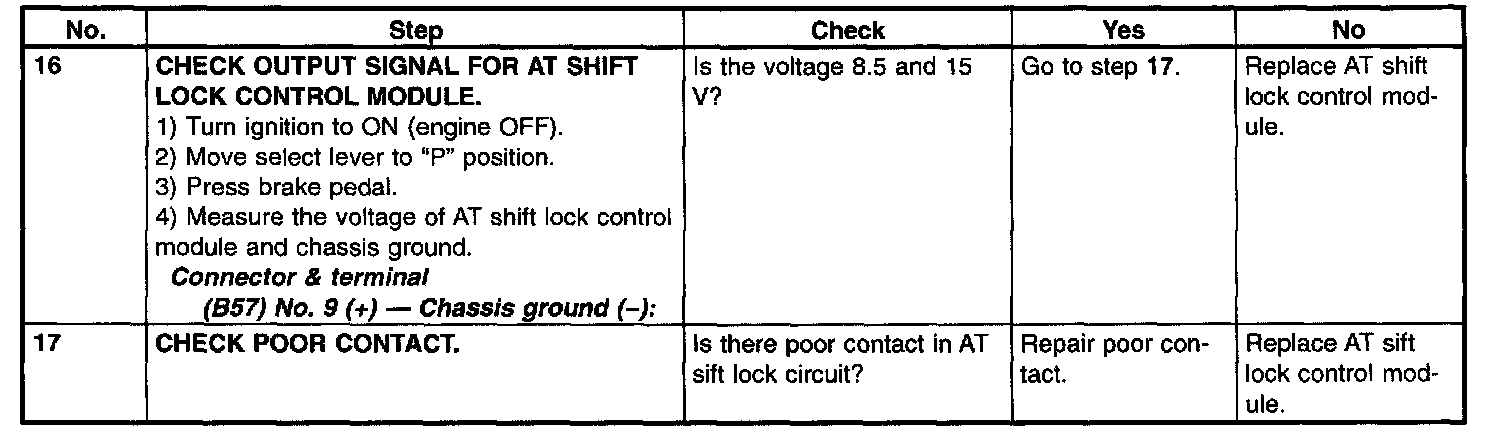

4. KEY INTERLOCK DOES NOT LOCK OR RELEASE

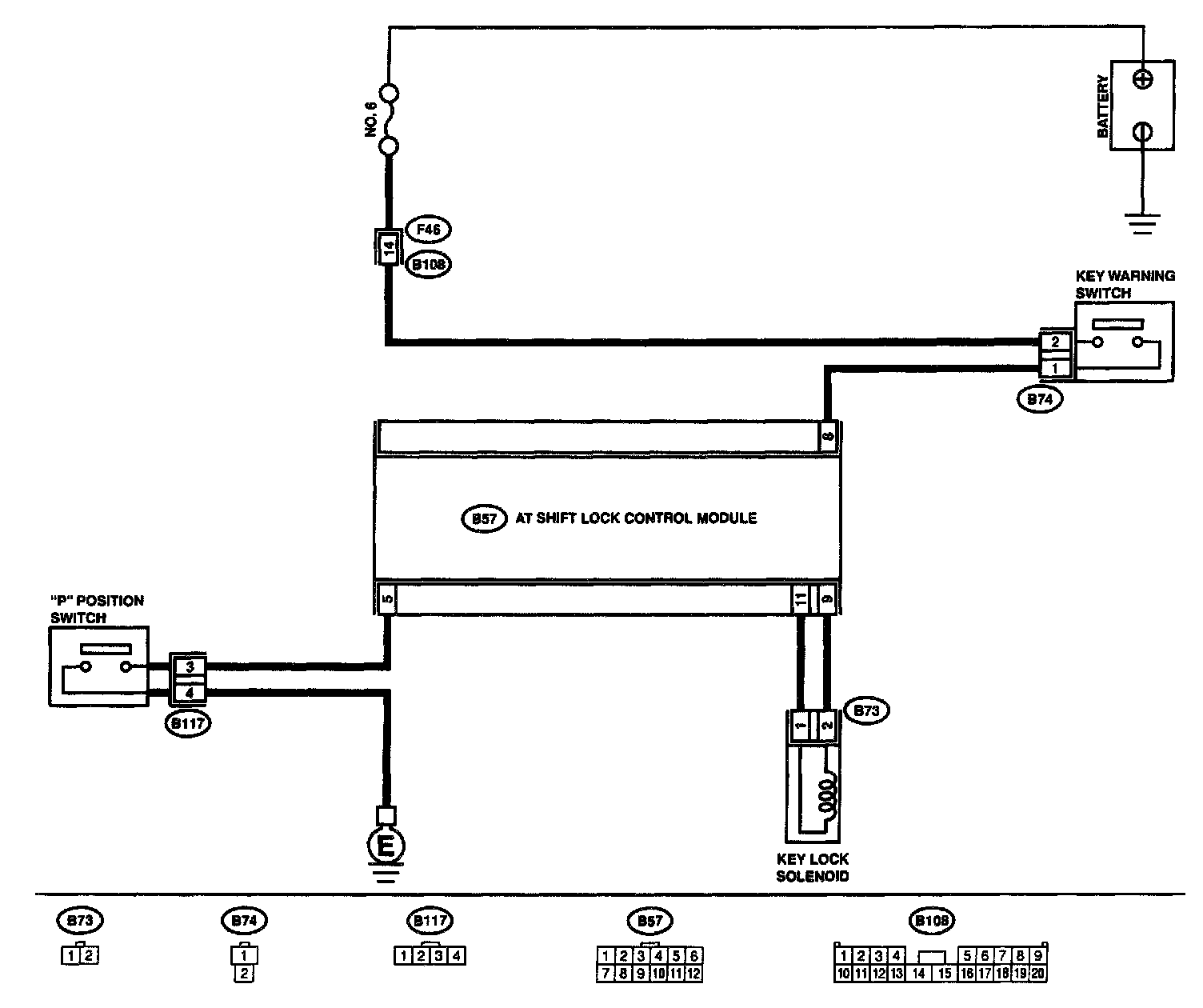

WIRING DIAGRAM
