Cabin Air Filter / Purifier: Service and Repair

Cabin Filter (Option)





NOTE: The filter can influence the air conditioning, heating and defroster performance.


Replacement Procedure

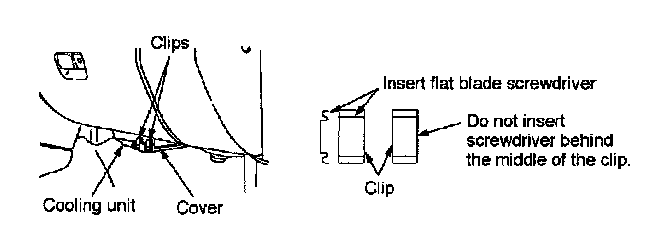

1. Remove the filter cover from the cooling unit by removing the two (2) clips with a blade screwdriver and unhooking the hinge. The screwdriver must be inserted into the top of the clip. Do not pry the middle on the clip.






2. Remove the old filters.

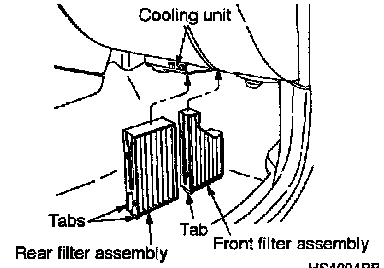

3. Insert the front filter assembly in the cooling unit, then install the rear filter assembly.


NOTE Hold the filter tabs to facilitate Installation. The passenger compartment side of each filter is marked with arrows (indicating "UP" and the direction of air flow). Ensure the arrows point in the correct directions. Ensure each filter assembly's tongues and grooves fit the corresponding cooling unit and matching filter tongues and grooves.







4. Reinstall the cover and secure it using the clips.


NOTE Ensure no air leaks from the cooling unit through the cover.


5. Fill in the maintenance label with the replacement date and mileage.

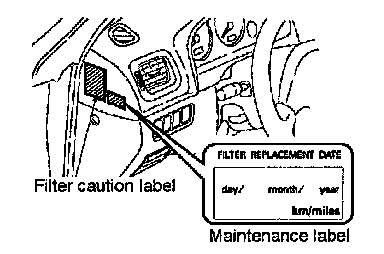

6. Install it on the left hand side of the instrument panel as shown.
The filter must be replaced every 7,500 mile (12,000 km) or 1 year.
The filter may need to be replaced more frequently in dusty areas.







7. Install the caution label on the left hand side of the instrument panel next to the maintenance label as shown above.
