Hose/Line HVAC: Service and Repair
CAUTION: When disconnecting/connecting hoses, do not apply excessive force. Confirm that no torsion and excessive tension exist after installing.
Seal the disconnected hose with a plug or vinyl tape to prevent contamination from entering.
Flexible Hose / REMOVAL
1. Disconnect ground cable from battery.
2. Using refrigerant recovery system, discharge refrigerant.

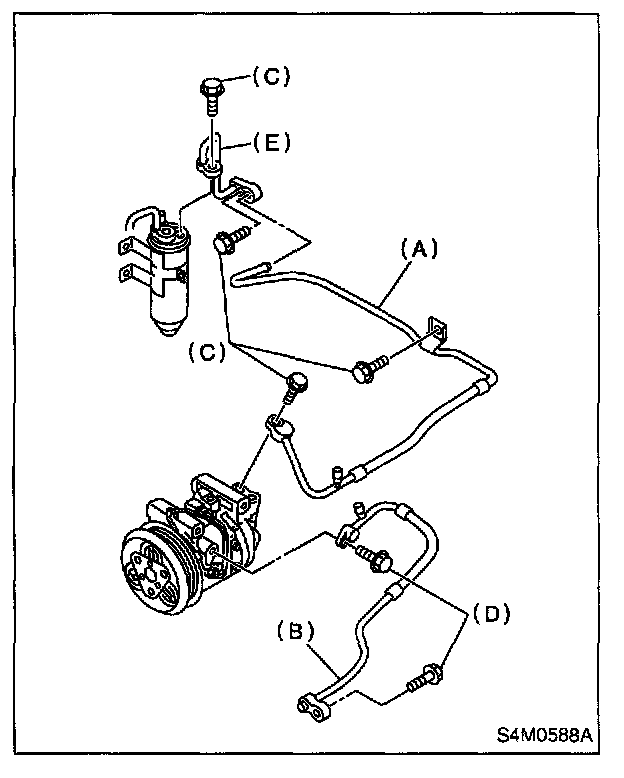

3. Remove hose attaching bolts (C).
4. Disconnect hose from evaporator unit.
5. Disconnect hose from compressor.
6. Remove low-pressure hose (A) from the vehicle.
7. Remove hose attaching bolts (D).
8. Disconnect hose from compressor.
9. Disconnect hose from condenser.
Flexible Hoses:
10. Disconnect high-pressure hose (B) from the vehicle.
CAUTION: When disconnecting/connecting hoses, do not apply excessive force. Confirm that no torsion and excessive tension exist after installing.
Seal the disconnected hose with a plug or vinyl tape to prevent contamination from entering.
INSTALLATION
1. Install in the reverse order of removal.
2. Charge refrigerant.
