Fluid - A/T: Service and Repair

B: REPLACEMENT
1. Lift-up the vehicle.

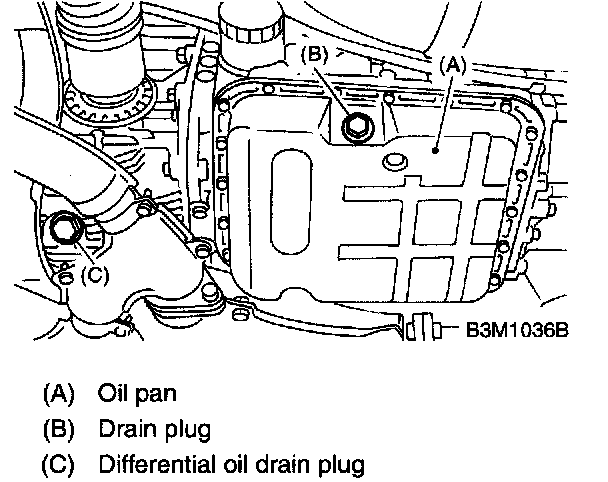

2. Drain the ATF completely.

CAUTION: Directly after the engine has been running, the ATF is hot. Be careful not to burn yourself.

NOTE: Tighten the ATF drain plug after draining the ATF.

Tightening torque: 25 Nm (2.5 kgf-cm, 18.1 ft. lbs.)
3. Lower the vehicle.
4. Pour ATF into the oil charge pipe.
Recommended fluid: Dexron III type automatic transmission fluid
Capacity: Fill the same amount of fluid drained from the drain plug hole.
Capacity when transmission is overhauled: 9.3 - 9.6 L (9.8 - 10.1 US qt. 8.2 - 8.4 Imp qt)
5. Check the level and leaks of the ATF.
