Ignition Coil: Service and Repair

Ignition System:

Ignition Coil and Ignitor Assembly

REMOVAL




1. Disconnect the ground terminal from battery.

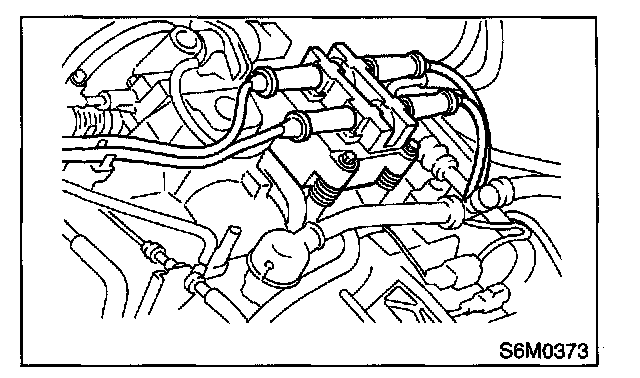

2. Disconnect the spark plug cords from ignition coil and ignitor assembly.
3. Disconnect the connector from ignition coil and ignitor assembly.

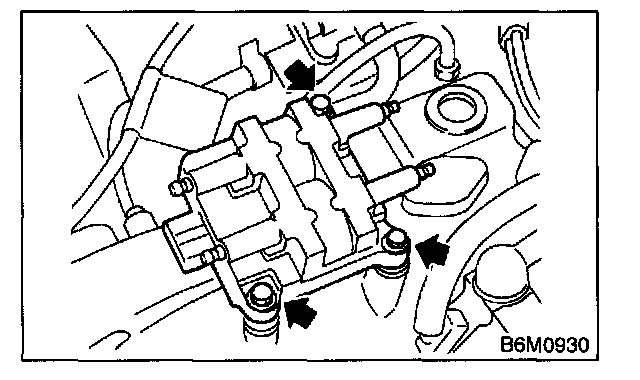

4. Remove the ignition coil and ignitor assembly.

INSTALLATION

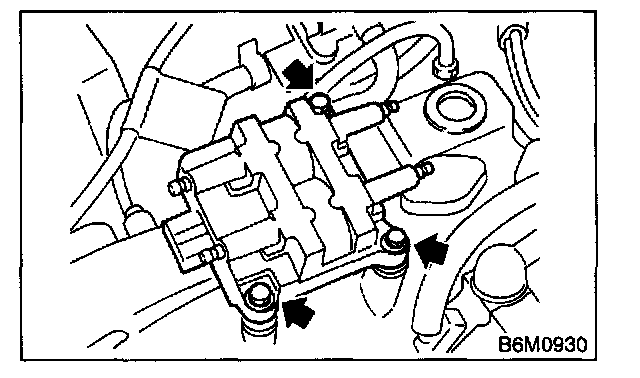

1. Install in the reverse order of removal.

Tightening Torque: 6.4 Nm (0.65 kgf-m, 4.7 ft. lbs)






CAUTION: Be sure to connect wires to their proper positions. Failure to do so will damage the unit.
