Basic Diagnostic Procedure

Basic Diagnostic Procedure

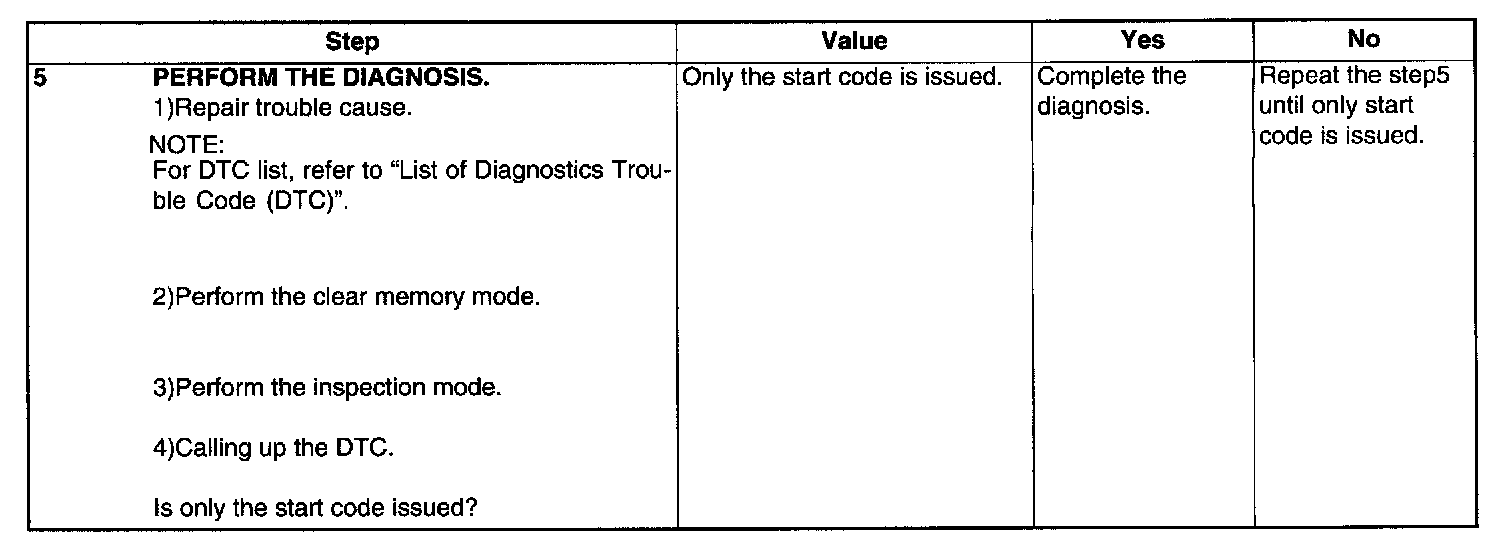

PROCEDURE
WITHOUT SUBARU SELECT MONITOR

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation.








NOTE:
^ To check the harness for broken wires or short circuits, shake it while holding it or the connector.
^ When the ABS warning light illuminates, read and record the diagnostic trouble code (DTC) indicated by ABS warning light.

WITH SUBARU SELECT MONITOR

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation.








NOTE:
^ To check the harness for broken wires or short circuits, shake it while holding it or the connector.
^ Check list for interview.
