Fuel Tank Sensor Control Valve

Fuel Tank Sensor Control Valve

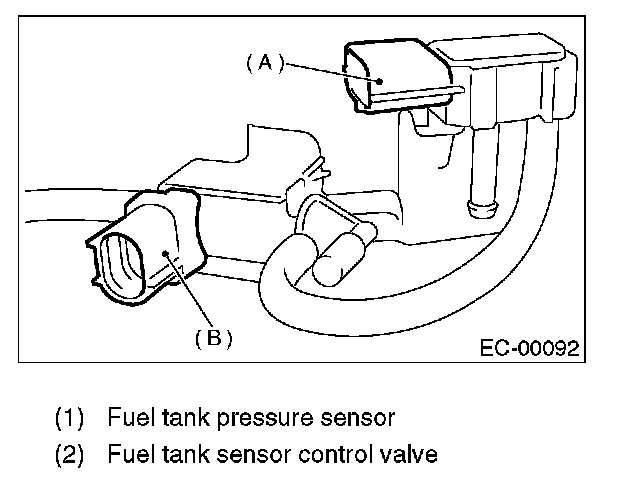

REMOVAL
1. Remove fuel tank pressure sensor.




2. Remove fuel tank sensor control valve from bracket.

INSTALLATION
Install in the reverse order of removal.
