Case: Service and Repair

Air Breather Hose

REMOVAL
1. Remove the air cleaner case or air intake chamber. (Non-TURBO model)
2. Remove intercooler. (TURBO model)
3. Disconnect the air breather hoses.

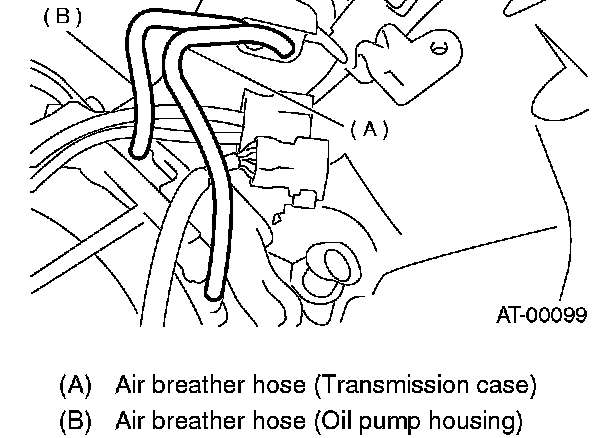

^ NON-TURBO MODEL

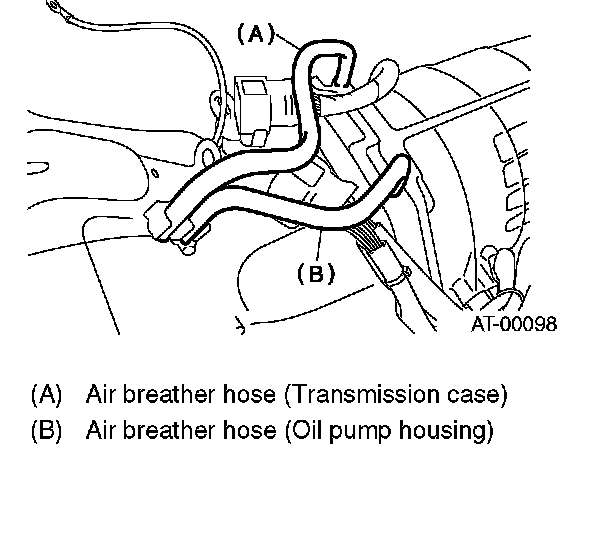

^ TURBO MODEL

INSTALLATION
1. Install air breather hoses.

NOTE: Be careful not to twist and bend hose.

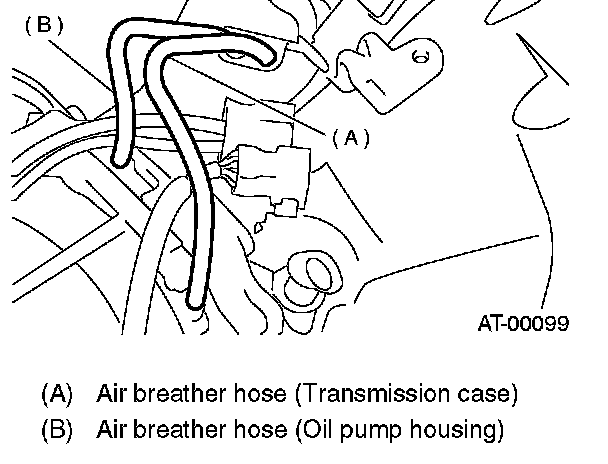

^ NON-TURBO MODEL

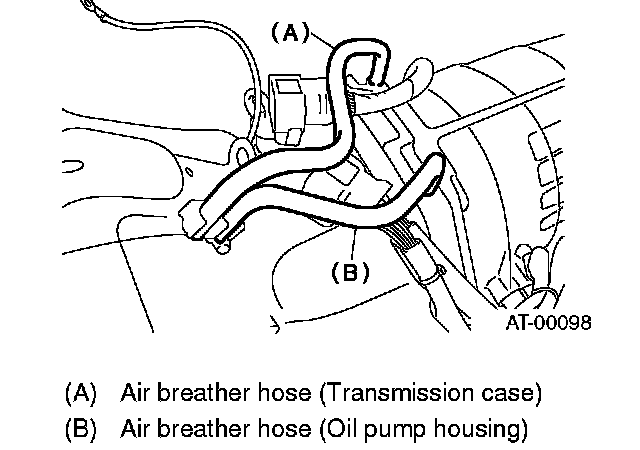

^ TURBO MODEL
2. Install the air cleaner case or air intake chamber. (Non-TURBO model)
3. Install intercooler. (TURBO model)

INSPECTION
Make sure the hose is not cracked or clogged.
