Subaru
>>
2006
>>
B9 Tribeca F6-3.0L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R2-R276 & AB17-AB52
R2-R276 & AB17-AB52
Left Hand

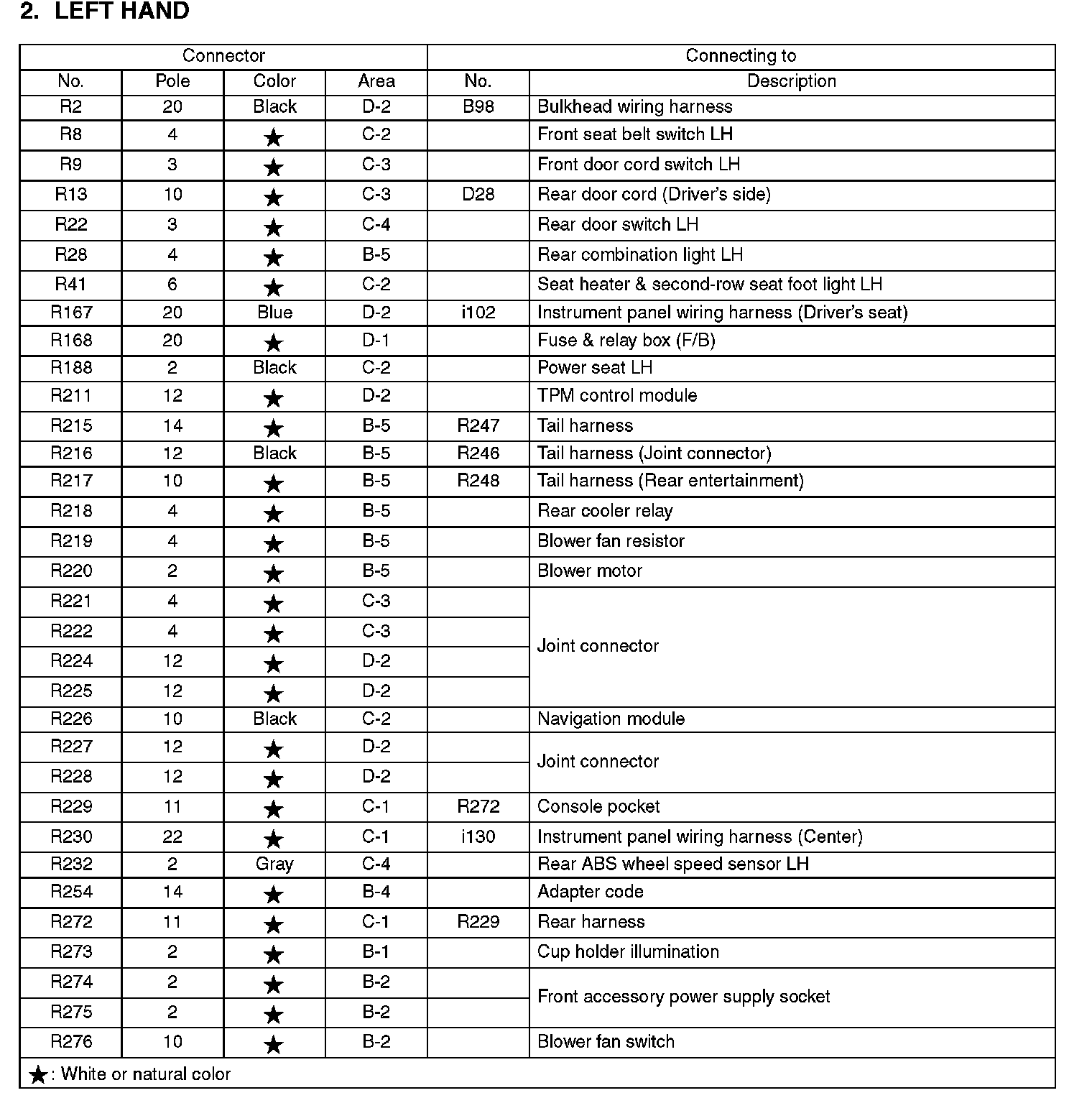

R2-R276:

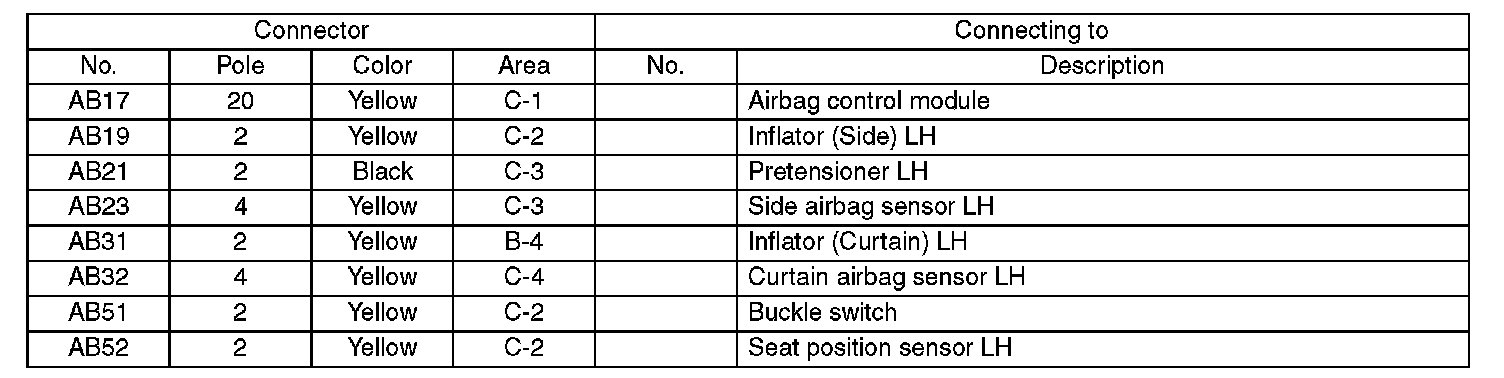

AB17-AB52:

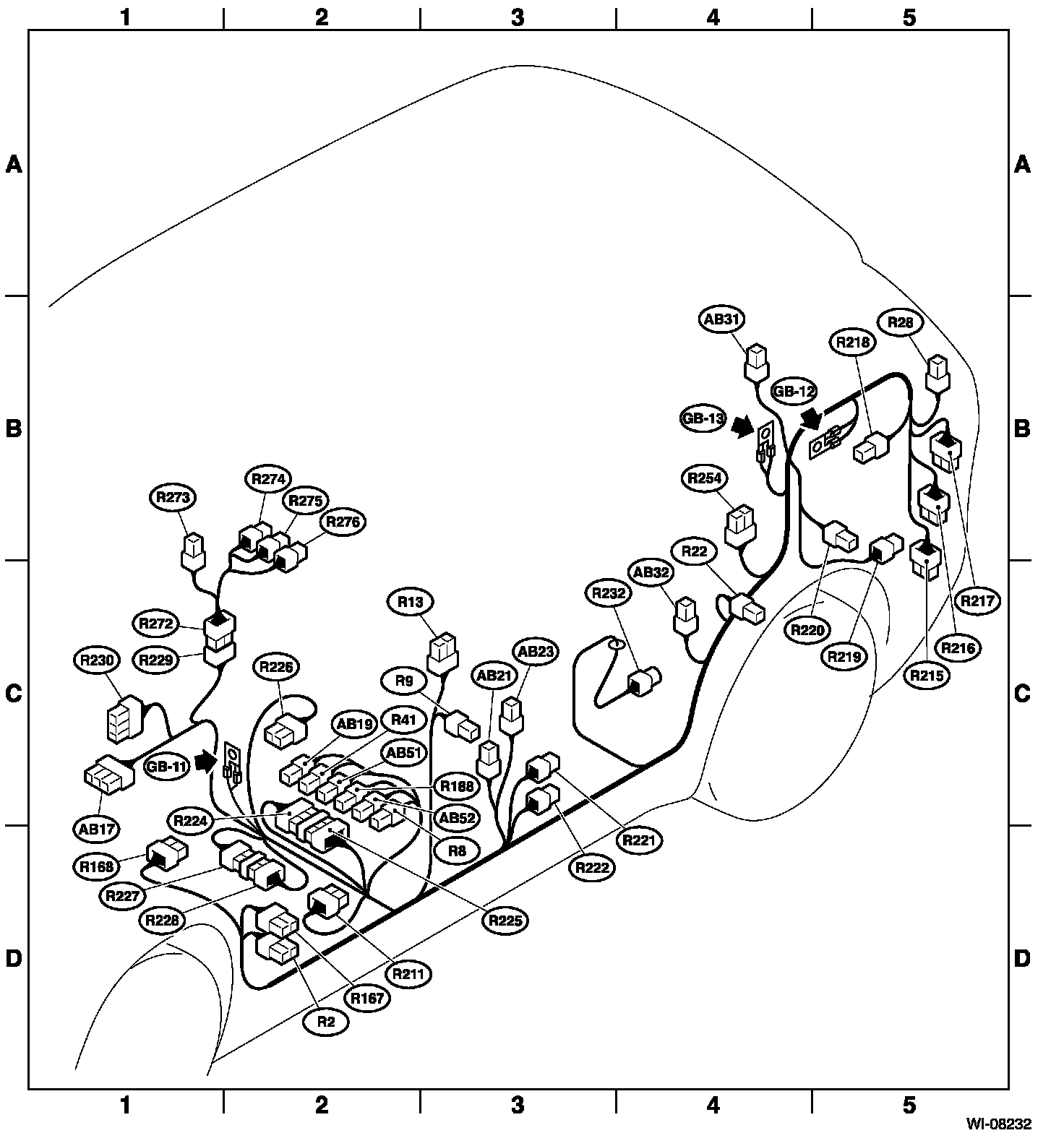

Area View:
