Power Transistor HVAC: Service and Repair

Heater Blower Resistor

REMOVAL
1. Remove glove box.

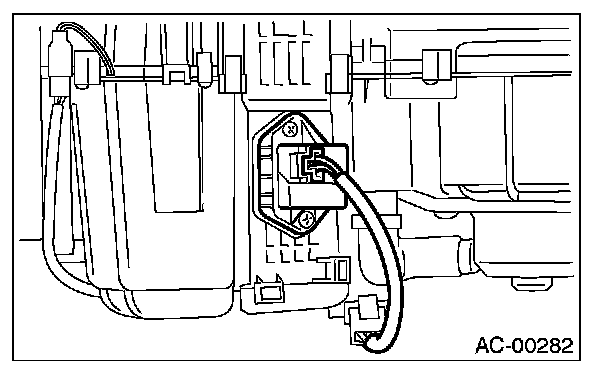

2. Disconnect blower resistor connector.




3. Loosen 2 screws to remove blower resistor.

INSTALLATION
Install in the reverse order of removal.
