Air Injection Control Valve: Service and Repair

Air Assist Injector Solenoid Valve

REMOVAL

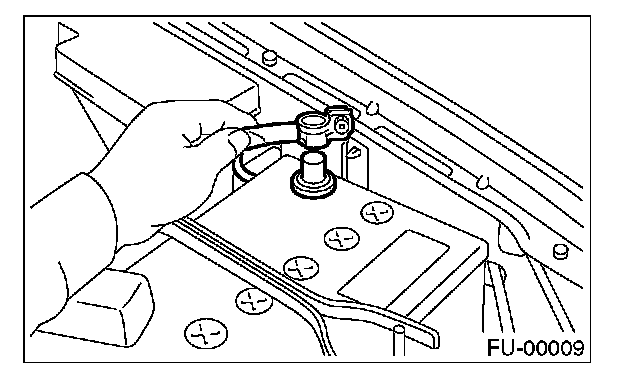

1. Disconnect ground cable from battery.

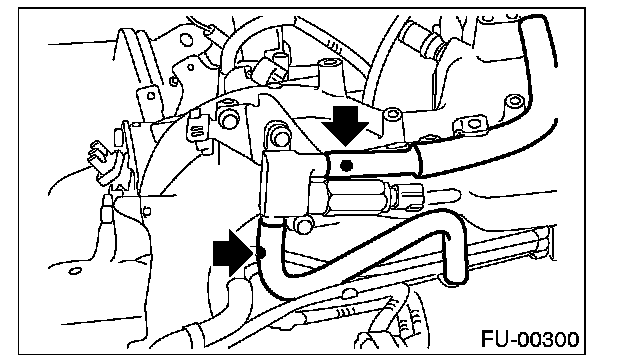

2. Disconnect connector from air assist injector solenoid valve and disconnect air by-pass hoses.

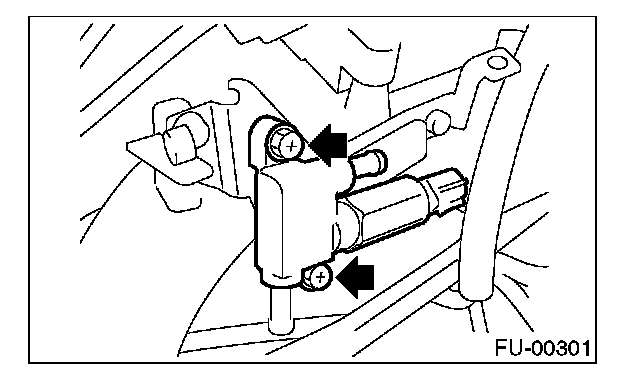

3. Remove air assist injector solenoid valve from intake manifold.

INSTALLATION

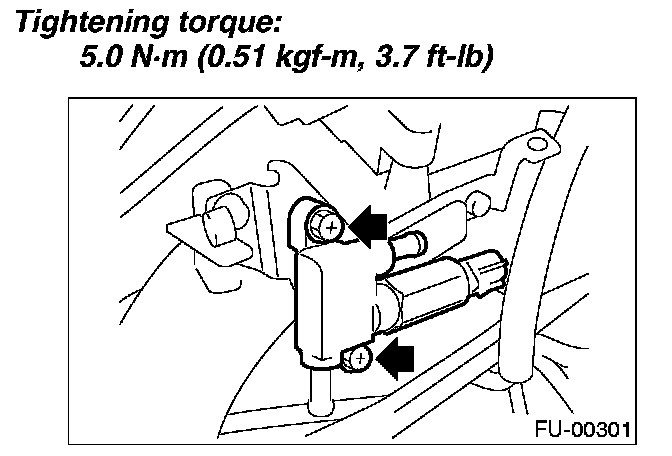

Install in the reverse order of removal.
