E3-E75 & T1-T7
E3-E75 & T1-T7
Engine Wiring Harness and Transmission Cord

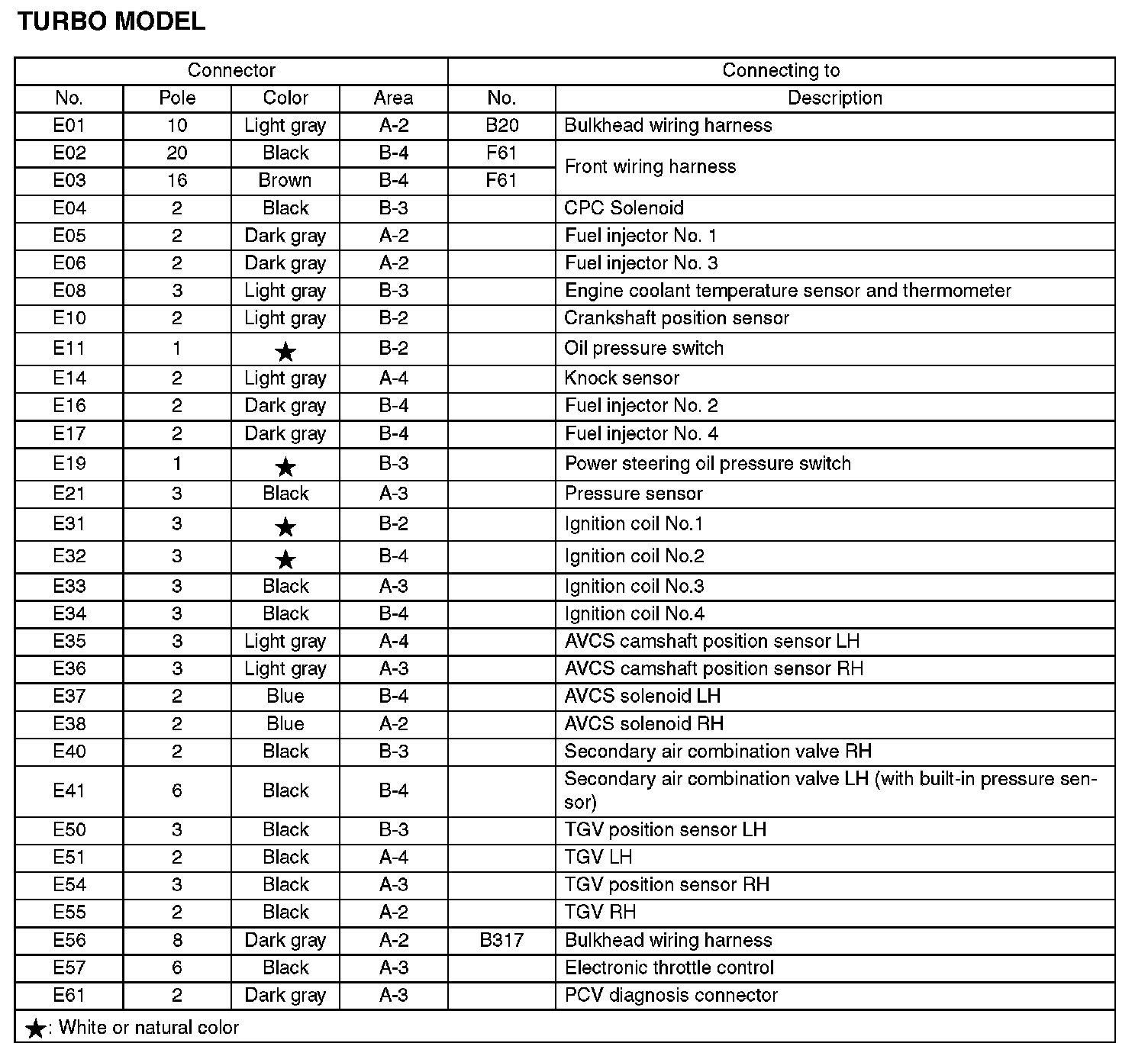

E01-E61:
T2-T9:
Area View:
