Air Injection Pump: Service and Repair

SECONDARY AIR PUMP

REMOVAL

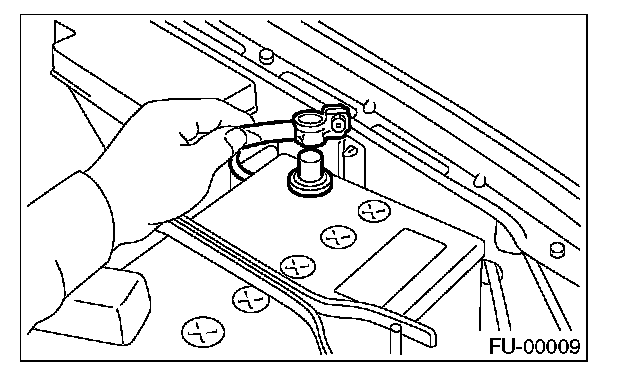

1. Disconnect the ground cable from battery.

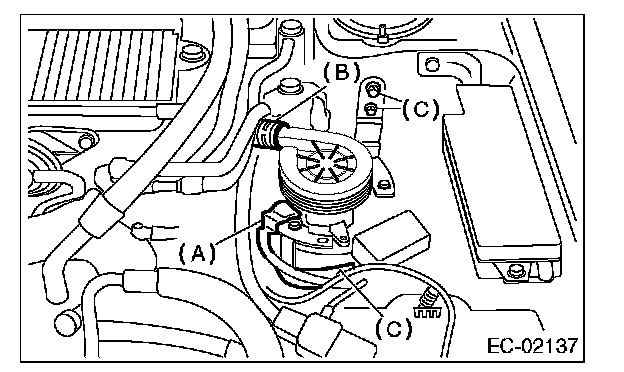

2. Disconnect the connector (A) from secondary air pump.
3. Disconnect the hose (B) from secondary air pump.




4. Remove the bolt (C) which secures the secondary air pump to the body.

INSTALLATION

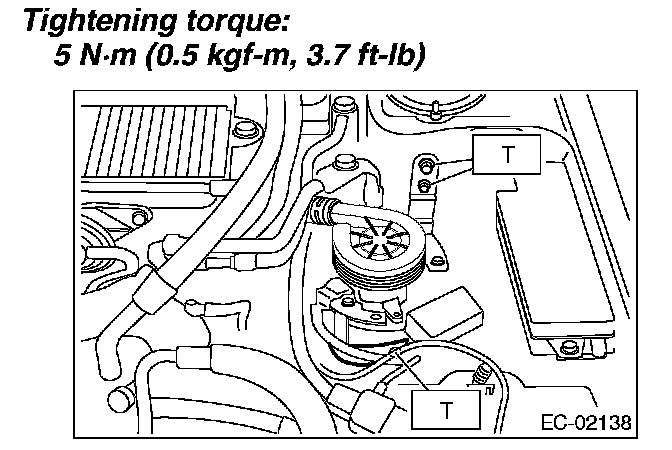

Install in the reverse order of removal.
