Case: Service and Repair

Air Breather Hose

REMOVAL
1) Remove the air intake chamber. (Non-turbo model)
2) Remove intercooler. (Turbo model)
3) Disconnect the air breather hoses.
^ Non-turbo model

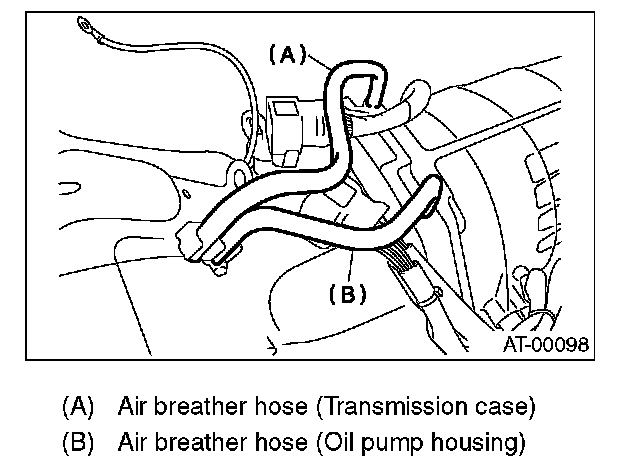

Non-turbo model:

^ Turbo model

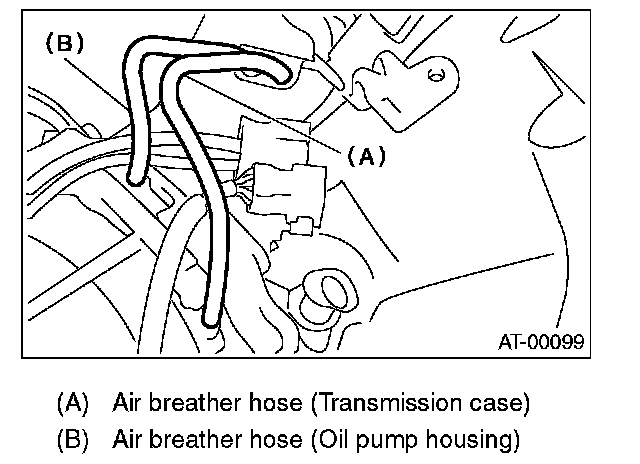

Turbo model:

INSTALLATION
1) Install air breather hoses.

NOTE:
Install so that the hose is not folded over, excessively bent, or twisted.

^ Non-turbo model

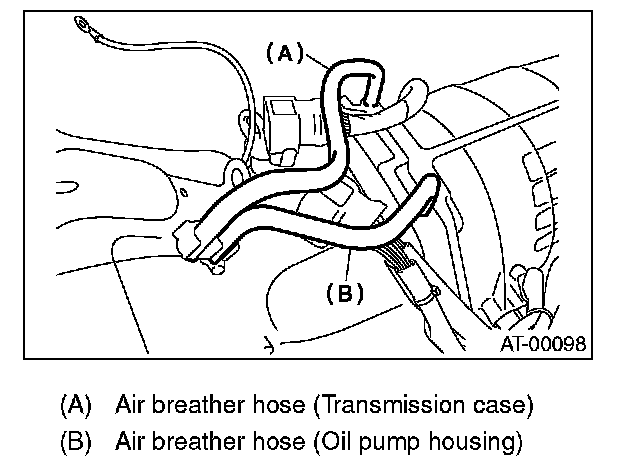

Non-turbo model:

^ Turbo model

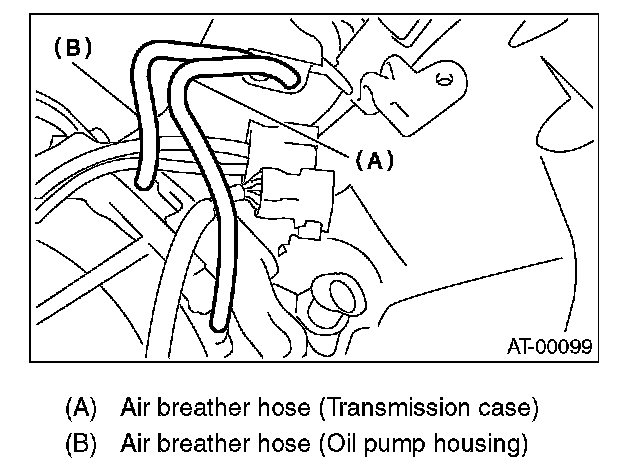

Turbo model:

2) Install the air intake chamber. (Non-turbo model)
3) Install intercooler. (Turbo model)

INSPECTION
Make sure the hose is not cracked or clogged.
