Air Register: Service and Repair

Air Vent Grille

REMOVAL

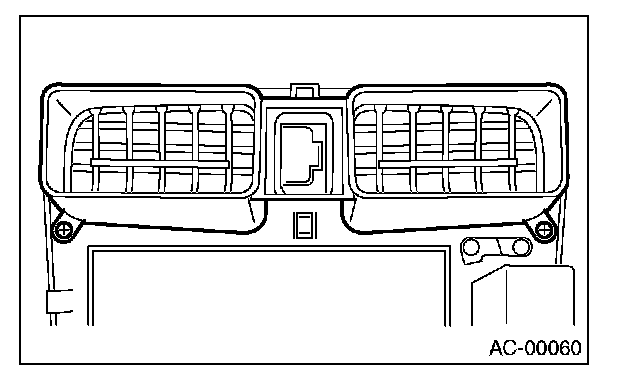

1. CENTER GRILLE
1. Disconnect the ground cable from the battery.
2. Remove the center console panel.
3. Loosen two screws to remove the center air vent grille.

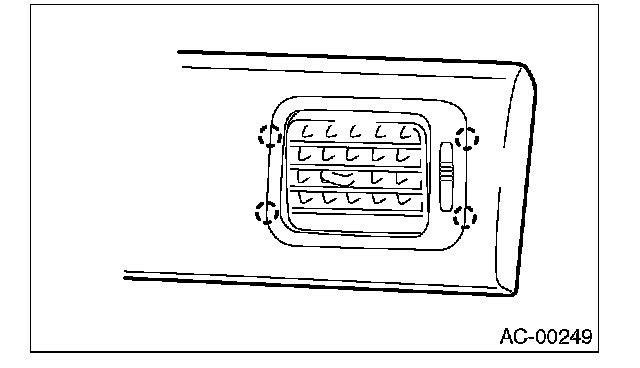

2. SIDE GRILLE
Remove the side vent grill by prying four points.






INSTALLATION
Install in the reverse order of removal.
