Evaporative Check Valve: Service and Repair

Vent Valve

REMOVAL

WARNING: Place "NO FIRE" signs near the working area.

CAUTION: Be careful not to spill fuel.

1. Remove the fuel tank.

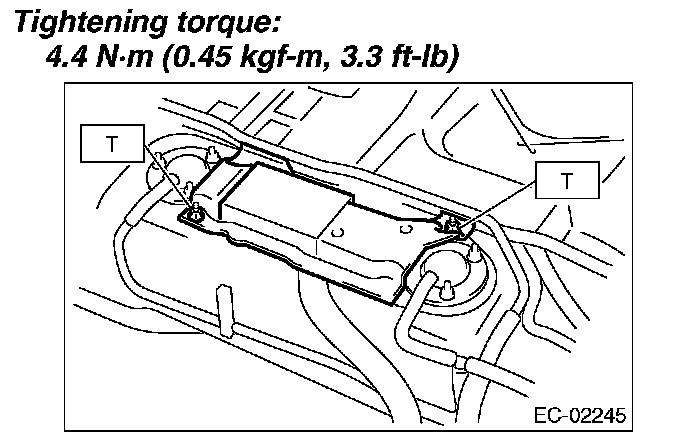

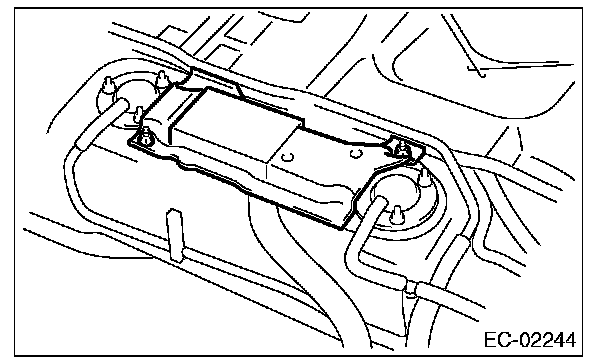

2. Remove the protect cover.






3. Remove the clip and disconnect the hose from the vent valve.






4. Remove the nut and then remove the vent valve.






INSTALLATION
Install in the reverse order of removal.

NOTE: Use a new gasket.
