Overhaul

Washer Tank and Motor

DISASSEMBLY

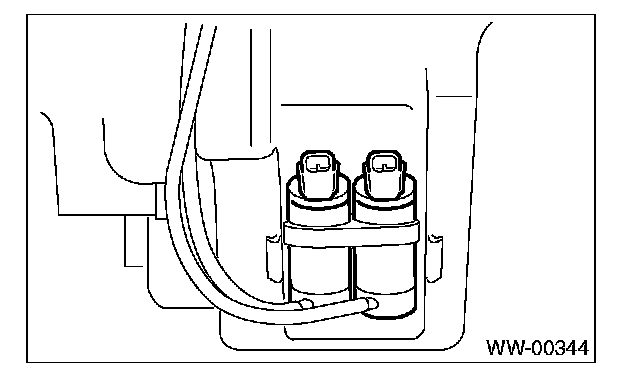

Pull out the washer motor from tank.






ASSEMBLY
1. Assemble in the reverse order of disassembly.
2. Confirm that water does not leak from installation area of motor.

INSPECTION

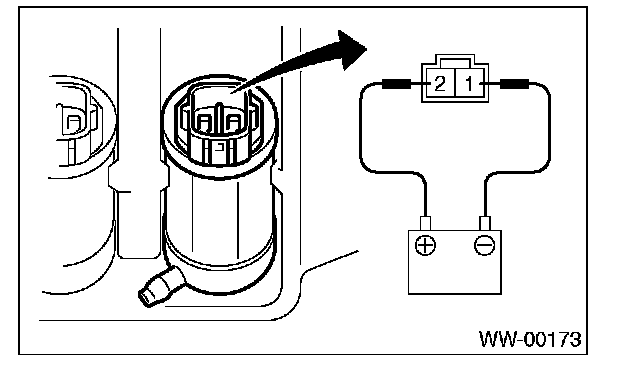

Apply battery voltage to the connector terminal of the washer motor and make sure the motor operates.
