Pinout Values and Diagnostic Parameters

Control Module I/O Signal

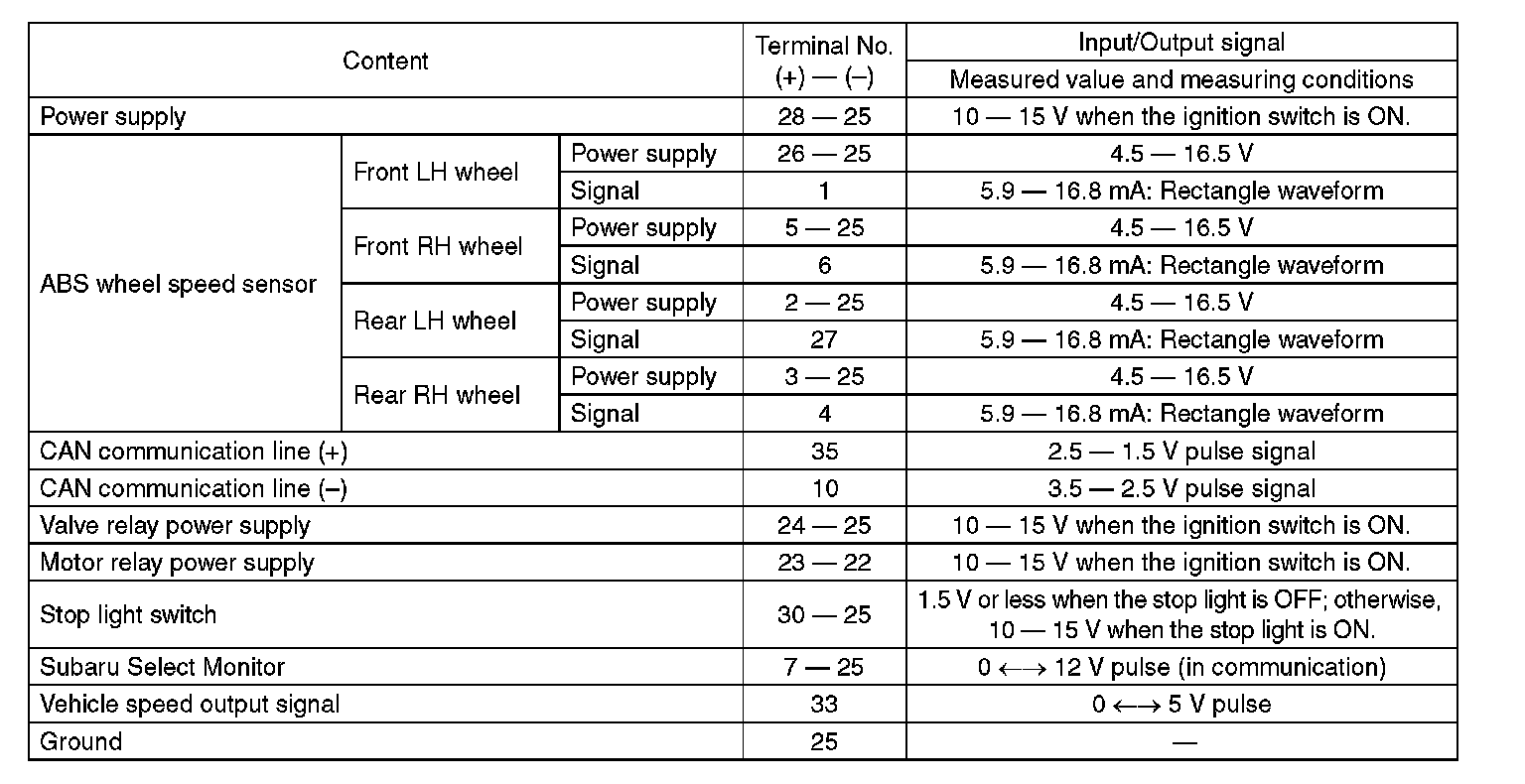

ELECTRICAL SPECIFICATION





NOTE:
- Terminal numbers in VDCCM&H/U connector are shown in the figure.
- When the connector is removed from the VDCCM&H/U, the brake warning light (EBD warning light), ABS warning light, VDC warning light, VDC multi mode indicator light, and the hill start assist warning light illuminate.





WIRING DIAGRAM

WIRING DIAGRAM (Part 1):

WIRING DIAGRAM (Part 2):
