PCV Valve Hose: Testing and Inspection
PCV
Hose Assembly
INSPECTION
1.

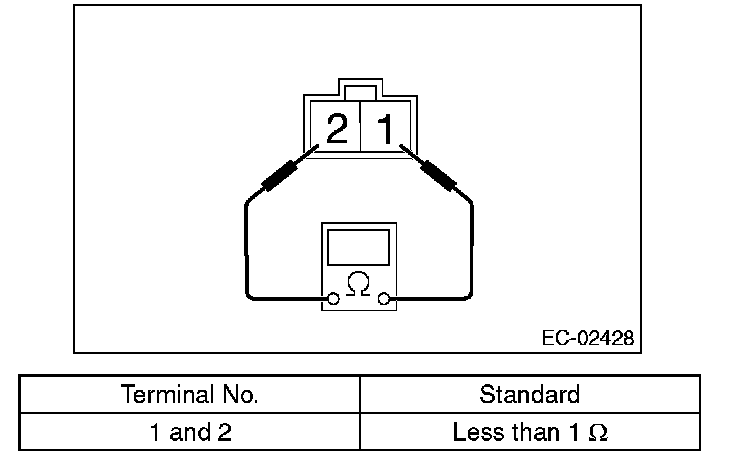

Measure the resistance between
PCV
hose assembly terminals.
2.
Make sure that there are no cracks or other damages on
PCV
hose assembly.
