Blower Motor Resistor: Testing and Inspection

BLOWER RESISTOR (MANUAL A/C MODEL)

INSPECTION
1. Disconnect the blower resistor connector.

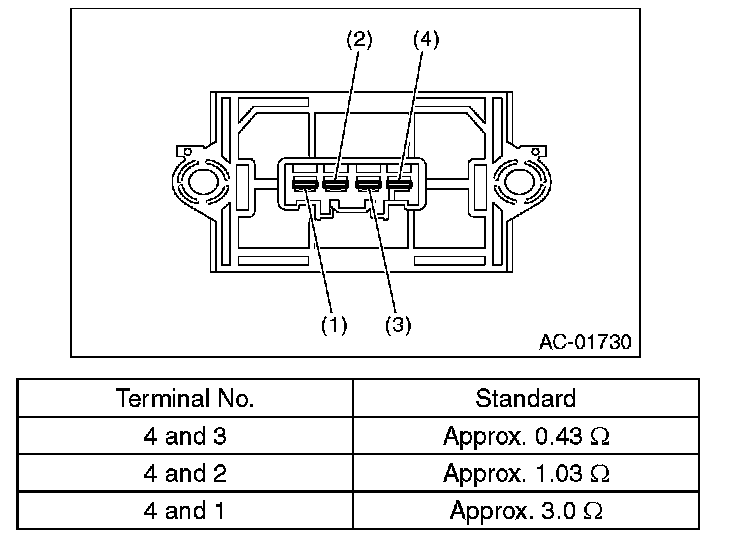

2. Check the resistance between blower resistor terminals.






3. Replace the blower resistor if the inspection result is not within the standard value.
