Overhaul

Leak Check Valve Assembly

DISASSEMBLY

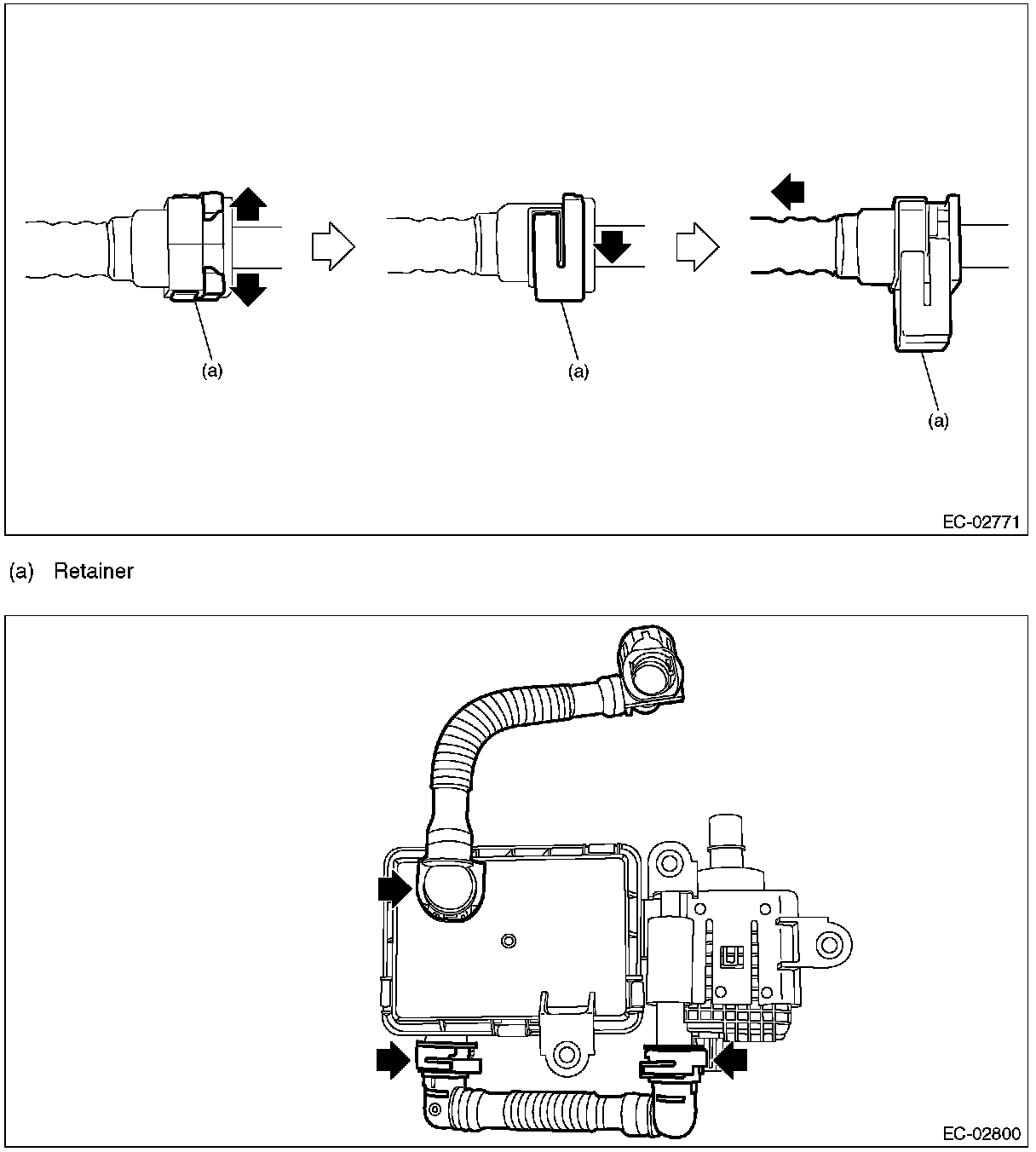

Disconnect the drain tube from the leak check valve assembly.

NOTE: Disconnect the quick connector as shown in the figure.






ASSEMBLY

Assemble the parts in the reverse order of disassembly while being careful of the following.

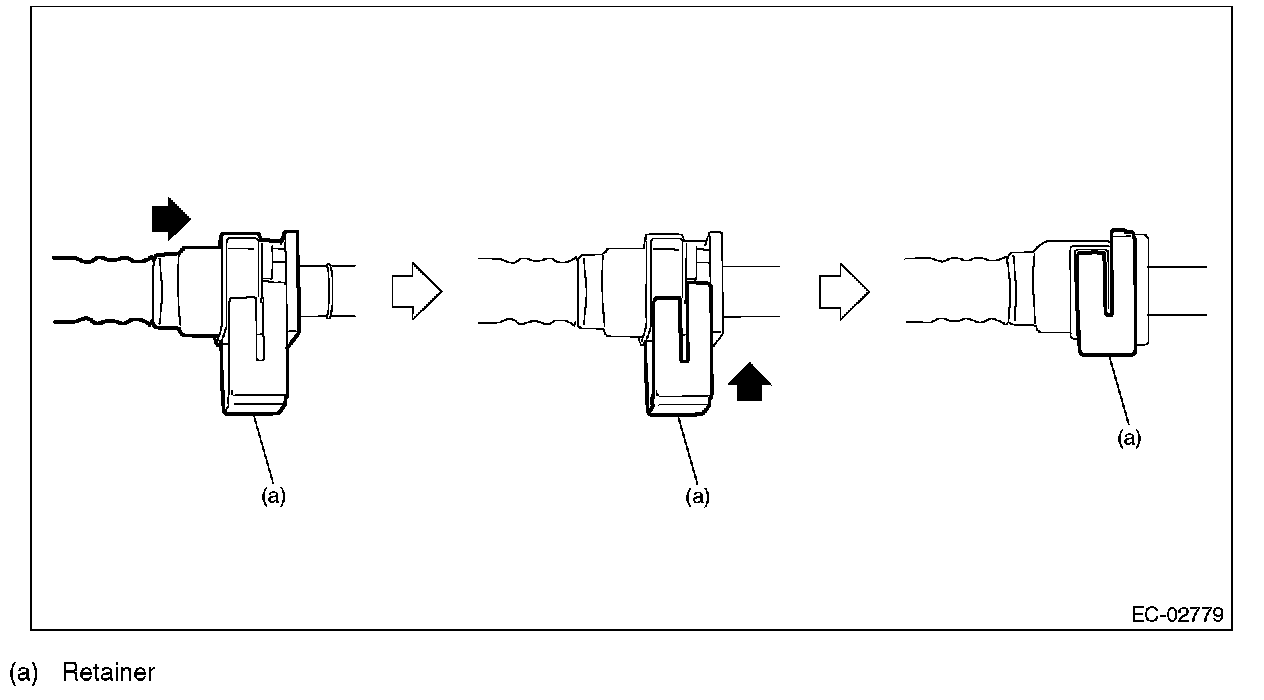

- Connect the quick connector as shown in the figure.

CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, securely insert the pipe all the way before locking the retainer.
- If it is not possible to perform the push lock operation of the retainer, recheck whether the pipe is securely inserted.
- Make sure that the quick connector is securely connected.
