MT Model

Assembly

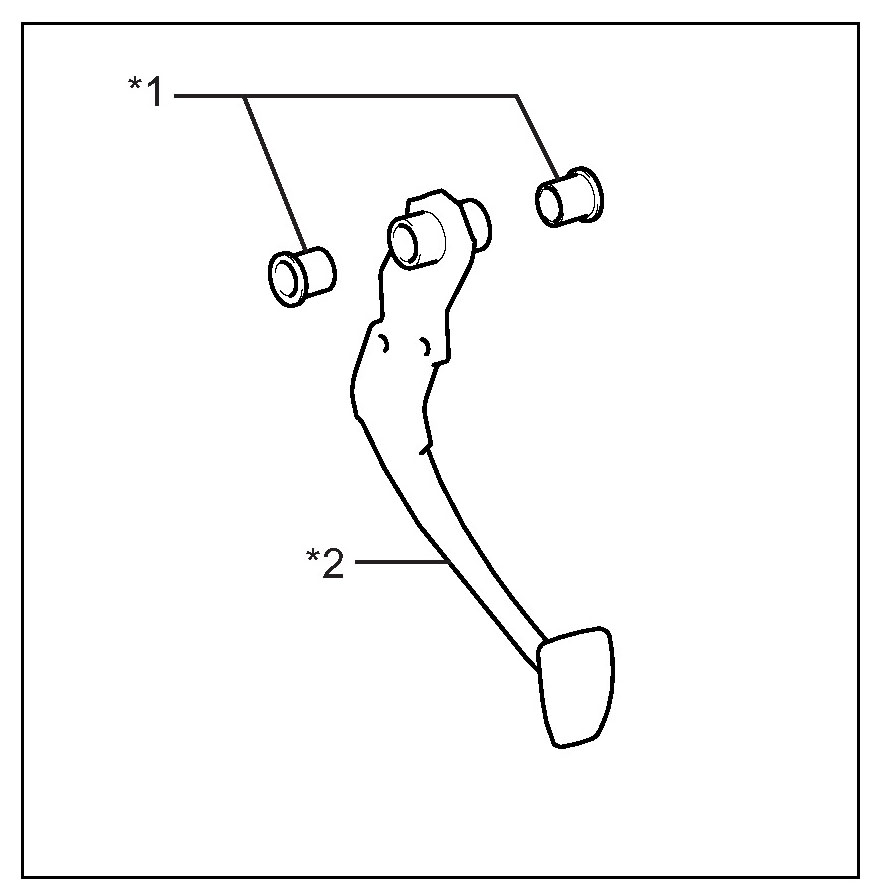

1. Installation of brake pedal bushings
(1) Install the brake pedal bushings to the brake pedal.

Captions in illustration








2. Installation of brake pedal
(1) Apply NIGTIGHT LYW No.2 to the brake pedal return spring and clutch master cylinder bracket.

Captions in illustration

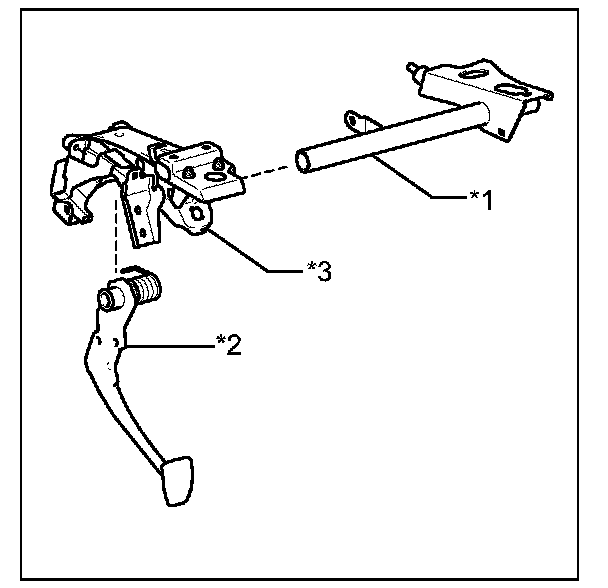

(2) Install the clutch master cylinder bracket and brake pedal to the brake pedal support SUB-ASSY.

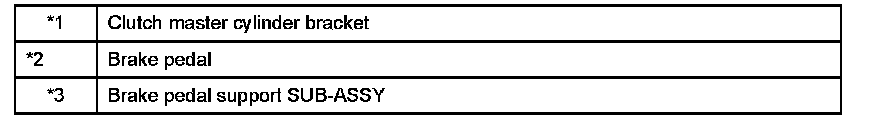

Captions in illustration

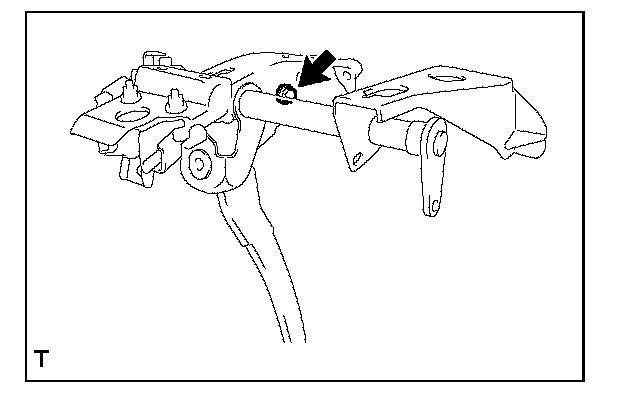

(3) Install the bolts.
Standard value:T=18Nm {184kgf-cm} {13.3ft-lbf}
