Rear Brake

Assembly

1. Temporarily tightening of rear disc brake bleeder plug
(1) Temporarily tighten the rear disc brake bleeder plug to the disc brake cylinder ASSY RR LH.
2. Installation of rear disc brake bleeder plug cap
(1) Install the rear disc brake bleeder plug cap to the rear disc brake bleeder plug.





3. Installation of piston seal

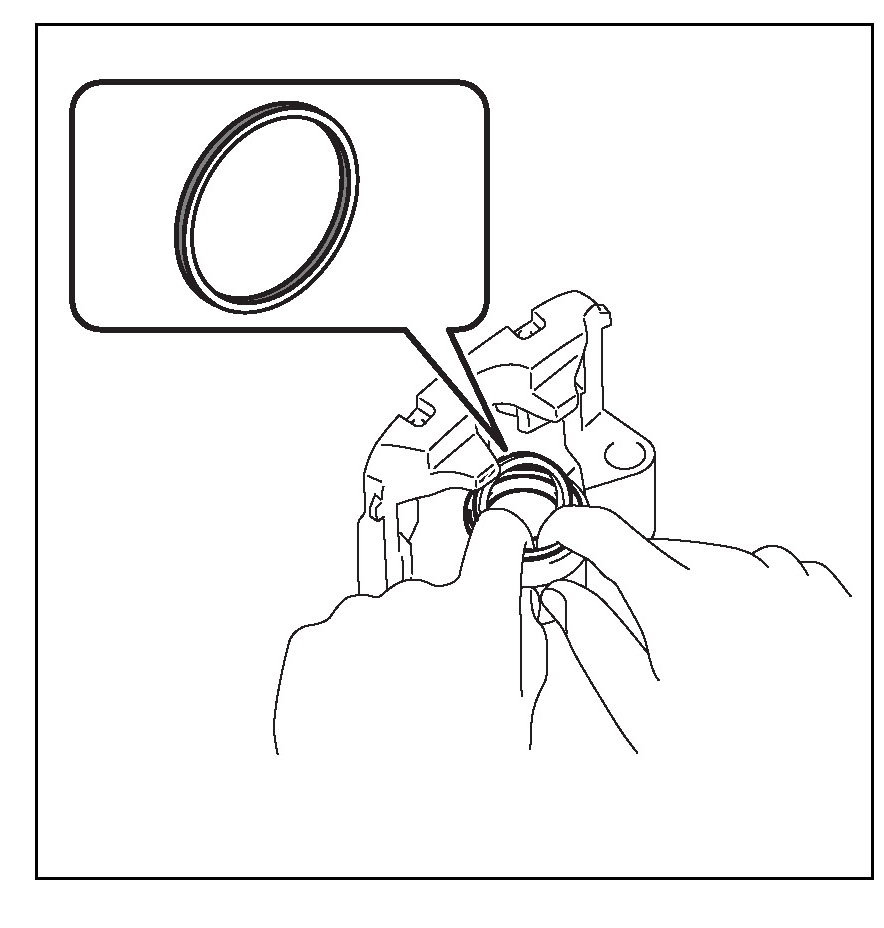

(1) Apply rubber grease to a new piston seal and install it in the disc brake cylinder groove.

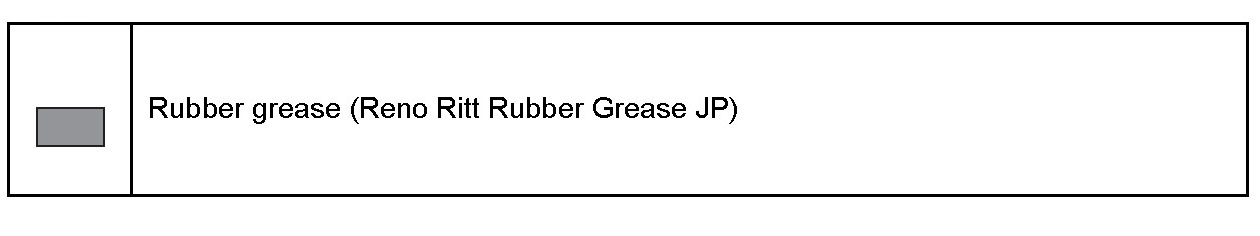

Captions in illustration








4. Installation of cylinder boot
(1) Apply a thin coat of rubber grease to the outer periphery of the disc brake piston.

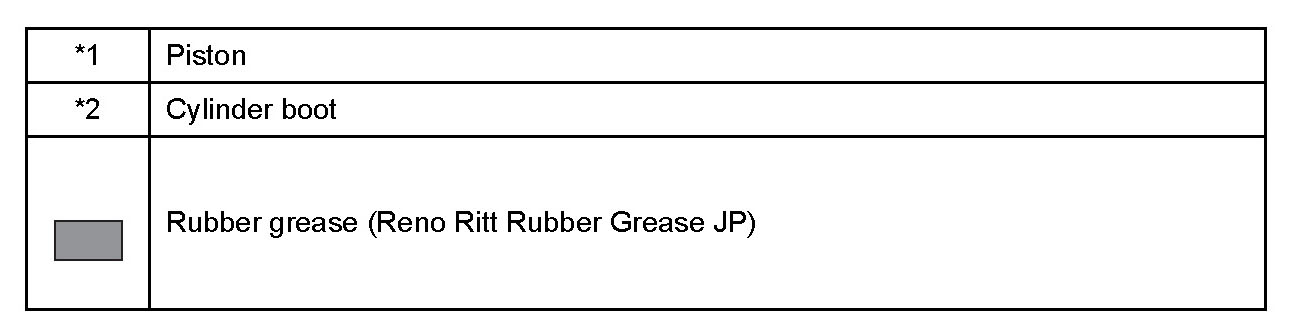

Captions in illustration

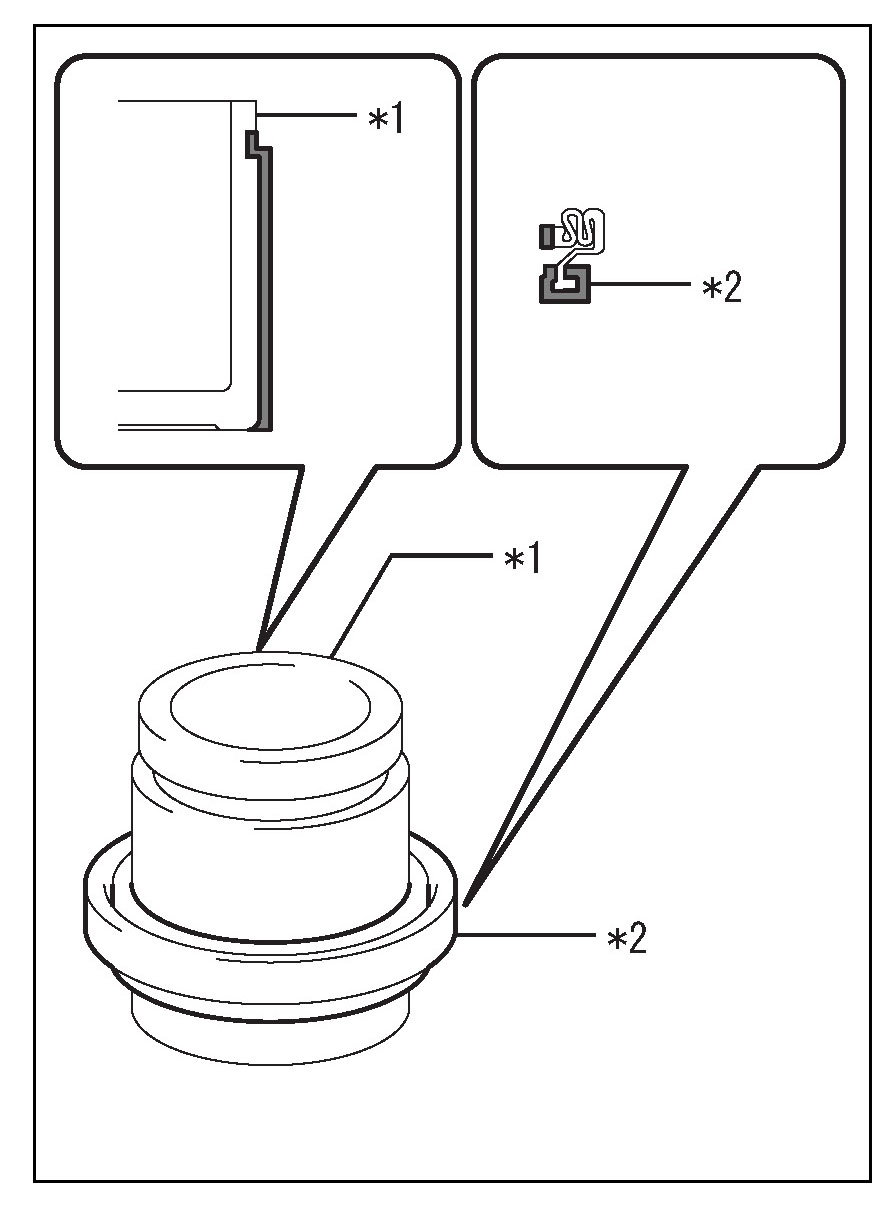

(2) Apply rubber grease to a new cylinder boot and install it to the bottom of the disc brake piston as shown in the figure.





5. Installation of rear disc brake piston

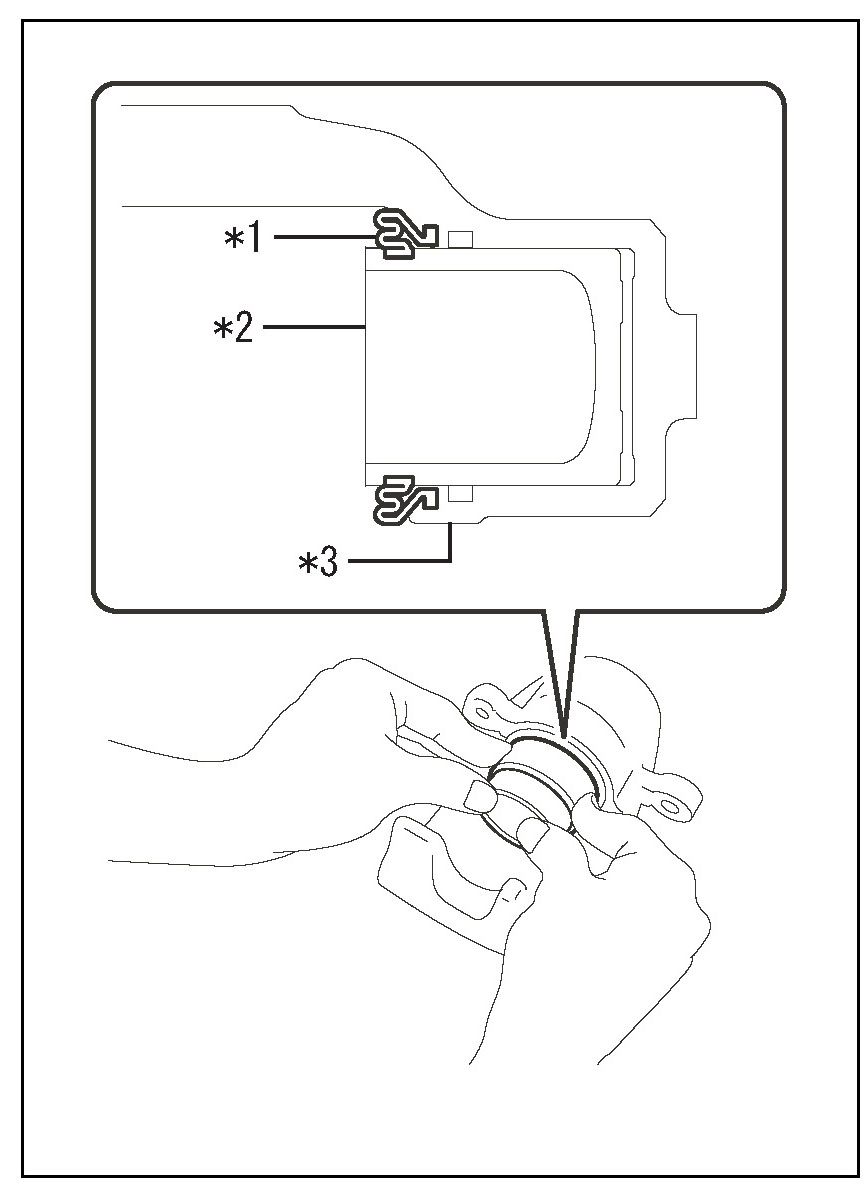

(1) Attach the cylinder boot's seal part to the disc brake cylinder groove.

Captions in illustration





CAUTION:
Make sure that the cylinder boot's seal part is securely attached.

(2) Push in the piston by hand, and attach the boot's seal part to the piston groove.

CAUTION:
Make sure that the cylinder boot's seal part is securely attached.
