Heater Control Panel
Heater Control PanelREMOVAL
1. Disconnect negative (-) cable at battery.
2. If equipped with air bag system, disable air bag system.
3. Pull off control lever knobs.

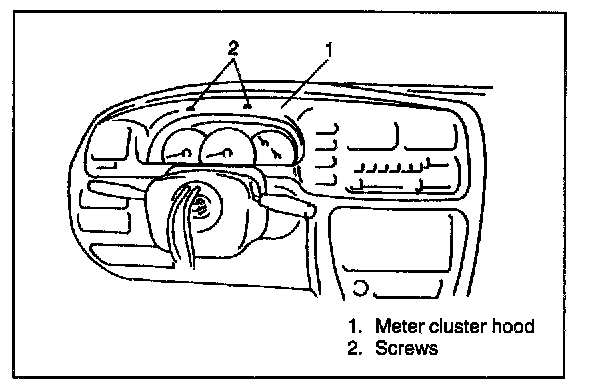

4. Remove meter cluster hood.

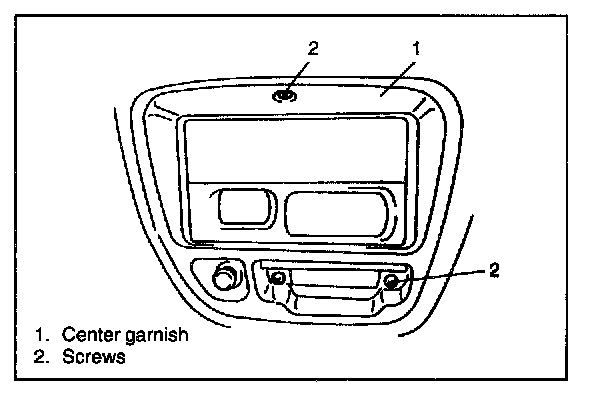

5. Remove ashtray, center garnish and instrument glove box compartment (if equipped) or radio (if equipped).

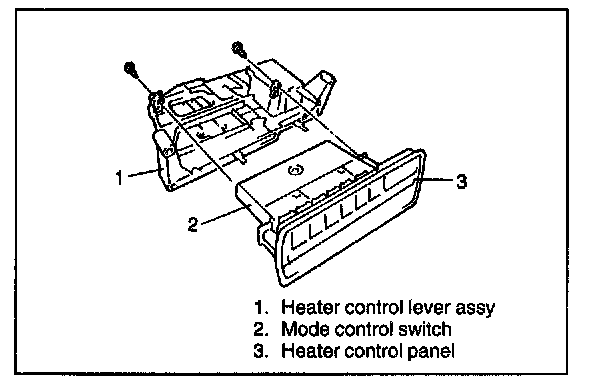

6. Remove mode control switch with heater control panel.
7. Remove heater control panel from mode control switch.
INSTALLATION
1. Install in reverse order of removal procedure.
2. If equipped with air bag system, enable air bag system.
