Symptom Diagnostic Tables

CRUISE CONTROL SYSTEM SYMPTOM DIAGNOSIS

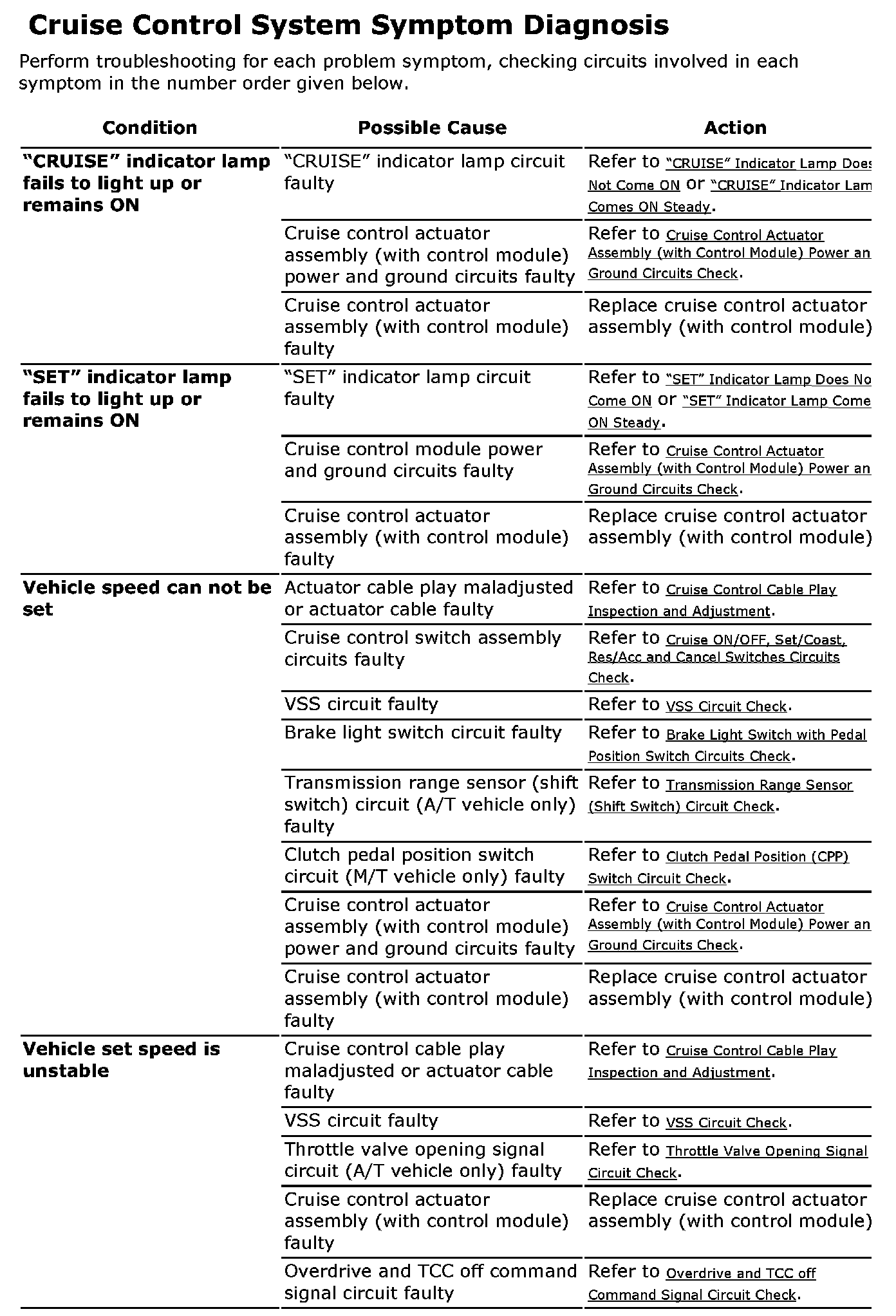

Cruise Control System Symptom Diagnosis Part 1:

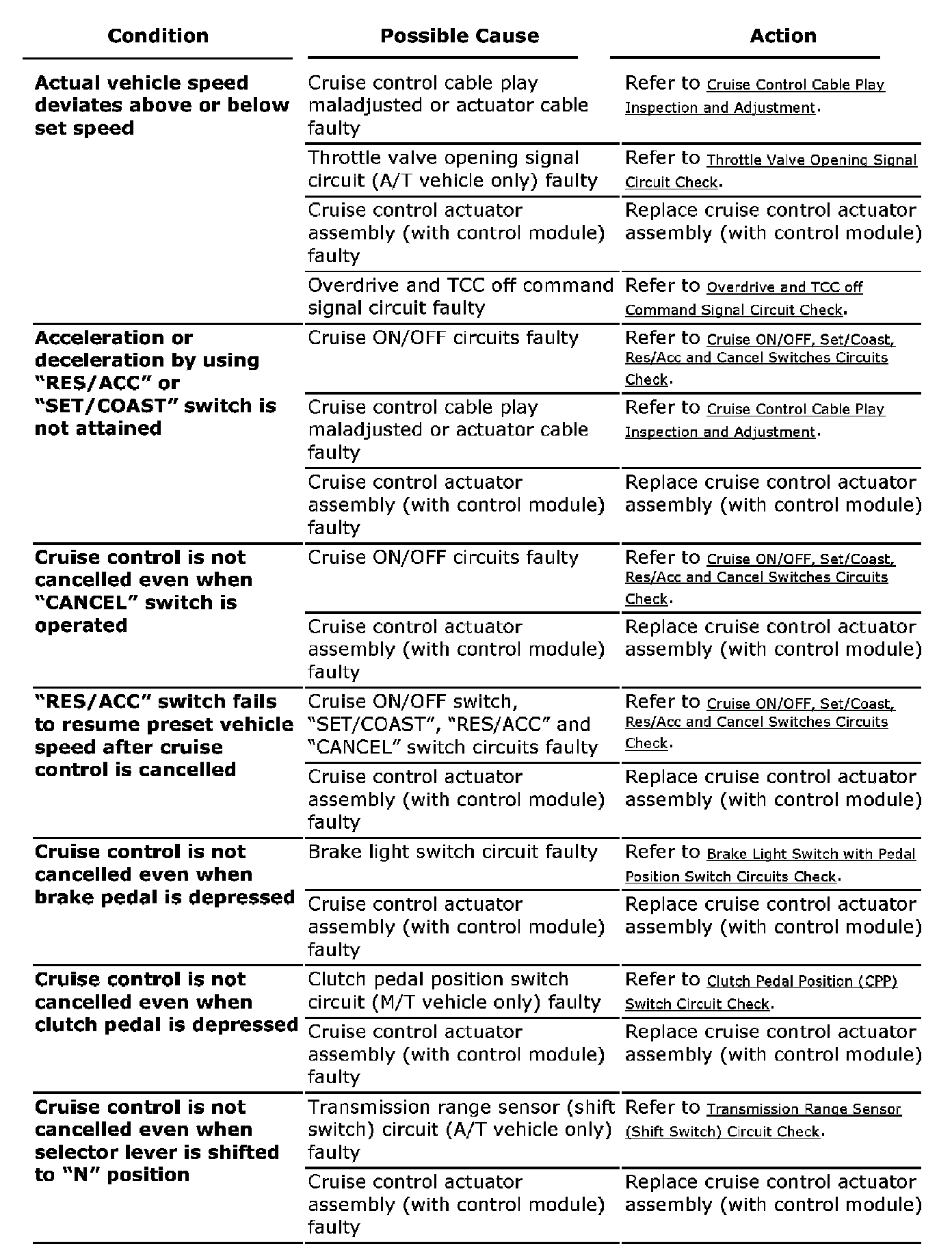

Cruise Control System Symptom Diagnosis Part 2:

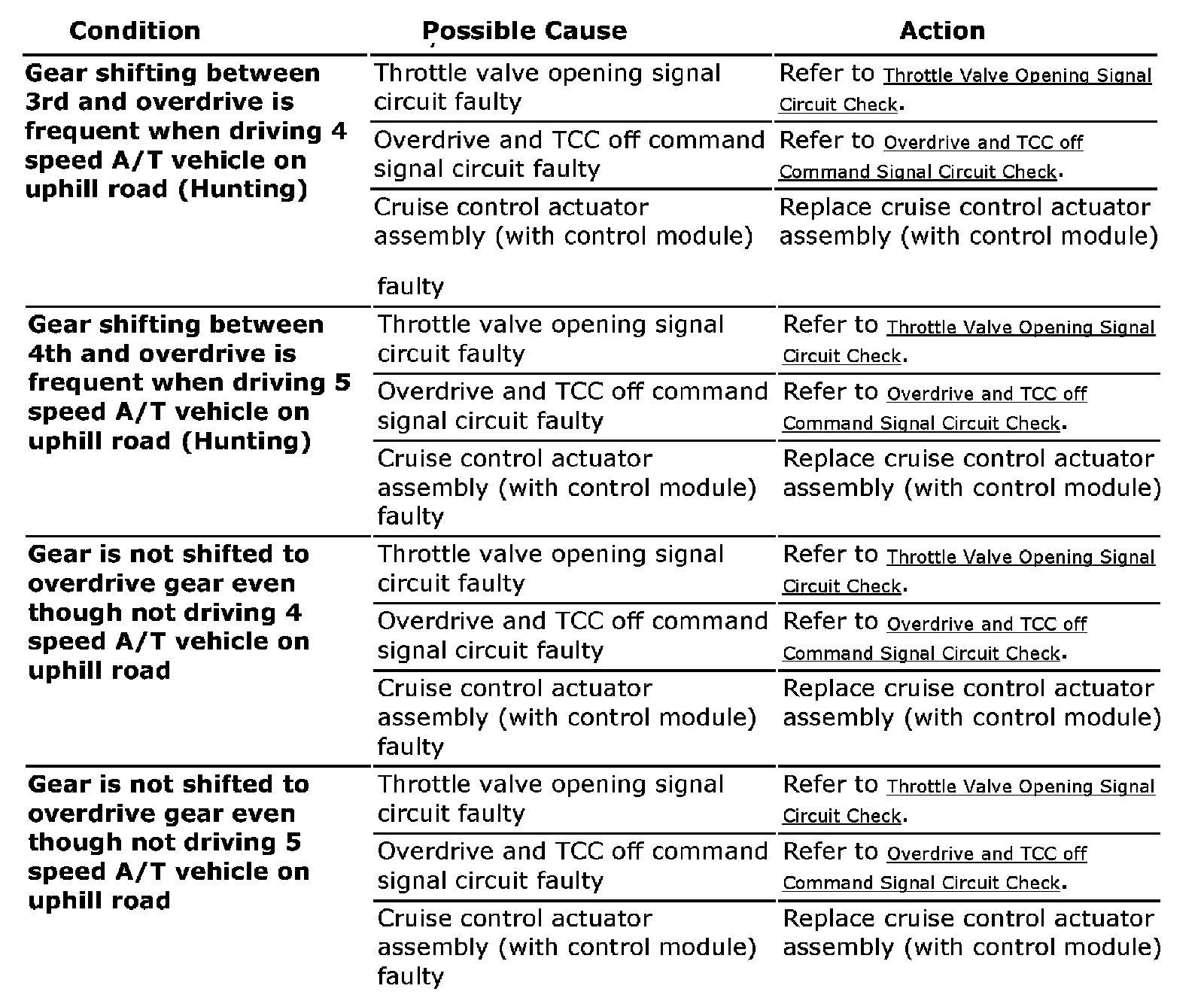

Cruise Control System Symptom Diagnosis Part 3:




Perform troubleshooting for each problem symptom, checking circuits involved in each symptom in the number order given below.
