Suzuki Truck
>>
2005
>>
XL-7 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G Connectors
G Connectors

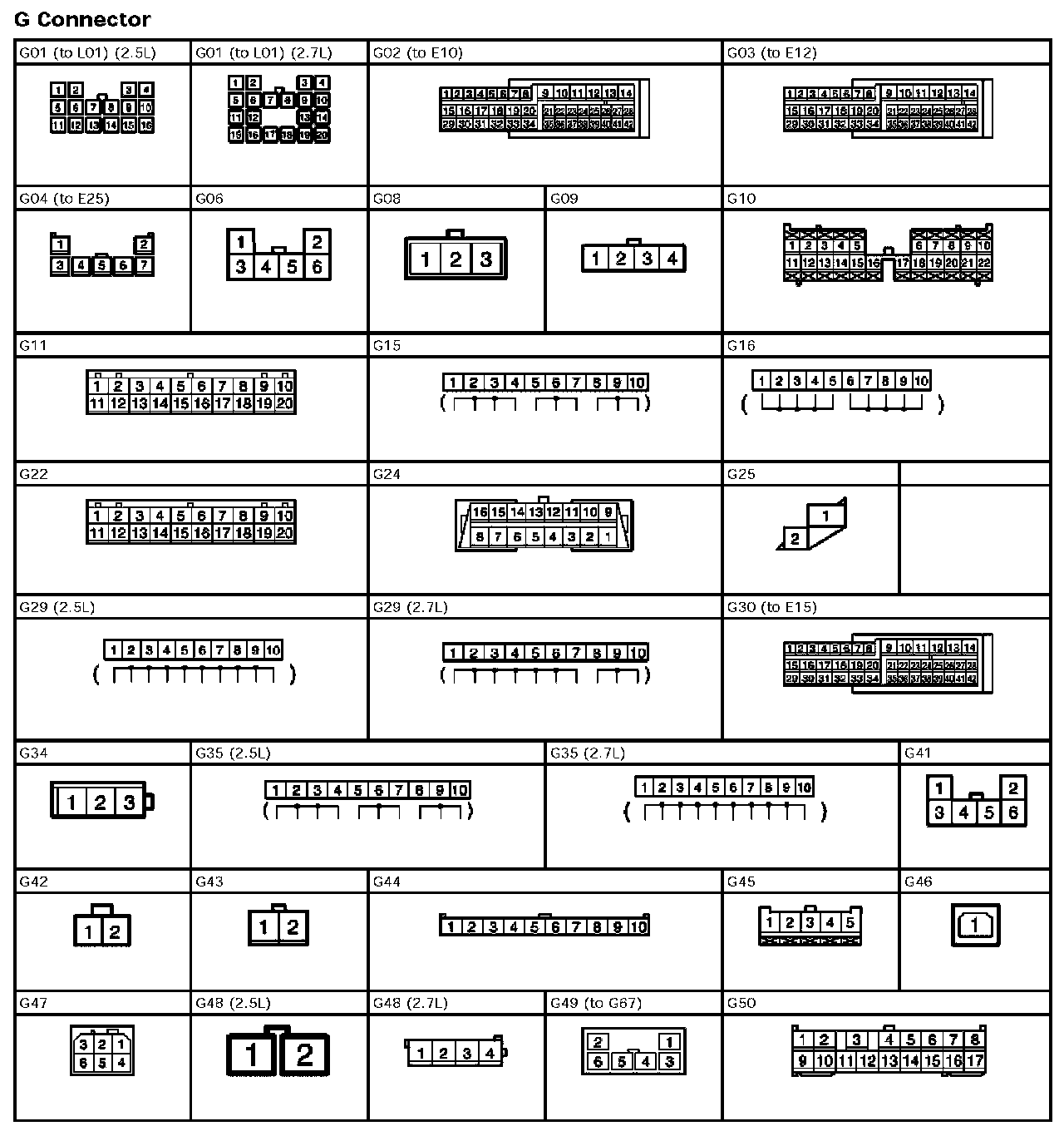

G01 - G50:

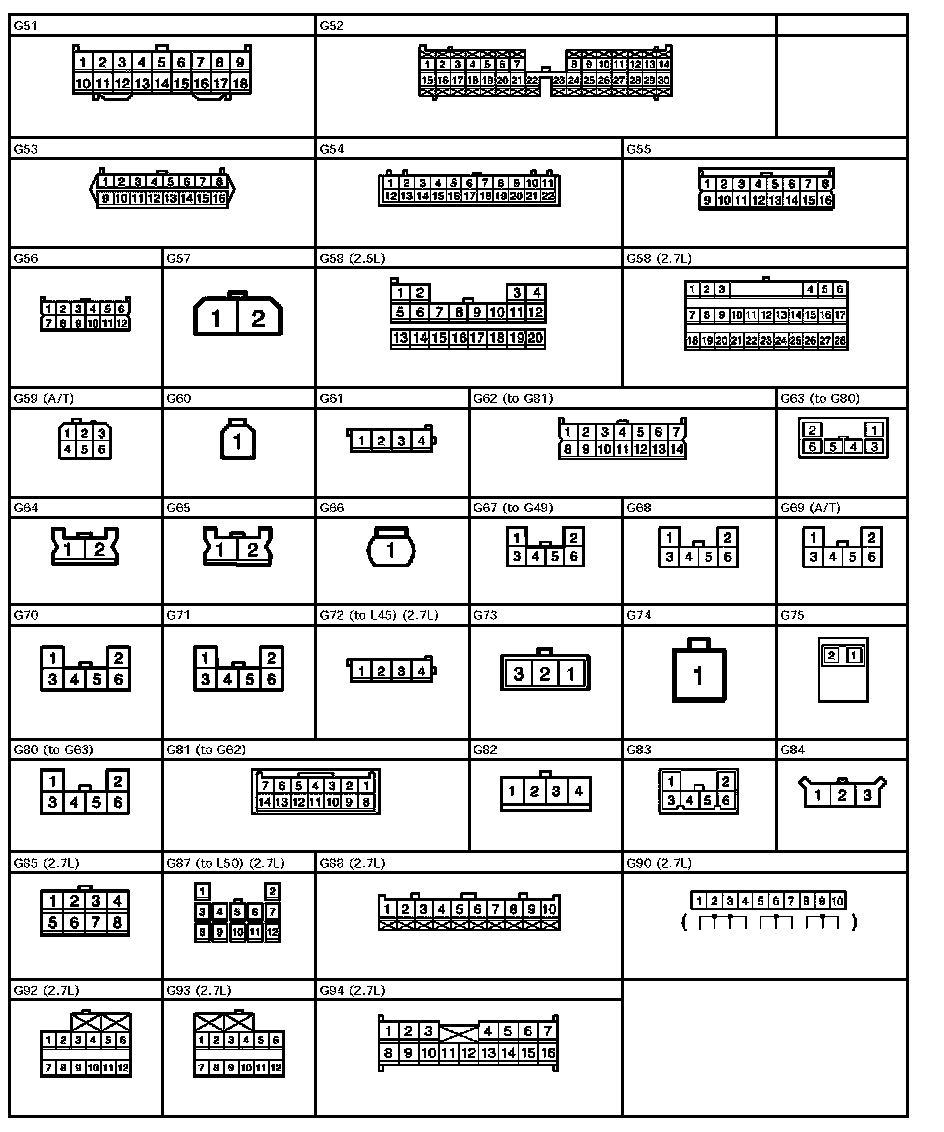

G51 - G94:
