Suzuki Truck
>>
2005
>>
XL-7 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
K Connector
K Connector

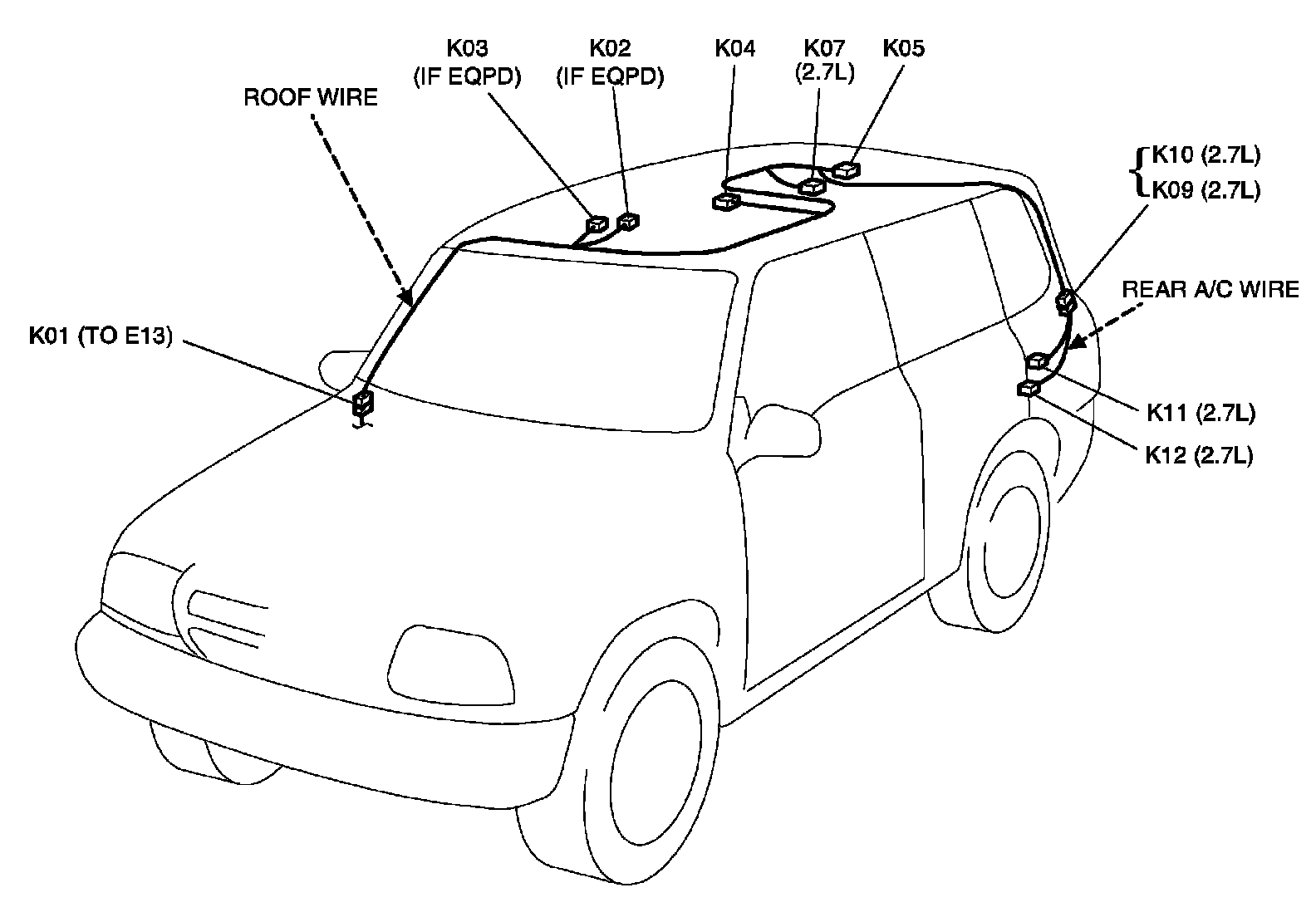

K: Roof Wire And Rear A/C Wire View:

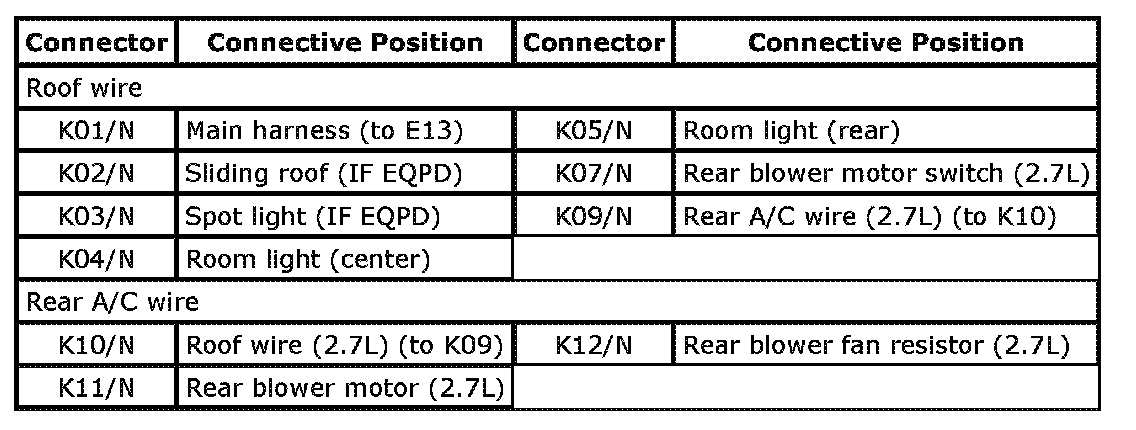

K: Roof Wire And Rear A/C Wire Index:
