O Connector
O Connector

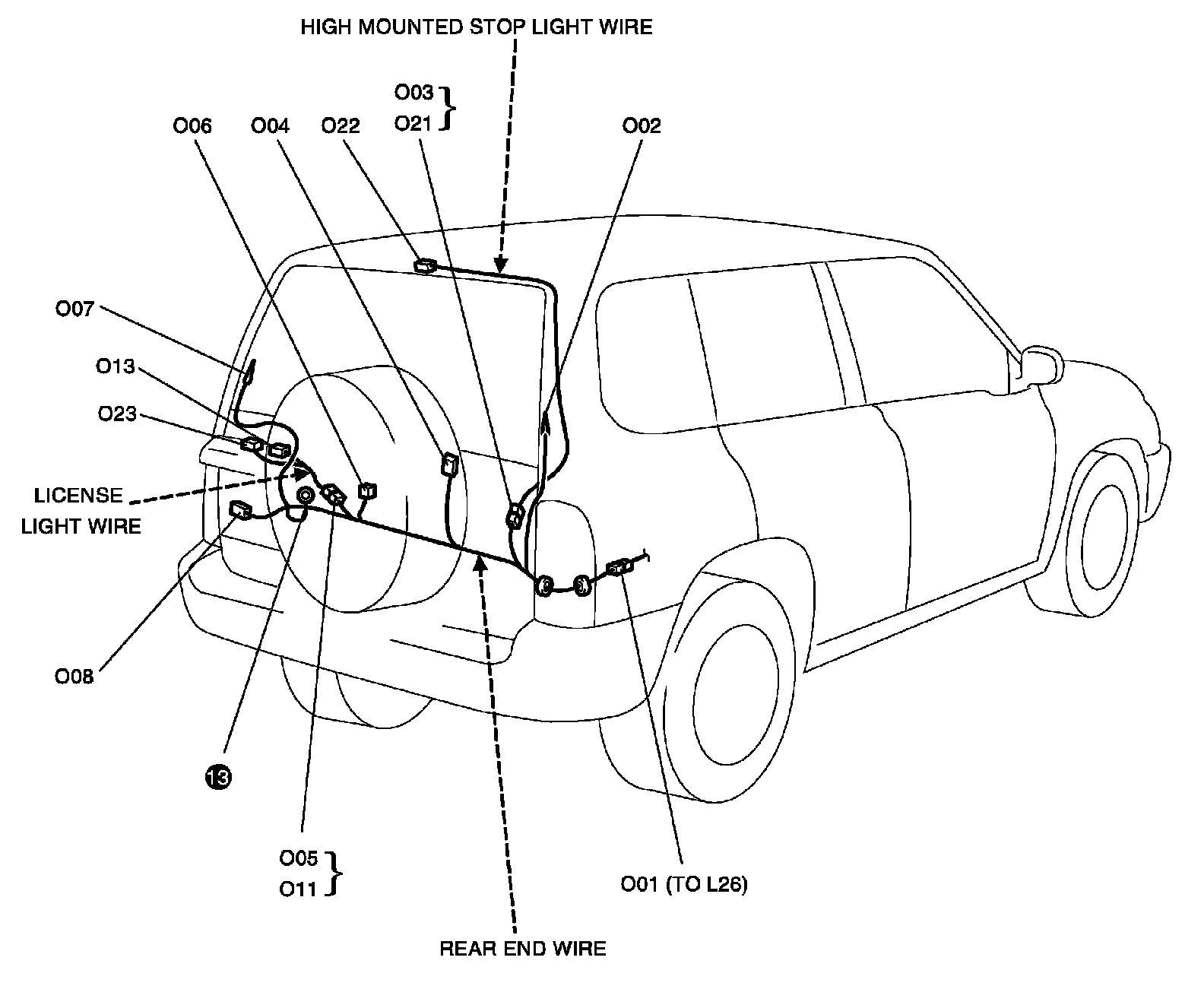

O: Rear End Wire, License Light Wire And High Mounted Stop Light Wire View:

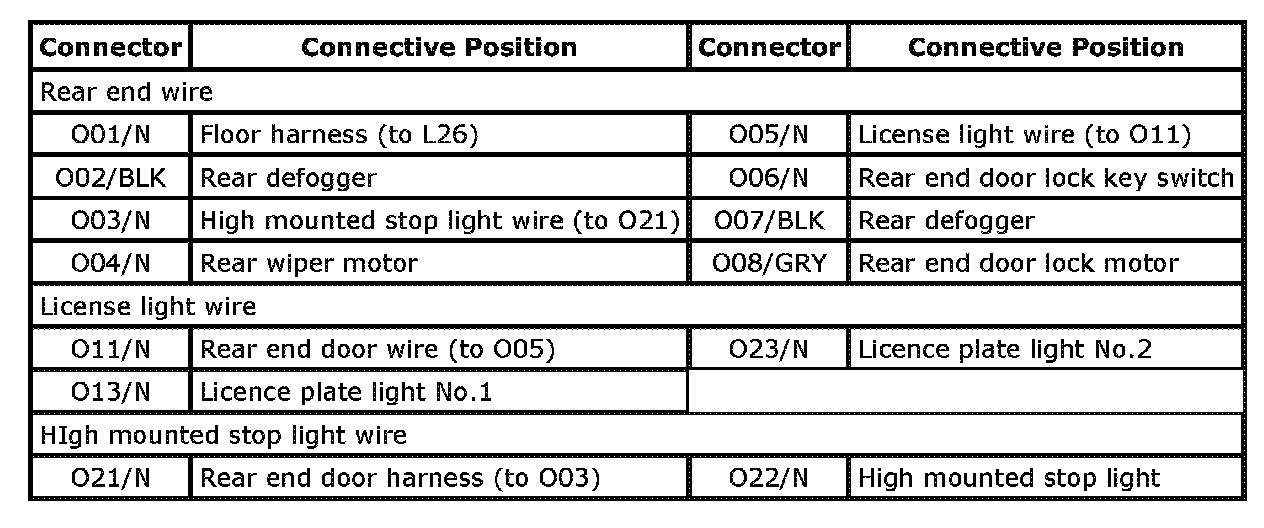

O: Rear End Wire, License Light Wire And High Mounted Stop Light Wire Index:
