D Connector

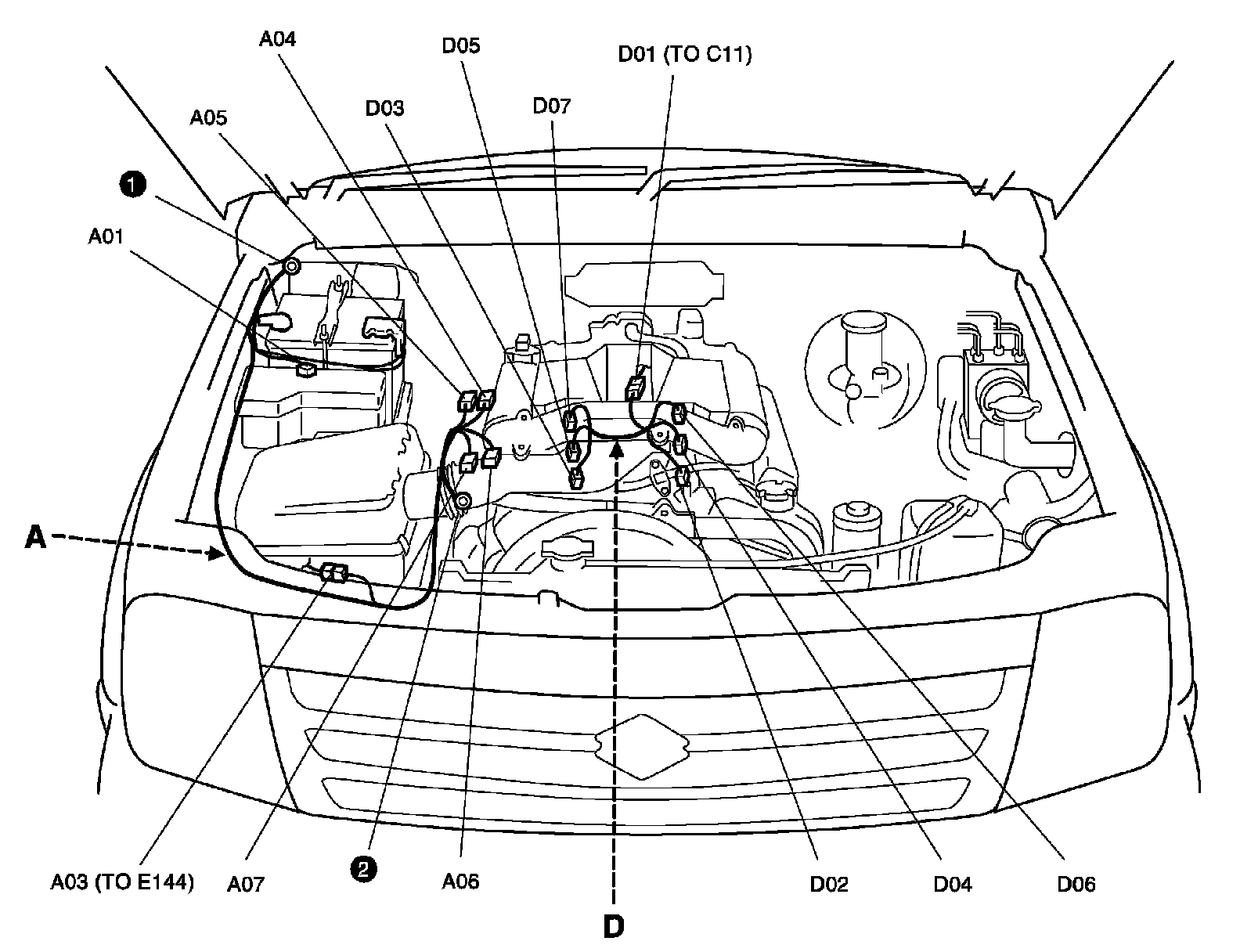

A: Battery cable / D: Injector harness View:

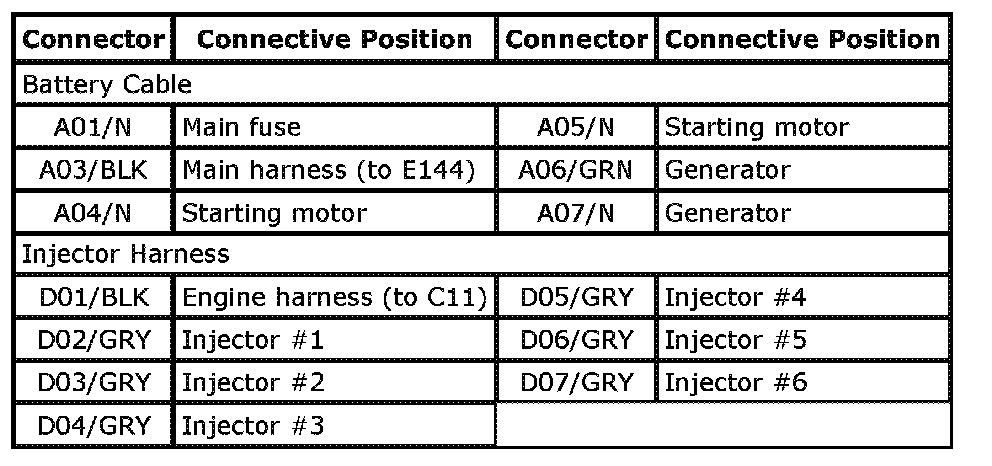

A: Battery cable / D: Injector harness Index:
