Suzuki Truck
>>
2005
>>
XL-7 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
G Connector
G Connector

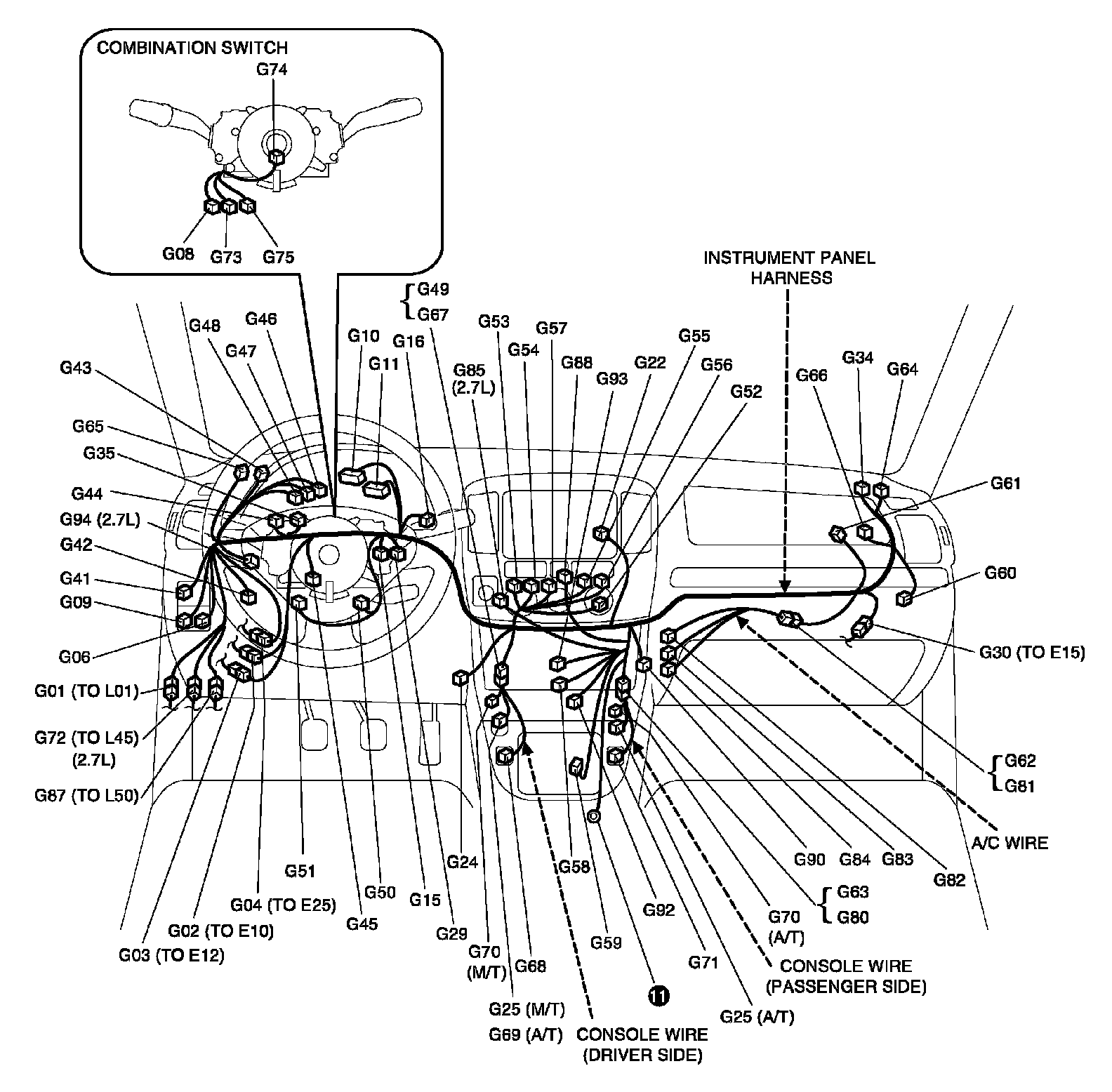

G: Instrument Panel Harness, Console Wire, A/C Wire And Combination Switch View:

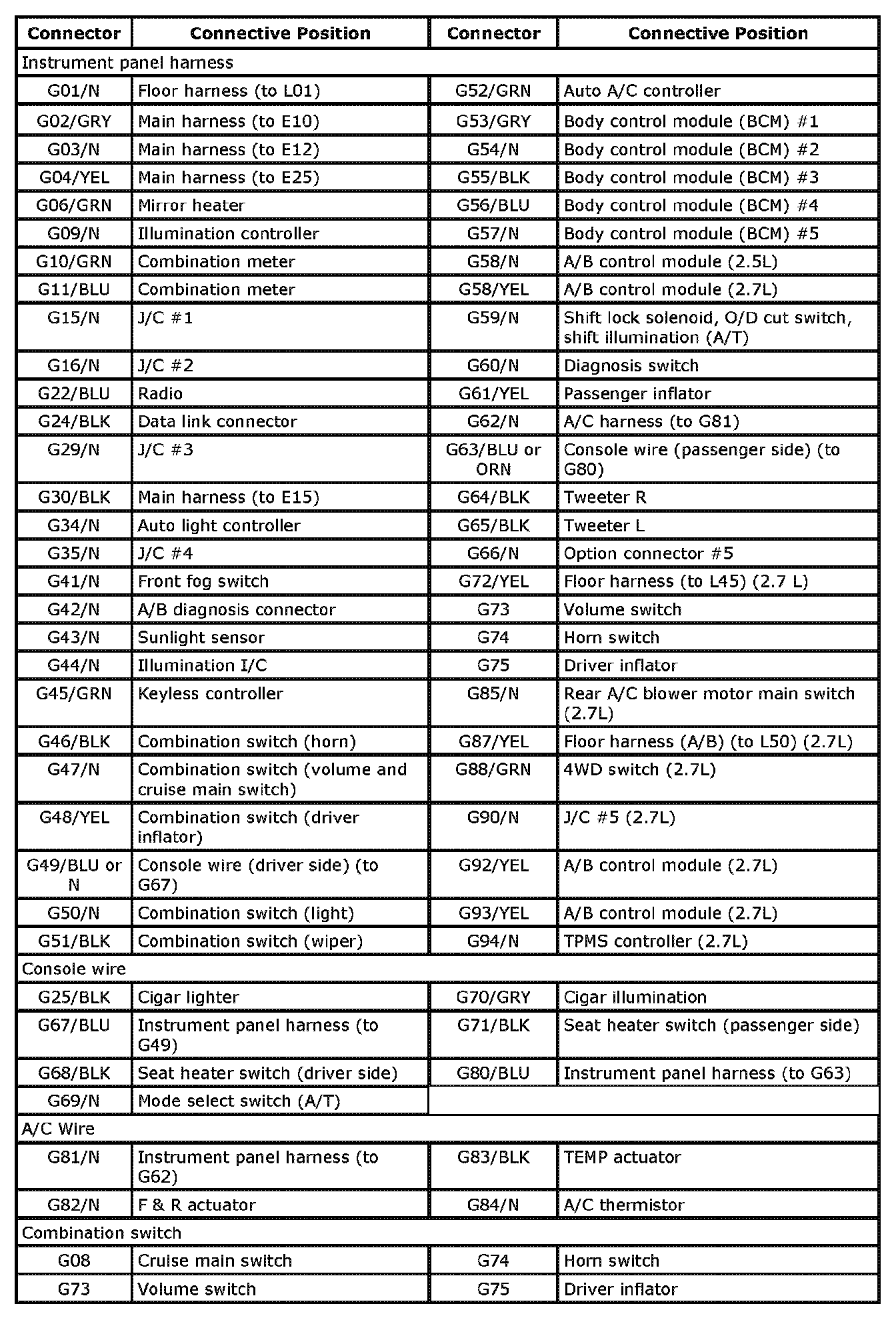

G: Instrument Panel Harness, Console Wire, A/C Wire And Combination Switch Index:
