J Connector

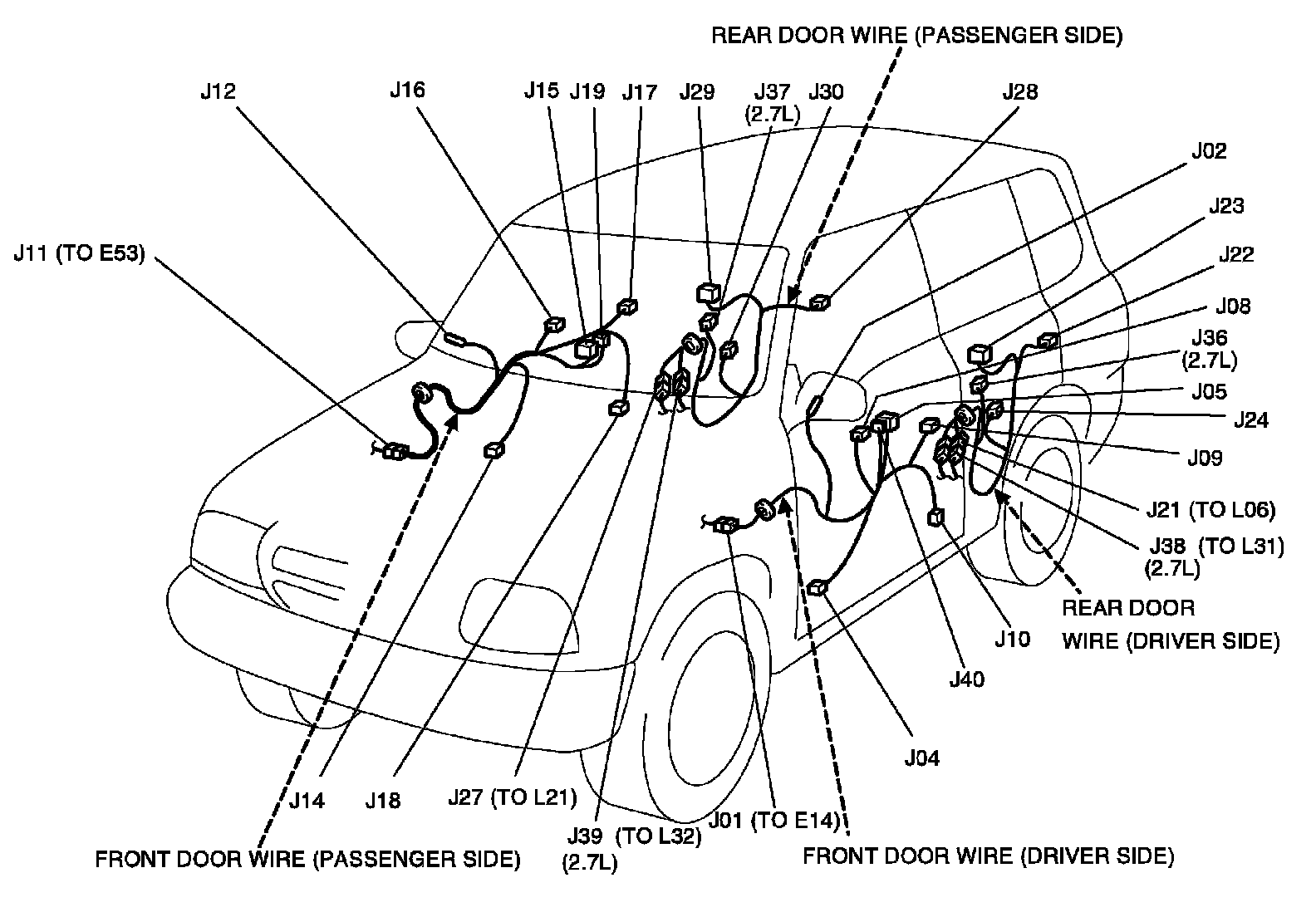

J: Front Door Wire And Rear Door Wire View:

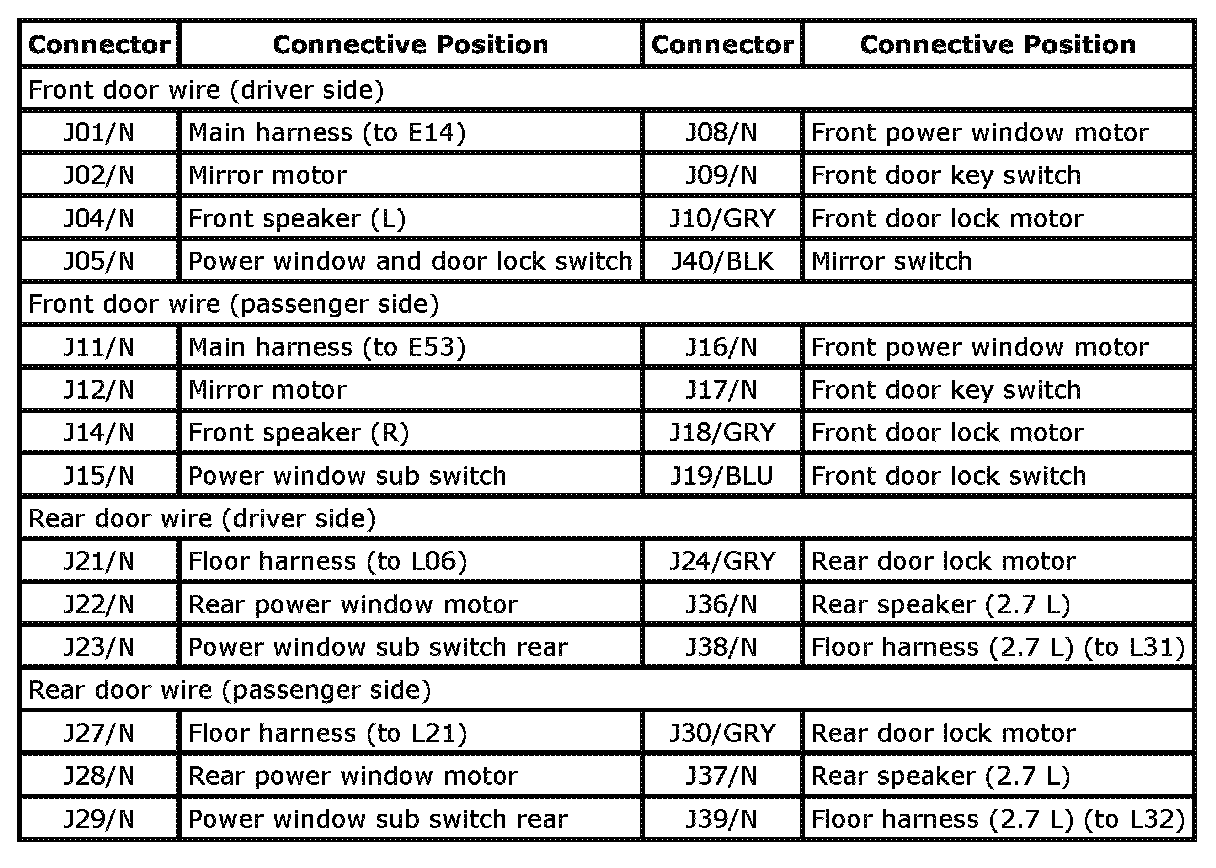

J: Front Door Wire And Rear Door Wire Index:
