Locations
>>
Connector Locations
>>
L Connector
L Connector

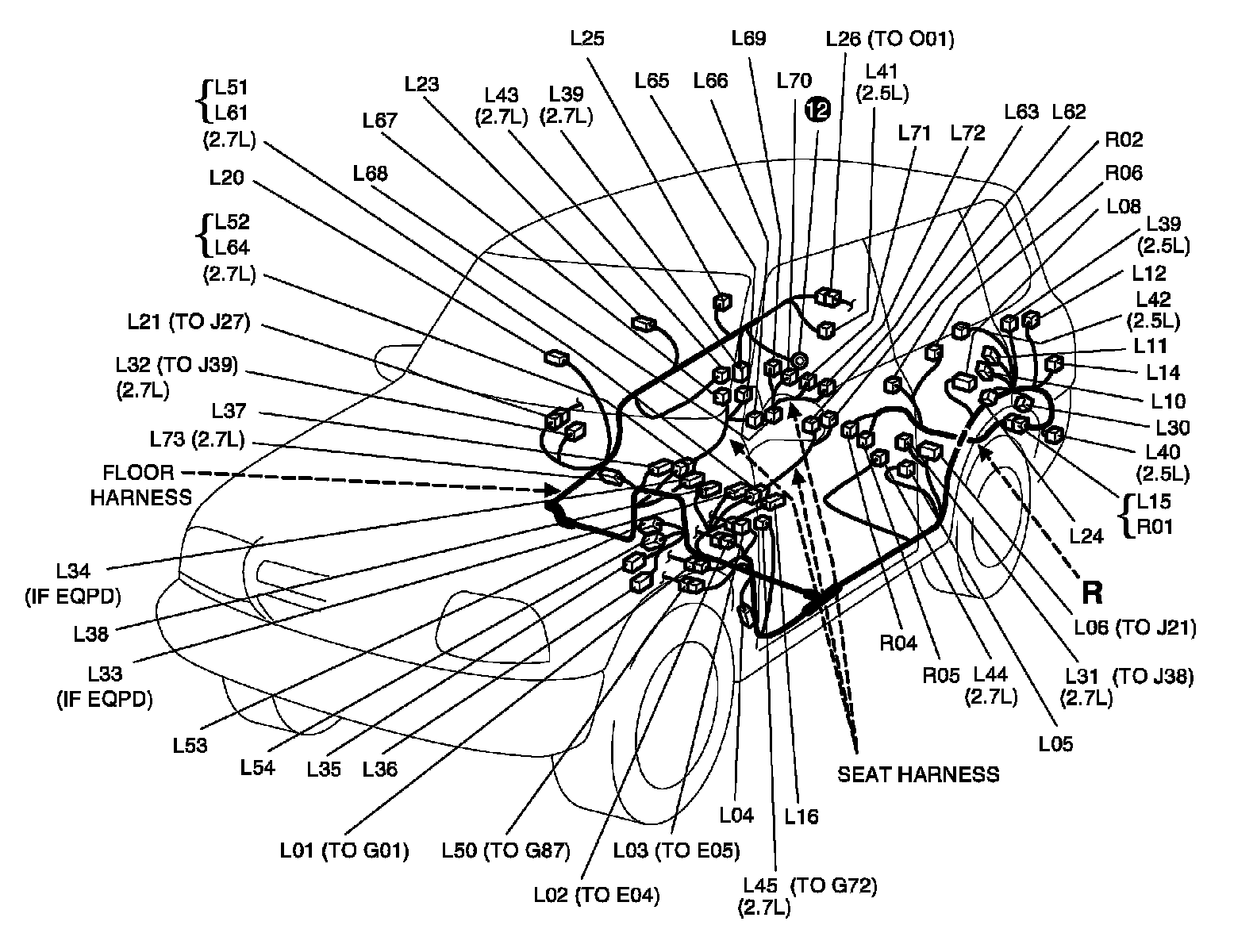

L: Floor Harness And Seat Harness / R: Fuel Pump Wire View:

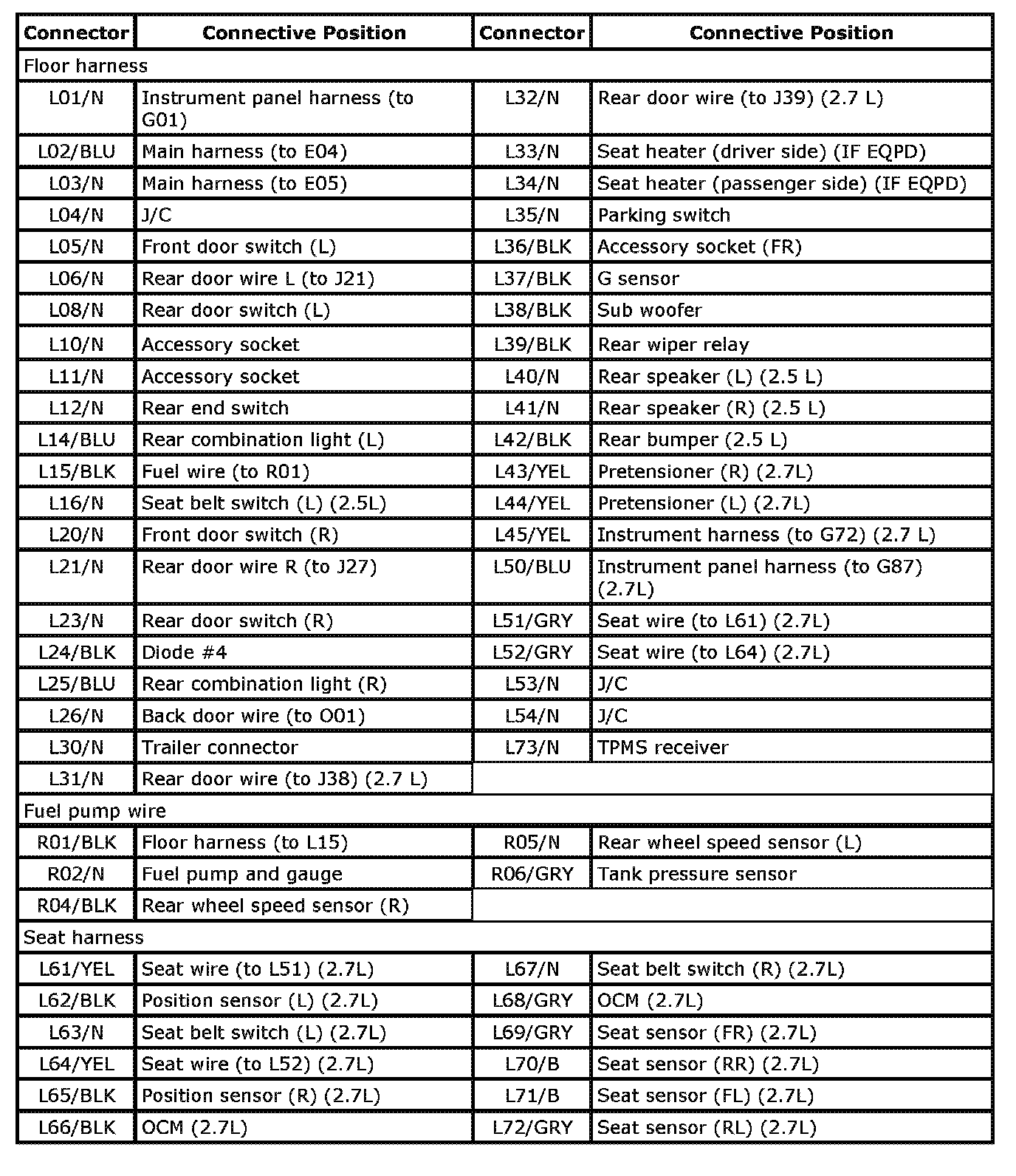

L: Floor Harness And Seat Harness / R: Fuel Pump Wire Index:
