Home >> Suzuki Truck >> 2006 >> XL-7 2WD V6-2.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seats

Seats

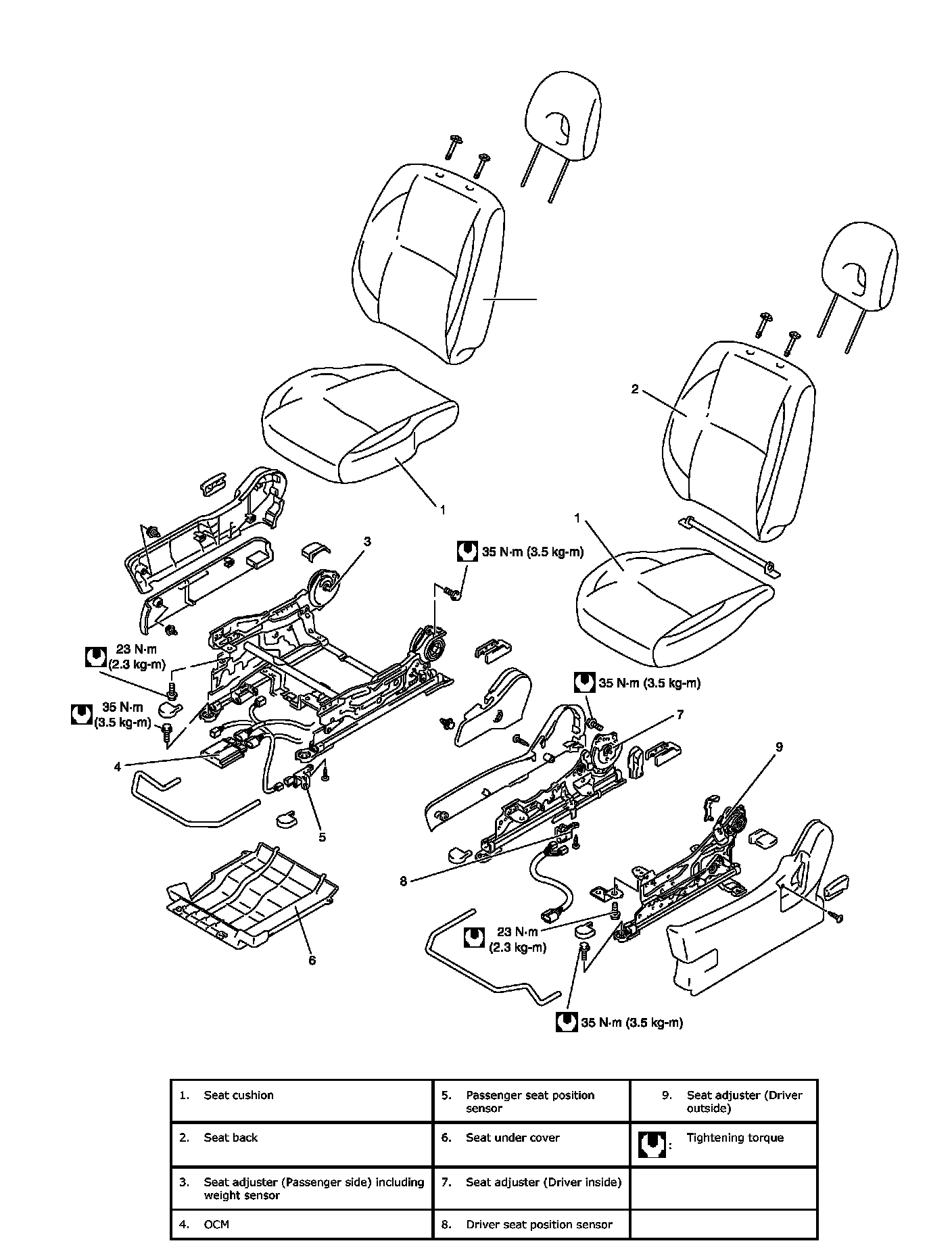

Front Seat Components:

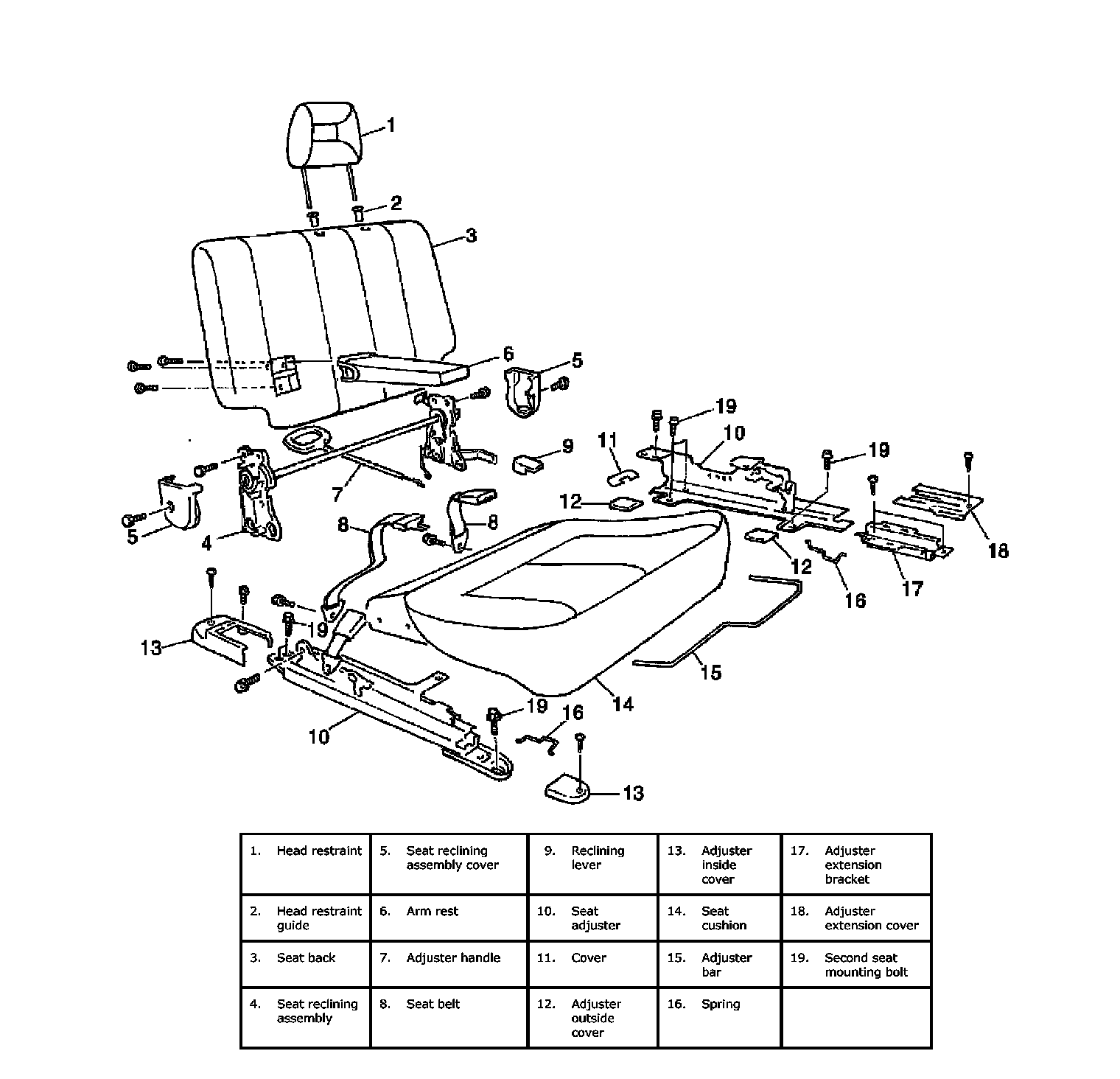

Second Seat Components:

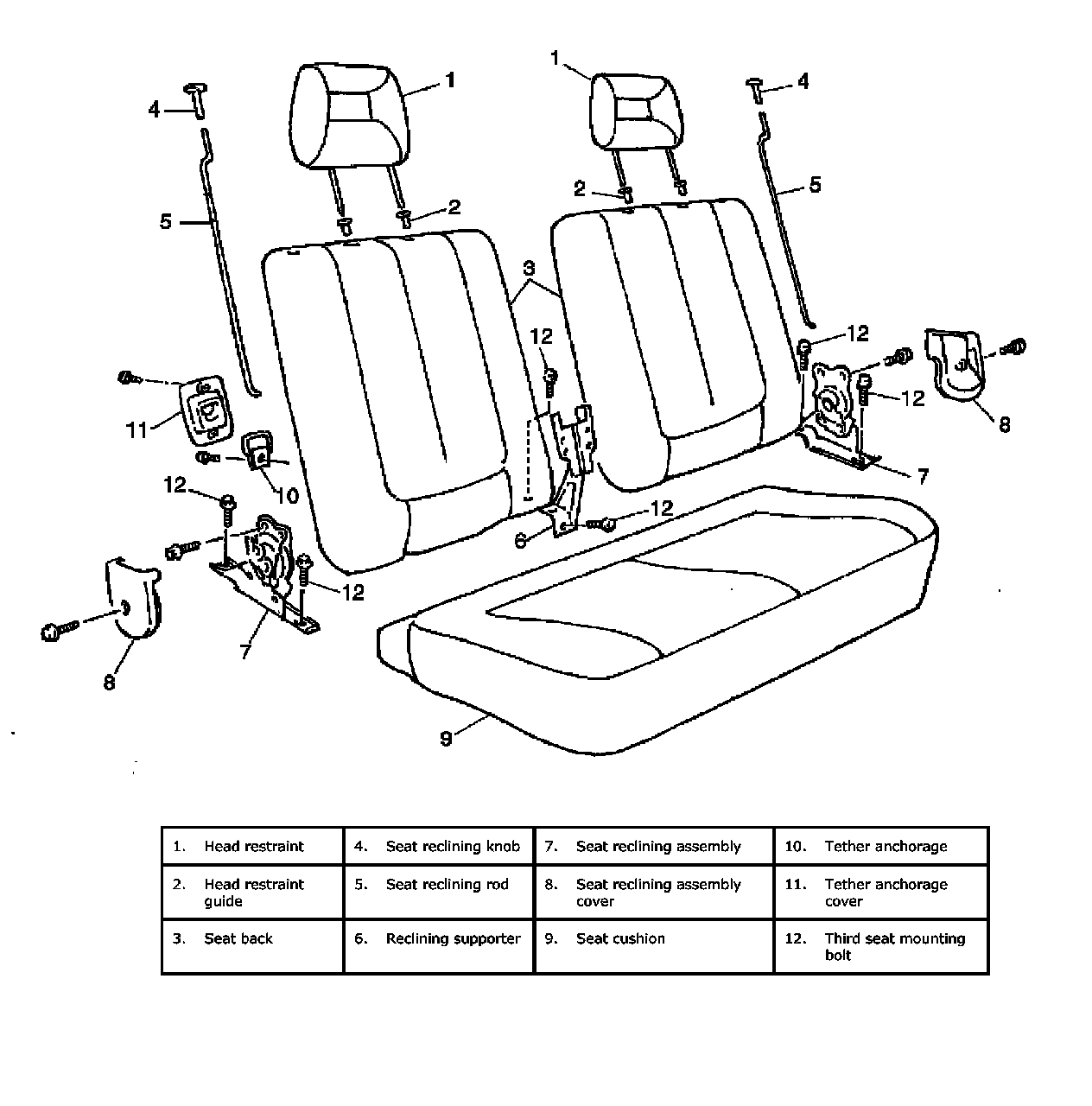

Third Seat Components:
