Steering/Suspension - Revised Alignment Specifications
GRAND VITARASection Title: Suspension
TSB No. TS 02 01153R
Division: Automotive
Category: Technical
SUBJECT:
SERVICE MANUAL UPDATE: FRONT AND REAR WHEEL ALIGNMENT
SPECIFICATION CHANGE
MODEL(S):
GRAND VITARA (JB627)
YEAR:
2007~2008
CONDITION:

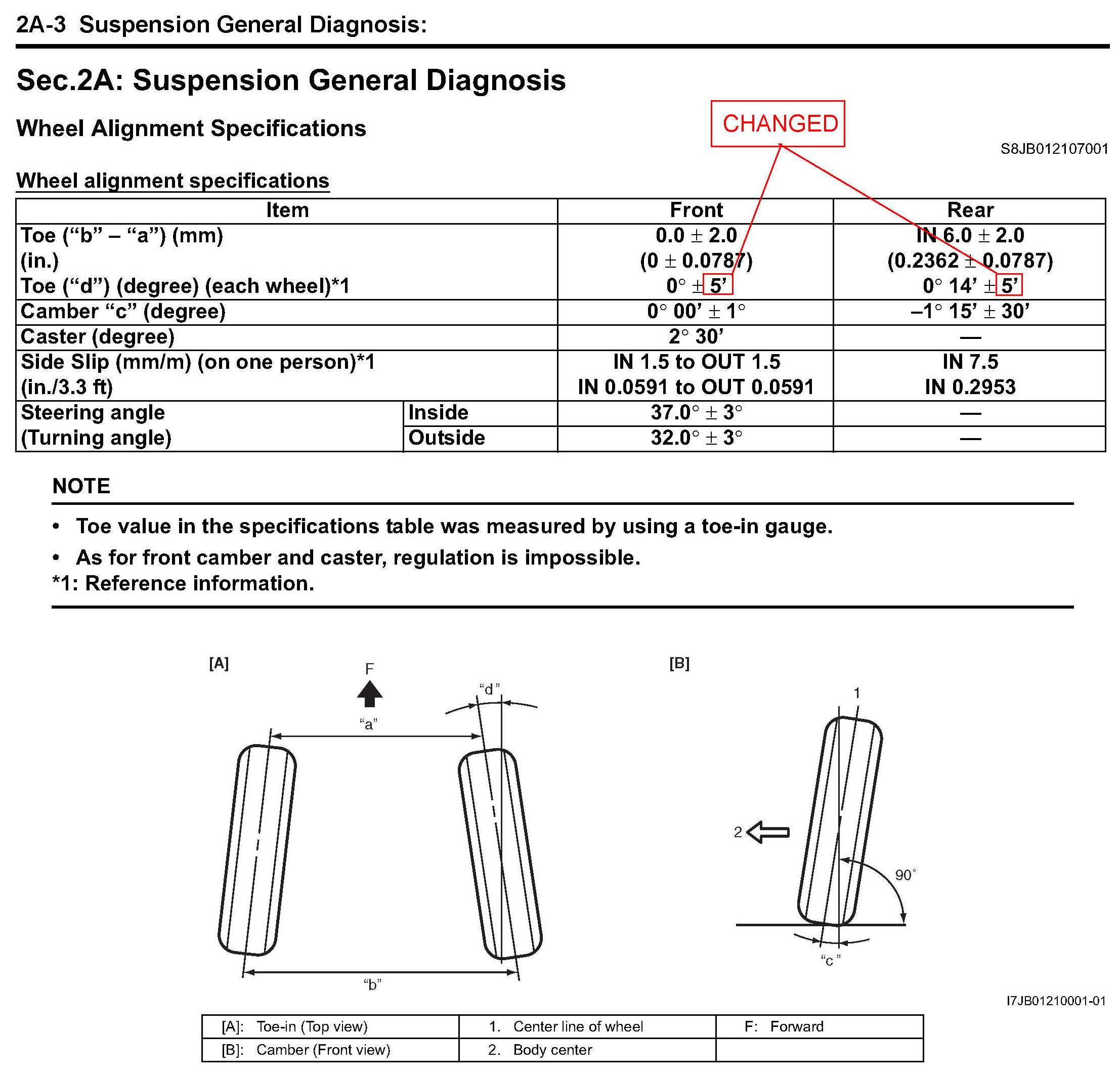

Front and rear wheel alignment toe tolerance specification for each wheel has been changed.
CAUSE:
Tolerance change.
CORRECTION:
Please update your Service Manual according to the sheets.

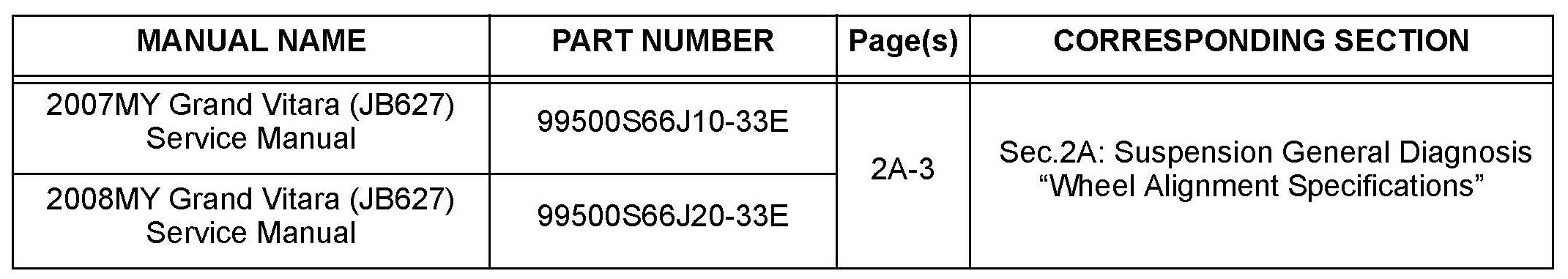

AFFECTED SERVICE MANUAL(S):
NOTE:
These updates will be reflected in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
