Keyless Start Control Module Power and Ground Circuit Check
Keyless Start Control Module Power and Ground Circuit Check
Keyless Start Control Module
Power and Ground Circuit Check

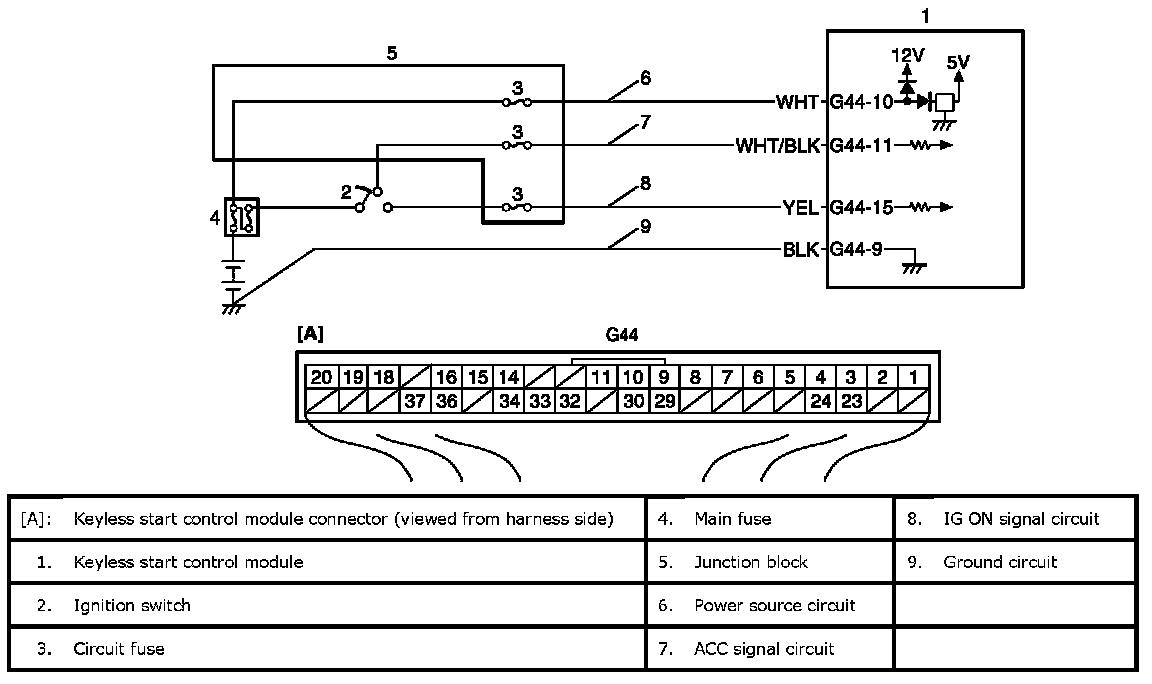

Wiring Diagram:
Wiring Diagram

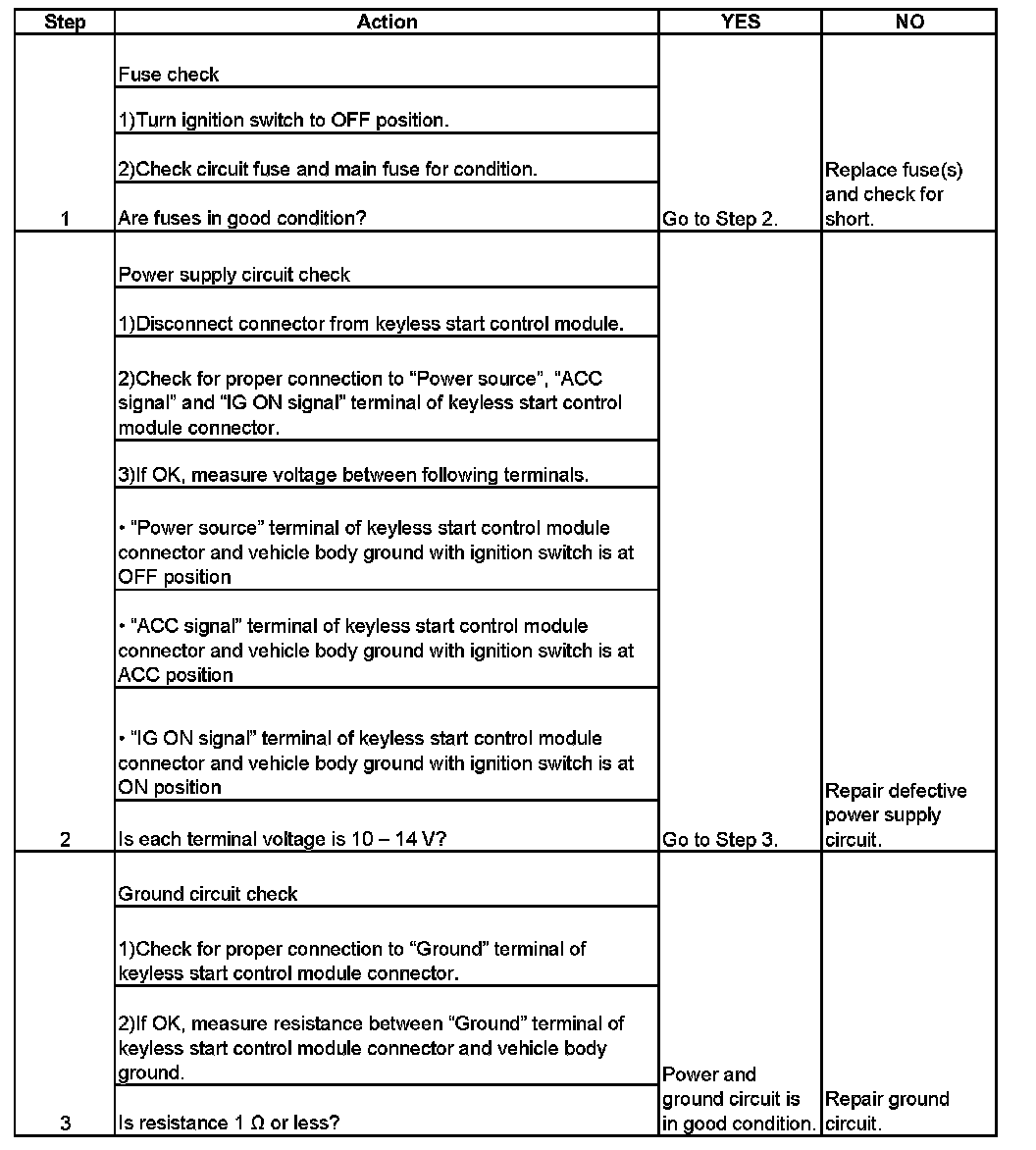

Step 1-3:
Troubleshooting
