Discharge Air Temperature Sensor / Switch, HVAC

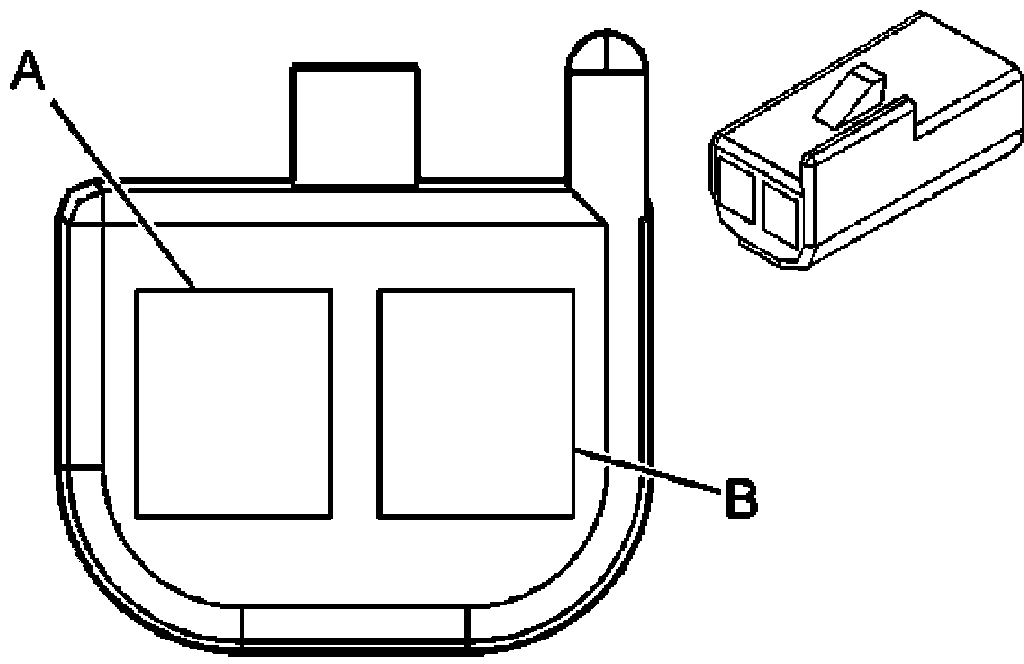

Air Temperature Sensor - Lower






Connector Part Information
OEM: 15380927
Service: See Catalog
Description: 2-Way F Timer Micro II Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

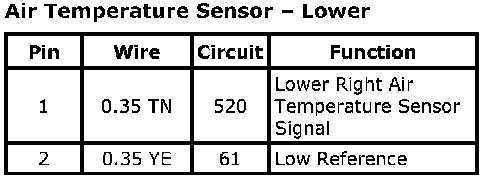

Air Temperature Sensor - Lower:

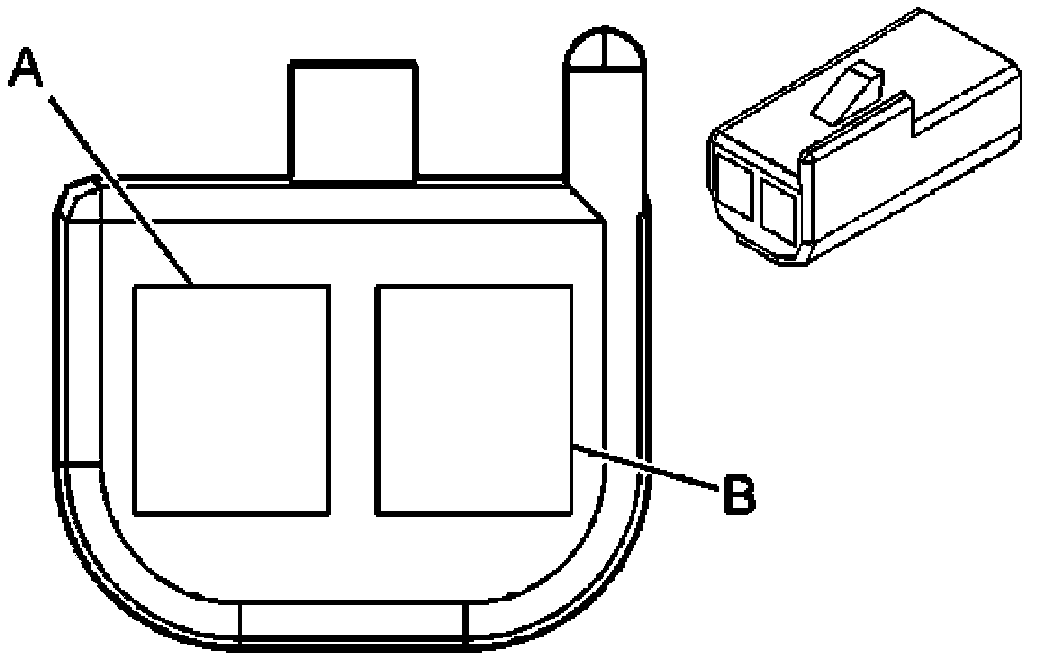

Air Temperature Sensor - Upper






Connector Part Information
OEM: 15380927
Service: See Catalog
Description: 2-Way F Timer Micro II Series (BK)

Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

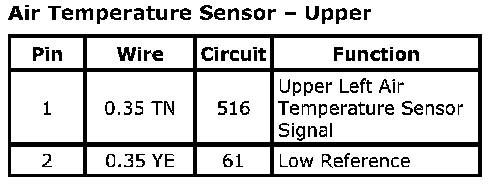

Air Temperature Sensor - Upper:
